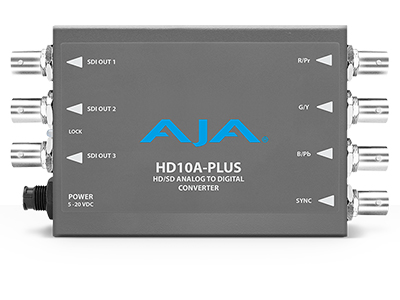

AJA HD Analog to HD-SDI Converter

Code: BLO/AJA-HD10A-Plus

The HD10A-Plus is a miniature, high-quality, 10-bit analog to digital converter for HD workflows. The HD10A-Plus can add an HD or SD SDI output to cameras, VTRs, or other analog-only equipment, even computers with HD RGB graphics. The HD10A-Plus accepts HD YPbPr or RGB analog and outputs three duplicate SDI signals. Works in 1080i, 1035i, 1080psf, and 720p with internal or external sync (tri-level). The HD10A-Plus also includes SD mode support for PAL and NTSC needs.

For purchasing information

Overview

The HD10A-Plus is a miniature, high-quality, 10-bit analog to digital converter for HD workflows. The HD10A-Plus can add an HD or SD SDI output to cameras, VTRs, or other analog-only equipment, even computers with HD RGB graphics. The HD10A-Plus accepts HD YPbPr or RGB analog and outputs three duplicate SDI signals. Works in 1080i, 1035i, 1080psf, and 720p with internal or external sync (tri-level). The HD10A-Plus also includes SD mode support for PAL and NTSC needs.

Features

Low Cost, High Quality, 10-bit HDTV A/D Conversion
Full Bandwidth Component HD RGB or YPbPr Input
3 HD-SDI Outputs
Multi-Standard
SD mode support
Internal or External Sync
Easy-access DIP switch configuration
Low power, compact size
Uses 5-20VDC power (DWP-U-R1 universal power supply included)
five year warranty
