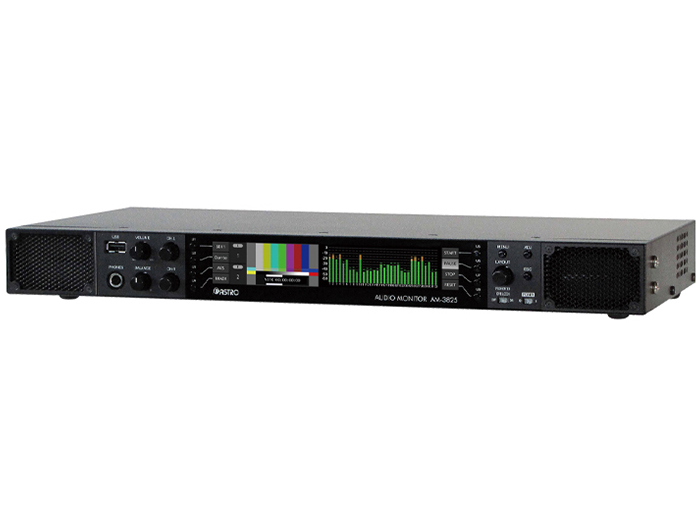

Astro 12G-SDI Audio Monitor

Code: AST/AM-3825

AM-3825 is an audio monitor that separates the embedded audio of 12G, 6G, 3G, HD, and SD-SDI signals from the video signals, and monitors audio with the use of the built-in speakers or headphones.

For purchasing information

Enquire Now

AM-3825 is an audio monitor that separates the embedded audio of 12G, 6G, 3G, HD, and SD-SDI signals from the video signals, and monitors audio with the use of the built-in speakers or headphones.

It is equipped with a wide variety of audio input and output interfaces, including AES, MADI, Dante (ST 2110-30 compatible), and analog.

Key Features

  • Wide variety of supported video formats
  • Wide variety of audio input/output interfaces
  • Loudness measurement function
  • Free remapping of input audio to output audio (excluding main unit speakers and SDI output)
  • Simultaneous monitoring of up to 32 channels of audio
  • L/R speakers as standard feature
  • LCD display with superior visibility
  • Preset function
  • User button function
  • Downmix function
  • GPIO remote control function
  • Alarm output function to external devices
  • Space-saving housing
  • AC power supply compatible
SDI I/O
12G-SDI SDI I/O
Embedded Audio		 SMPTE ST 2082
SMPTE 299M（Sampling frequency 48kHz synchronous/asynchronous audio）
6G-SDI SDI I/O
Embedded Audio		 SMPTE ST 2081
SMPTE 299M（Sampling frequency 48kHz synchronous/asynchronous audio）
3G-SDI SDI I/O
Embedded Audio		 SMPTE 424M
SMPTE 299M（Sampling frequency 48kHz synchronous/asynchronous audio）
HD-SDI SDI I/O
Embedded Audio		 BTA S-004B、SMPTE 292M
SMPTE 299M（Sampling frequency 48kHz synchronous/asynchronous audio）
SD-SDI SDI I/O
Embedded Audio		 SMPTE 259M
SMPTE 272M（Sampling frequency 48kHz synchronous audio）
I/F
AES3id Input

Standard：Unbalanced AES, Bit：24bit　PCM,
Sampling Frequency：48kHz、Impedance：75Ω
AES3id Output Standard：Unbanlanced AES, Sampling Frequency：48kHz, Impedance：75Ω
8ch Analog Balanced Input Input specified level：+4dBu（1.23 V（RMS））　*Fixed at -20dBFS (specified level)
Input maximum non-clip level：+24dBu（12.28 V（RMS））
Input Impedance：10kΩ or more or 600Ω switching
8ch Analog Balanced Output Output specified level：+4dBu（1.23 V（RMS））*Fixed at -20dBFS (specified level)
Output maximum non-clip level: +24 dBu (12.28 V (RMS))
Output impedance: 150 Ω, compatible load impedance: 600 Ω
MADI Input Sampling Frequency：48kHz, Bit：24bit, PCM：64ch, Impedance：75Ω
MADI Output Sampling Frequency：48kHz, Bit：24bit, PCM：64ch, Impedance：75Ω
Dante Input Sampling Frequency：48kHz, Bit：24bit, PCM：64ch
SMPTE ST 2110-30
Redundant connection using Primary/Secondary ports or multiple connections by daisy-chaining is available.
Dante Output Sampling Frequency：48kHz, Bit：24bit, PCM：64ch
SMPTE ST 2110-30
TIMECODE LTC
Control GPI
LAN 10/100BASE-T
General Specifications
Power Consumption AC100-240V（50/60Hz）
Power Requirements 40W (MAX)
Operating Temperature Range 0 to 40℃
Operating Humidity Range 30 to 80％RH（0～40℃  No Condensation)
Dimensions 430（W）×44（H）×205（D）mm (Excluding Protrusions)
Weight 3.6 ㎏
LED Panel Specifications
Type a-Si TFT
Display Color 16,777,000 colors
Contrast 800：1（typ）
Response Speed 25ms（MAX：White90％→Black10％+MAX：Black10％→White90％）
Viewing Angle

160˚(U/D) 160˚(L/R)
Brightness 900cd/㎡（typ）
Size 6.6 inch
Resolution 1440（H）×240（V）Pixels
Pixel Pitch 0.114（H）×0.114（V）mm
