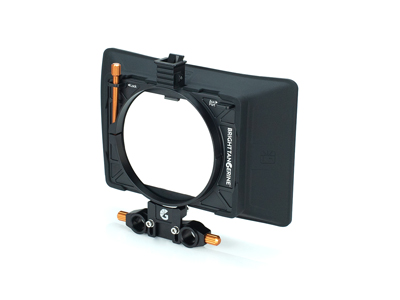

Misfit Atom Clamp 15mm LWS Kit comprises of a 4" x 5.65" / 4" x 4" Matte box, 114mm Clamp, Shade, A.R.F Bracket and 15mm LWS Bracket
The Misfit Atom core is designed to push the definition of a lightweight matte box and was specifically conceived for Gimbal and Steadicam use and it is incredibly strong and light.
The frame itself weighs in at 98 grams and adding the shade brings it up to about 195 grams. The frame can hold up to 2 PV or 4x4 filters or a combination of both.
It is designed to fit 114mm lenses, and can work with smaller lenses using our range of Misfit adapters.
The A.R.F bracket allows you to tilt the filters by 6 degrees to get rid of unwanted reflections and give you total flare control.
Despite being super compact, it features incredible field of view covering up to a 14mm Cooke with 3 PV stages and also works with RED Pro Zooms at 5K!
The 15mm LWS bracket allows you to attach your matte box on light weight studio rods s to give you more flexibility in setting up your rig
The Misfit Atom Clamp Kit is built from precision cut and hard anodized aluminium, elasto polymer and stainless steel.
