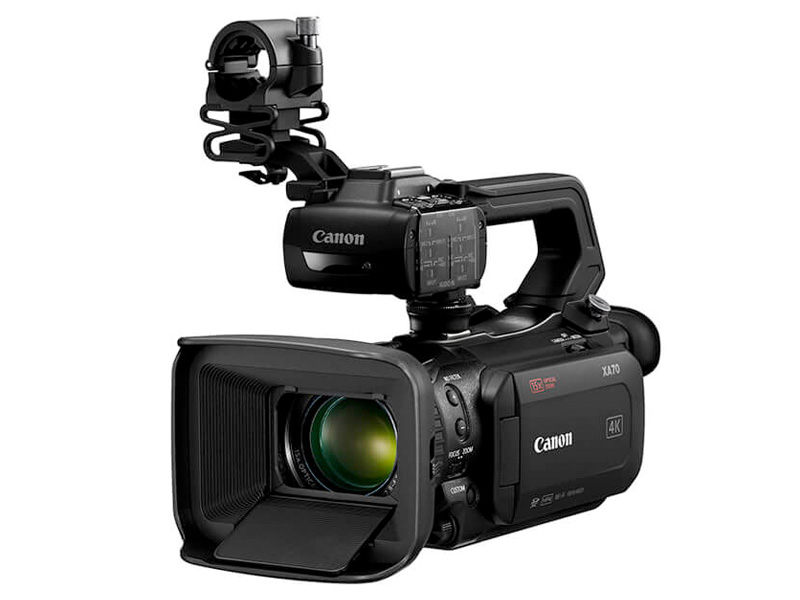

Canon XA70 Professional Camcorder

Code: CAN/XA70

DIGIC DV 6 high-performance video processing platform enables 4K 30p 4:2:0 8bit shooting and output

For purchasing information

Enquire Now

Overview
Specifications

Slow and fast recording

Slow & fast motion recording featuring interval recording at maximum 1200x normal speed.

Touch AF & Face Detection

The touch panel enables smooth operation of Dual Pixel CMOS AF.

Excellent image quality

The professional XA70 features a 1.0 inch CMOS sensor and supports 4K UHD 25P recording with a wide 25.5mm angle of view as well as 15x optical zoom. Take your output one step further with the independent built-in 3-density ND filter.

USB Video Class (UVC) support

Simply connect the camera with a USB cable, and the computer can recognize it as a webcam.

Specifications

Imaging

Sensor Resolution	Actual: 13.4 Megapixel (4268 x 3148) Effective: 8.29 Megapixel (3840 x 2160)
Sensor Type	1"-Type CMOS Sensor
Image Stabilization	Optical in Integrated Lens Digital
Built-In ND Filter	Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters
Capture Type	Stills & Video

Exposure Control

Shutter Speed	1/2000 to 1 Second
Minimum Illumination	1.7 Lux at 1/30 Shutter Speed 0.1 Lux at 1/2 Shutter Speed
White Balance	2000 to 15,000K

Lens

Focal Length	8.3 to 124.5mm (35mm Equivalent Focal Length: 25.5 to 382.5mm)
Optical Zoom Ratio	15x
Maximum Aperture	f/2.8 to 4.5
Minimum Focus Distance	Wide: 0.4" / 1.0 cm Entire Zoom Range: 23.6" / 60.0 cm
Filter Size	58 mm
Focus Control	Autofocus Manual Focus
Internal Recording Modes	H.264/MP4 4:2:0 8-Bit 3840 x 2160 at 23.98/24.00/29.97 fps 1920 x 1080p at 23.98/24.00/29.97/59.94 fps [35 to 45 Mb/s] 1280 x 720 at 59.94 fps [8 Mb/s] XF-AVC 4:2:0 8-Bit 3840 x 2160 at 23.98/24.00/29.97 fps 1920 x 1080p at 23.98/24.00/29.97/59.94 fps
Recording Limit	Up to 2120 Minutes
Broadcast Output	NTSC
Built-In Microphone Type	Stereo
Audio Recording	MP4: 2-Channel 16-Bit AAC Audio MP4: 4-Channel 16-Bit LPCM Audio XAVC: 4-Channel 24-Bit LPCM Audio
IP Streaming	None

Interface

Media/Memory Card Slot	Dual Slot: SD/SDHC/SDXC (UHS-I)
Video I/O	1 x Mini-HDMI 2.0 Output
Audio I/O	2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input 1 x 1/8" / 3.5 mm TRS Stereo Headphone Input 1 x 1/8" / 3.5 mm TRS Stereo Microphone Input
Power I/O	1 x USB-C Input
Other I/O	1 x USB-C Output
Wireless	None
Global Positioning (GPS, GLONASS, etc.)	None

Monitor

Size	3.5"
Resolution	2,760,000 Dot
Display Type	Articulating Touchscreen LCD

Viewfinder

Type	Built-In Electronic (LCD)
Size	0.36"
Resolution	1,770,000 Dot

Focus

Focus Type	Auto and Manual Focus
Focus Mode	Automatic, Manual Focus

Environmental

Operating Temperature	32 to 72°F / 0 to 40°C (Recommended)
Storage Temperature	23 to 113°F / -5 to 45°C
Operating Humidity	85%
Storage Humidity	60%

General

Battery Type	Canon BP-8 Series
Power Consumption	5.3 W
Tripod Mounting Thread	1/4"-20 Female
Accessory Mount	1 x Cold Shoe Mount
Dimensions (W x H x D)	8.4 x 4.3 x 3.6" / 21.3 x 10.9 x 9.1 cm
Weight	2.2 lb / 985 g (Body Only) 3.2 lb / 1460 g (With Battery, Handle, Recording Media)
