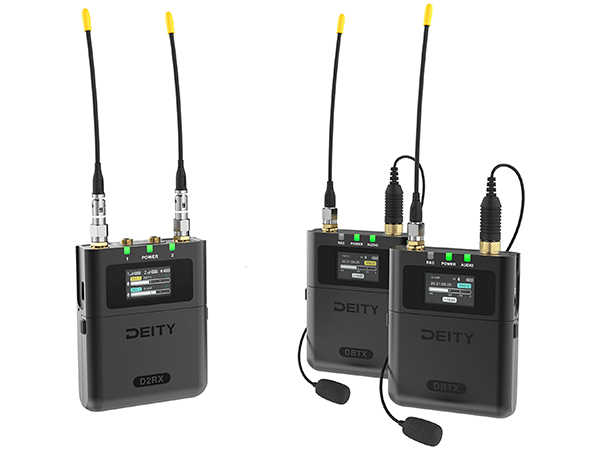

Deity Theos Digital Wireless Microphone System (550-663 MHz)

Code: KAY/09.DTU0253D59
$1,850.00

The Deity Theos is an advanced, fully digital wireless microphone system designed to provide a fast, stress-free, remote-controlled workflow and dependable performance for filmmakers, videographers, and serious content creators looking to record two on-camera personalities at the same time.

ENQUIRE NOW

Got a question about this product?
Send us a message

Special Order Item

Usually ships in 2-4 weeks

Request ETA

As a filmmaker, one of the most important aspects of your work is sound. There is nothing more frustrating than discovering that your audio is unusable due to interference, dropped signals or other issues. This is where the Deity Theos Digital Wireless Microphone System comes in. This state-of-the-art system is designed to make your audio recording process seamless and stress-free.

Key Features

  • Dual Channel Receiver
  • Wideband Digital UHF spectrum; 550-960 MHz*
  • Built-in 32-bit float recorder in the transmitter
  • Recordings are saved to a Micro SD card; up to 128Gb
  • Can wirelessly sync timecode from the Deity TC-1 timecode generator
  • Both the transmitter and receiver can be remotely controlled via the Sidus Audio™ app
  • Up to 14hrs of battery life with lithium batteries
  • Full-color LCD screen
  • CNC-milled aluminum chassis
  • SMA antenna ports
  • *actual frequency band size will be limited to local laws

WIDEBAND UHF SPECTRUM

One of the standout features of the Deity Theos Digital Wireless Microphone System is its use of a wideband UHF spectrum rather than the crowded 2.4Ghz band. Frequencies span between 550-960 MHz.*

Theos Digital Wireless also features swappable frequency ranges based on your phone’s GPS / Firmware Update. Now you can travel the world with one wireless microphone kit.

BUILT-IN RECORDER

The Deity Theos Digital Wireless Microphone System also features a transmitter with a built-in recorder. The onboard recorder features both 24-bit and 32-bit float formats so you never have to worry about gain staging on your backup WAV files. Recordings are saved to a Micro SD card, up to 128Gb in size, providing ample space for your audio recordings.

The built-in recorder features an impressive EIN self-noise of -130dBu (A-weighting, gain at +30dB, 150ohm source impedance). This puts it on par with some of the most expensive audio recorders in the film industry.

WIRELESS TIMECODE SYNC

The Theos’ most unique feature is that the transmitter can be natively synced wirelessly from the Deity TC-1 timecode generator. Timecode ensures your backup WAV files will sync with your master file in post. This feature is especially useful for filmmakers who need to work with multiple cameras or devices. It ensures that your audio and video files are perfectly synced, thus making the editing process much smoother. Alternatively, the DBTX can be synced via the 3.5mm jack if you are using 3rd party timecode generators.

FULL COLOR LCD SCREEN

One of the standout features of the Theos Wireless System is its full-color LCD screen, which displays the status of the device. This screen makes it easy to monitor the system's performance, ensuring that you always have a clear view of your audio levels, battery life, and other critical information. This feature is especially useful for filmmakers who need to work in various locations and lighting conditions.

CNC MILLED ALUMINUM BODY

Both the DBTX and D2RX are made out of 2 blocks of CNC milled Aluminum. The result is a transmitter that only weighs 100 grams (3.5 oz.)

SMA ANTENNA PORTS

Both the DBTX and D2RX come with SMA antenna ports, which allow you to swap out antennas to fine-tune your frequency or replace them if they get damaged. This feature makes transporting your gear more compact in its case, which is especially useful when working on location.

UP TO 14HRS OF BATTERY LIFE

Theos Digital Wireless is capable of getting up to 14Hrs* of battery life when paired with the 3000mAh Deity AA battery.

The D2RX and DBTX are able to be externally powered via their USB-C ports

DBTX BATTERY LIFE

You can expect to get a full day out of your transmitter when running NiMH rechargeables in your transmitter, at max settings.

D2RX BATTERY LIFE

The D2RX will run for nearly 7hrs using rechargeable AA batteries. This makes running the D2RX super affordable for daily use

Specifications
Transmitter
F Modulation Proprietary Digital RF Modulation
RF Power 10mW, 25mW, 50mW, 100mW*
RF Spectrum 550 ~ 940Mhz**
RF Frequency Step 00KHz
RF Spacing 700KHz
Antenna Connector 50 Ω SMA
Dynamic Range 123dB
Distortion <0.5%
Frequency Response 20~20KHz
Low Cut 0FF/75Hz/100Hz/150Hz
Mic Power MIC-3V、MIC-5V, LINE
Mic Connector 3.5mm TRS
Input Gain 0~+30dBV
ADC Bit-Depth 24
ADC Sampling-Rate 8
Dimensions(H x Wx D) 88.45x 65x17.8 mm
Operational Temp -20°C ~ +45°C
Timecode Reader / Generator
Clock Accuracy 0.15 PPM (1 Frame Out in 48 Hours)
Timecode Type LTC(SMPTE)
Timecode Frame-Rates 23.98, 24, 25, 29.97, 29.97DF, 30, 30DF
Internal Recording
Media MicroSD Card (Flash Memory)
File Format .wav BWF
Record Format 4/32bit float
EIN -132dBV (-130dBu) max (A-weighting, gain= 30dB, 150ohm source impedance)
Receiver
RF Frequency Step 00KHz
RF Spacing 700KHz
Antenna Connector 50 Ω SSMA
Sensitivity -95dBm
Latency 6.3ms
Dimensions(H x Wx D) 89.47x66.81x20.06mm
Operational Temp -20°C ~ +45°C
Receiver Audio
Analog Output (x 2)
Dynamic Range 03dB
Distortion <0.5%
DAC Bit-Depth 4
Output Type Mono, Stereo, Headphone
*100mW available only in the USA
