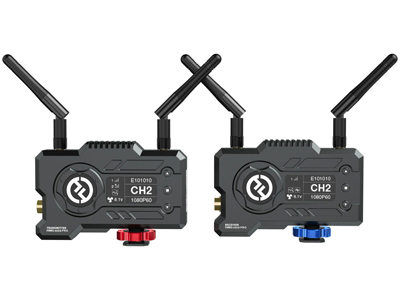

Hollyland Mars 400S Pro SDI/HDMI TX / RX Set

Code: DIS/AAVMARS400S-PRO-AU

$1,049.00

The lightweight Mars 400S PRO features extremely low 0.08s latency with line-of-sight transmission up to 400' to the receiver and up to 300' to the Hollyview Wi-Fi app. The transmitter has HDMI and SDI inputs and the receiver SDI and HDMI outputs.

Add to Cart

Found this item cheaper elsewhere? Let us know

ENQUIRE NOW

Special Order Item

Usually ships in 1-2 weeks

Request ETA

Overview
Specifications

What's In The Box?

1x Transmitter

1x Receiver

5x Antenna

1x DC Adapter

1x User Guide

Using the Hollyview app for iOS or Android, you can monitor your video transmission in real time via a Wi-Fi connection as well as live stream directly from the receiver via your computer using a USB Type-C adapter. The app also allows you to install optional channel scanning firmware enabling you to easily find the strongest transmission signals. The transmitter can simultaneously transmit to up to one receiver and two apps, or to a total of four apps without the receiver. The redesigned body makes it a low-profile choice for your rig, and it features multiple fan modes to keep it cool or quiet when you are shooting.

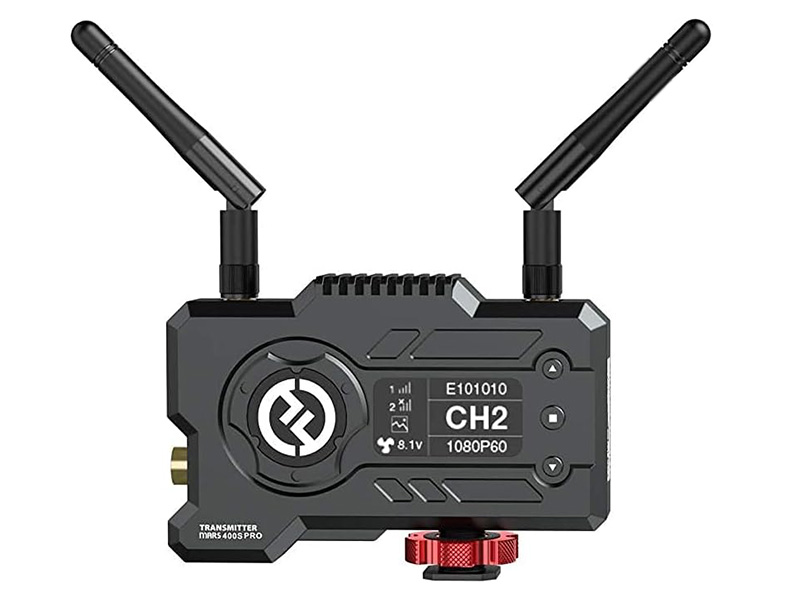

The 400S PRO transmitter and receiver are compact in size, feature a bright OLED display for configuration, and an integrated shoe adapter with a 1/4"-20 mounting thread for different mounting options. Each unit can be powered using a USB Type-C source, the included locking DC power adapter, or by using a separately available L-series type battery using the integrated battery plate.

Features

0.08S Low Latency

400ft Reliable Wireless A&V Transmission with Only 0.08S Latency

Direct Video For Live Stream

Video Feed Straight Out of RX for Live Streaming Without Further Encryption and Decryption via an Video Capture Device

Optimized Monitoring Feed

Data Rate Raised from 8M Bps to 12M Bps for High-Definition Monitoring Quality

Multiple Power Options

5~12V Wide Voltage Power Supply with Type-C Charging Option Added to Various L-Series Batteries and 6~16V DC Power Options

Channel Scan & Firmware Update On App

Optimal Channel A Click Away on RX and the HollyView APP, and Easy & Quick Firmware Update on the App

Wireless
Wireless Range	400' / 121.92 m (Line-of-Sight) 300' / 91.4 m (Line-of-Sight)
Channel Bandwidth	20 MHz
Frequency Range	US: 5 GHz
Latency	0.08 sec
RF Power	< 21 dBm
RF Sensitivity	-80 dBm
Wireless Video Compression	Uncompressed
Interfaces
Transmitter Antenna Ports	2 x RP-SMA Male
Receiver Antenna Ports	2 x RP-SMA Male
Transmitter Video Connectors	1 x BNC (3G-SDI / HD-SDI) Input 1 x HDMI Input
Receiver Video Connectors	1 x BNC (3G-SDI) Output 1 x HDMI Output
Transmitter Other I/O	1 x USB Type-C
Receiver Other I/O	1 x USB Type-C
Embedded Audio	HDMI/SDI
Format Support
Video Format	SDI/BNC: 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps 1080i at 50, 59.94, 60 fps 1080PsF at 23.98, 24, 25 fps 720p at 50, 59.94, 60 fps HDMI: 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps 1080i at 50, 59.94, 60 fps 720p at 50, 59.94, 60 fps 576p at 50 fps 480p at 60 fps
Display
Transmitter Panel Type	OLED
Receiver Panel Type	OLED
Power
Transmitter Built-In Battery	None
Receiver Built-In Battery	None
Transmitter Battery Support	1 x Sony L-Series / NP-F Type
Receiver Battery Support	1 x Sony L-Series / NP-F Type
Transmitter Power Connector	1 x Barrel (6 to 16 VDC up to 2 A) Input 1 x USB Type-C (5 VDC up to 2 A) Input
Receiver Power Connector	1 x Barrel (6 to 16 VDC up to 2 A) Input 1 x USB Type-C (5 VDC up to 2 A) Input
Transmitter Power Consumption	Power Supply: 6 to 16 VDC (11 W)
Receiver Power Consumption	Power Supply: 6 to 16 VDC (7 W)
General
Transmitter Mounting	1 x 1/4"-20 Female 1 x Cold Shoe
Receiver Mounting	1 x 1/4"-20 Female 1 x Cold Shoe
Transmitter Dimensions	4.3 x 2.8 x 1.32" / 11 x 7.2 x 3.35 cm
Receiver Dimensions	4.3 x 2.8 x 1.32" / 11 x 7.2 x 3.35 cm
Transmitter Weight	0.5 lb / 206 g
Receiver Weight	0.5 lb / 206 g
