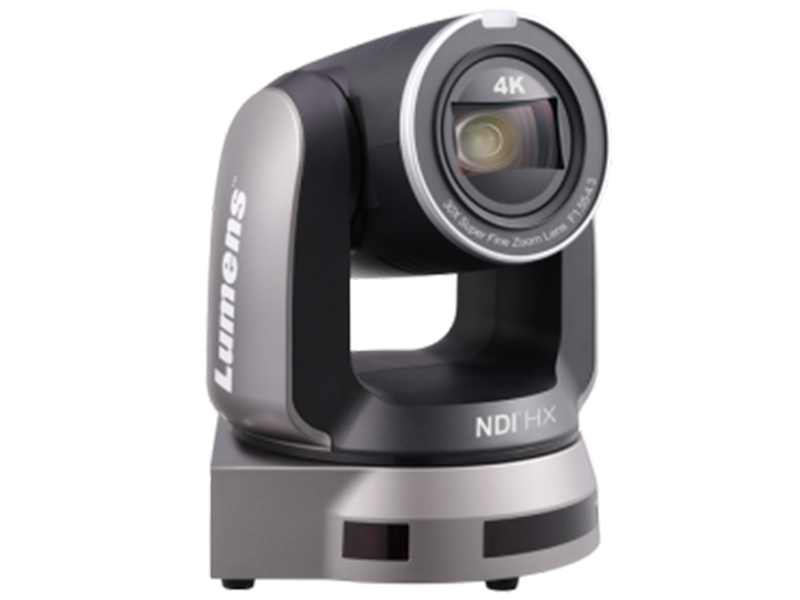

Lumens VC-A71PN UHD PTZ IP Camera with NDI

Code: COR/VC-A71PN
$8,530.00

With advanced NDI®|HX technology, the VC-A71PN delivers high-quality video with ultra-low latency and connects directly to an NDI® network, utilizing NDI-based video production workflows without additional configuration, reducing cost and set-up time.

Black version. White also available.

ENQUIRE NOW

Got a question about this product?
Send us a message

Special Order Item

Usually ships in 1-2 weeks

Request ETA

Advanced NDI®|HX Technology

With advanced NDI®|HX technology, the VC-A71PN delivers high-quality video with ultra-low latency and connects directly to an NDI® network, utilizing NDI-based video production workflows without additional configuration, reducing cost and set-up time.

4K Ultra HD Video Image Quality

Equipped with 4K Ultra HD 1/1.8” CMOS sensor that delivers a superb clear image and natural color reproduction. Outstanding video performance and quality make you capture every moment.

Video in Greater Details with 30x Optical Zoom

Its superior 30x optical zoom lens smoothly and quickly captures every details even in the low light condition and provides image details without any distortions.

Live Events, Broadcasting, E-sports, House of Worship

  • Live streaming for a larger audience with simpler installation
  • Ultra-low latency with NDI®|HX technology enhances the streaming quality
  • Ideal for live production including live events, broadcasting, e-sports, house of worship
Sensor 1/1.8" 9.17 MP CMOS
Video Format 2160p: 59.94 / 50 / 29.97 / 25
1080p: 59.94 / 50 / 29.97 / 25
720p:59.94 / 50
Video Output Interface HDMI 2.0 / Ethernet
Optical Zoom 30x
Digital Zoom 12x
Horizontal Viewing Angle 63°
Panning Angle +170° ~ -170°
Panning Speed 300°/ sec
Tilting Angle +90° ~ -30°
Tilting Speed 300°/ sec
Aperture F1.6 ~ F4.8
Focal Length 6.5mm ~ 202mm
Shutter Speed 1/1 ~ 1/10,000 sec
Minimum Object Distance 1.5m (Wide / Tele)
Video S/N Ratio > 50dB
Minimum Illumination 0.05 lux (F1.6, 50IRE, 30fps)
Focus System Auto / Manual
Gain Control Auto / Manual
White Balance Auto / Manual
Exposure Control Auto / Manual
WDR Yes
3D NR Yes
Image Flip Yes
Preset Positions 256
Multiple Video Stream HEVC 4K60fps
H.264 640x360 30fps
Audio Compression Format AAC
Control Interface RS-232 / RS-422 / Ethernet
Control Protocol VISCA / PELCO D
Tally Light Yes
PoE PoE+ (IEEE802.3at)
Video Stream NDI
Video Compression HEVC / H.264
Audio Input Line in / MIC in
(Phone Jack 3.5mm x1)
Audio Output Ethernet / HDMI 2.0
IR Pass-through Yes
IR Receiver Yes
IR Remote Control Yes
DC In 12V +/- 20%
Power Consumption PoE: 17.5 W
DC In: 16 W
Weight 6.6 lbs (3 kg)
Dimensions 9.1” x 7.4” x 7.4”
(232 x 188 x 189 mm)
