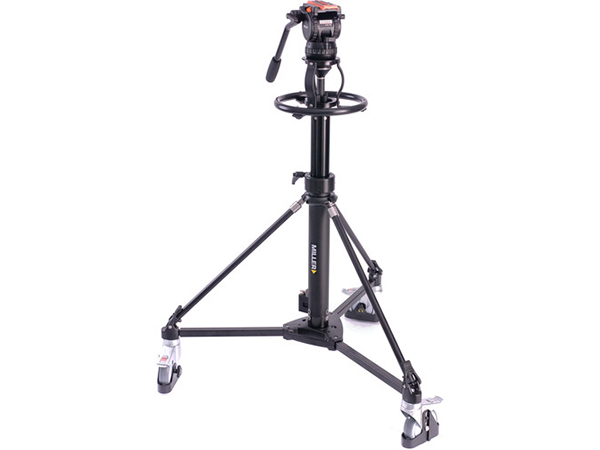

The Combo Pedestal with CompassXV 10 Head and Versa Plate from Miller combines a 100mm bowl pedestal with the CXV10 fluid head, a Versa side-load quick release plate, and one fixed pan handle with a rosette for an optional second handle. This live-broadcast pedestal system supports rigs weighing up to 26.4 lb and provides a 13.8" elevation stroke on a pneumatic column extending from 35.4 to 49.2". Read more below about each item in this kit.

Miller Combo Pedestal System (100mm)

The Combo Pedestal System from Miller is a compact, portable pedestal system for 100mm ball fluid heads. The pedestal features a load capacity of 66 lb, a 13.8" stroke, and an adjustable air column system with a height range of 35.4 to 49.2". The large 4.9" wheels move smoothly and are fitted with individual brakes.

This sturdy system features a quick column lock, an 11.6" steering wheel, and adjustable cable guards. The Combo Pedestal System is simple and easy to set up, and it incorporates a carry handle on its dolly.

Key Features

• Smooth column with 13.8" stroke supports up to 66 lb
• Air-adjustable column system for quick payload balancing
• Large 4.9" wheels with independent brake system
• 4.9" dual ball bearing wheels for quick swivel-turn action
• Quick-action column lock
• 11.6" steering wheel
• Adjustable cable guards

Miller Versa CXV10 Fluid Head with Pan Handle

The Versa CXV10 Fluid Head with Pan Handle from Miller is designed to accommodate a wide payload range, 16 steps of counterbalance with CB Plus for fine adjustments, as well as five selectable pan/drag settings. Pan, tilt, and counterbalance can all be set to zero, enabling even the lightest cameras to be supported. Maxed out, this head is rated to support camera setups up to 26.4 lb, adequate for a DSLR or mirrorless camera, a cinema camera, or an ENG camcorder. Securing your camera or rig is easy. The sideload quick release plate design enables you to simply drop in your camera without the alignment issues posed by rear-loading variations. The plate offers 3.9" of sliding range to balance your rig.

To survive fast-paced shooting environments, the CXV10 is die-cast from a lightweight yet durable metal alloy with composite polymers and precision ball bearings for smooth mechanical operation. Even in harsh conditions, the CXV10 will perform reliably. The base of the CXV10 is a 100mm ball for mounting to compatible tripods and grip equipment. An illuminated bubble level makes it easy to level the CXV10 in dark environments. A fixed-length pan handle is included, and a second rosette is available for attaching an optional second pan handle.
