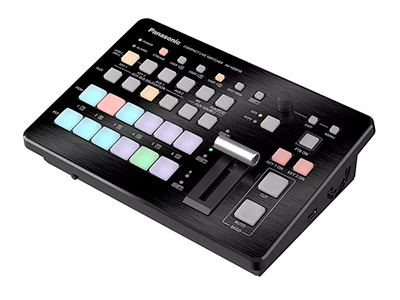

Panasonic AV-HSW10 Compact Switcher

Code: GEC/AV-HSW10

The AV-HSW10 was designed to support live events such as high-flex university courses, smaller corporate events, and webinars that need to switch live between different cameras and stream directly from the switcher.

For purchasing information

Enquire Now

The AV-HSW10 was designed to support live events such as high-flex university courses, smaller corporate events, and webinars that need to switch live between different cameras and stream directly from the switcher. Its notebook-sized design makes it perfect for production crews working in smaller venues, and has user-friendly buttons, T-shaped fader, and intuitive on-screen display . It provides broadcast image quality with high performance, thanks to its 10bit processing, and supports a wide variety of I/O's and streaming protocols, including SDI, HDMI, NDI®, SRT, RTMP.

Key features

  • Diverse Interfaces to Suit Wide-ranging Needs
  • Diverse Keyers for More Attractive Video
  • Multiviewer With 10 Selectable Patterns
  • Remote Control With Software Control Panel
Video Input 3G-SDI
Baseband mode: 4 or 3
IP mode: 1
HDMI
Baseband mode: 1 or 2
IP mode: 1
NDI(R)*1*2/Streaming
Baseband mode: 2
IP mode: 3
Video Output 3G-SDI
Baseband mode: 2
IP mode: 2
HDMI
Baseband mode: 1
IP mode: 2
NDI(R)*1*2/Streaming
Baseband mode: 2
IP mode: 2
3G-SDI 1080/59.94p,50p,29.97p,25p,24p,23.98p
1080/59.94i,50i
720/59.94p,50p
Audio IN: RCA x 2, OUT: φ3.5 mm TRS
KEYER 2 (PinP, Linear key,
Luminance key, Chroma key)
AUX 2
Genlock BB or Tri-level (Input/through output)
USB USB-Type A x 1 (USB Memory)
Dimensions (W x H x D) 254 mm x 175 mm x 67 mm
(10 inches x 6-7/8 inches x 2-5/8 inches)
Power Consumption 45 W (TBD)
