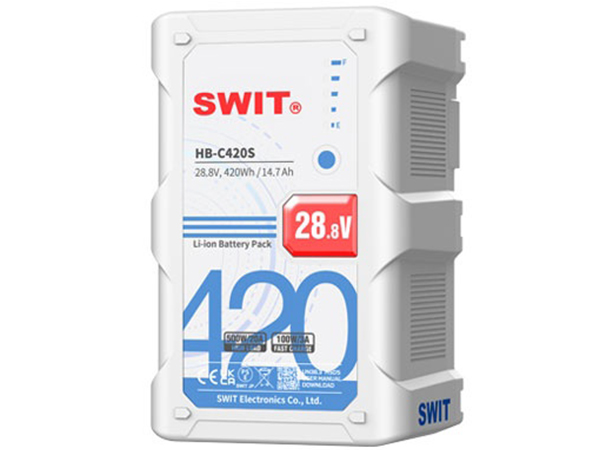

The HB-C420S offers the world’s largest capacity for a handheld V-mount battery at 420Wh and the highest constant power load of 500W, enabling extended operation of high-power cine lights. For example, two HB-C420S batteries can power the Aputure LS 600C PRO at 100% output for at least 1.2 hours.
28.8V, 420Wh, 500W Load
The HB-C420S is made up of 24 Li-ion cells, delivering a high voltage of 28.8V (22-33.6V), a large 420Wh capacity, and a 500W constant load.
Note: Do not use the battery on devices that do not support a 22-33.6V input.
500W Constant High Load
The HB-C420S provides a consistent 500W load, even at just 1% battery capacity (with a peak load of up to 650W), making it ideal for high-power gear such as cine lights.
48V 750W Power Solution
With the SWIT dual battery light stand adapter TD-R230S, two HB-C420S batteries can output 48V and 750W to power cine lights like the Skypanel S30/60/120, Orbiter, Creamsource Vortex 4 & Vortex 8, Aputure Nova P300/P600, and more.
Creamsource Vortex 8 Power
Using two HB-C420S batteries and the TD-R230S power adapter, you can output 48V and 750W DC to fully power the Creamsource Vortex 8 light, which requires 650W. Together, the batteries provide a total capacity of 840Wh, comparable to a large floor battery, but conveniently mounted on a light stand for easy movement. This setup powers the Vortex 8 for at least 1 hour and 20 minutes.
100W Fast Charging
The HB-C420S supports fast charging at DC 33.6V and 100W using the PC-P461S charger, reducing charging time by over 60%. The 420Wh battery charges from 0 to 80% in just 3.9 hours and reaches a full charge within 5.3 hours.
