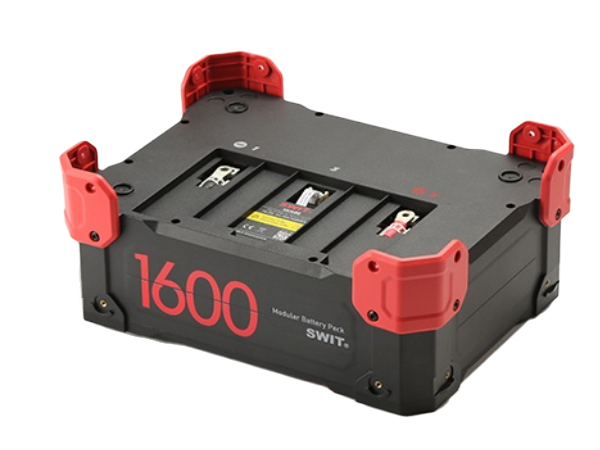

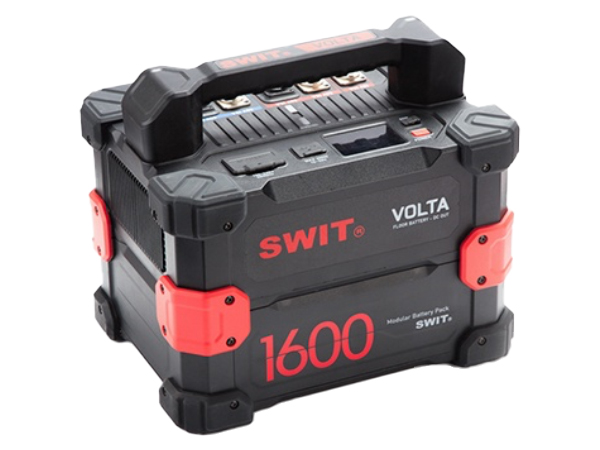

The VOLTA Floor Battery is a modular add-on system designed for effortless stacking and installation of additional battery packs to expand power capacity. Each battery pack delivers an impressive 1600Wh of energy, ensuring that equipment remains powered to keep productions running smoothly and without interruptions. With versatile DC power outputs of 12V, 24V, 48V, and USB-C, the system supports a total constant power load of 1700W.
Key Features
- 1600Wh Ternary Li-ion Battery Cells
- Expandable Capacity: Add-on battery units to increase total capacity
- Massive Storage: Stack up to 8 units for a 12.8kWh capacity
- Simultaneous Power Delivery: All power sockets can operate at the same time
- High Power Load: 1700W constant high load in total
- Fast Charging: Built-in AC 100-240V 450W charger
- Solar Charging: XT60 port supports 12-60V, 400W solar panel charging
- Charge-While-Use Capability
- LCD Display: Battery readout for real-time monitoring
- Low-Temperature Resistance: Operates down to -20°C
- Ultra-Low Standby Power Consumption
- Heavy-Duty Housing: Features robust construction with rubber covers
Output Options
- 2× DC 48V (Regulated) 1200W output
- 2× DC 24V (Regulated) 360W output
- 1× DC 12V (Regulated) 120W output
- 1× USB-C 65W power output
The system supports up to 8 stacked battery packs, delivering a massive 12.8kWh capacity to meet the long-term power demands of high-power cine equipment. Its industry-standard 12V and 24V connectors ensure compatibility with a wide range of cine-level cameras and ENG camcorders, providing continuous power for extended shoots and demanding video productions.
Smart Monitoring for Reliable Operation
The VOLTA battery features an LED screen displaying critical information, such as power percentage, remaining runtime, and the health status of each battery unit. This ensures users stay informed about their power supply, a vital feature for live productions where uninterrupted power is essential.
Adaptable for Diverse Applications
The VOLTA Floor Battery is highly versatile, functioning as a centralized power hub for film carts, powering monitors, cameras, wireless receivers, and laptops. It also serves as a reliable energy solution for director’s desks, supporting video switchers, live-streaming equipment, and more.
Its regulated 24V and 48V outputs make it compatible with high-power lighting fixtures, including ARRI Skypanel-X, Creamsource Vortex 4/8(s), and Aputure LS-600 series & 1200d Pro. Additionally, the 24V output supports remote heads and cine cameras, ensuring seamless compatibility with leading brands in professional cinematography.
Eco-Friendly and Efficient Charging
SWIT embraces sustainability with the VOLTA system. It supports solar panel charging via an XT60 interface at up to 400W, providing a fully charged system in just 4.5 hours. Each 1600Wh VOLTA unit also includes a built-in charger capable of full recharge in 6.5 hours. The system’s ability to charge and discharge simultaneously ensures a continuous power supply to critical equipment.
Unlike traditional batteries, the VOLTA Floor Battery enters sleep mode automatically after 12 hours of inactivity, allowing it to retain power for over 10 years without regular charging.
Built for Extreme Conditions
SWIT’s proprietary low-temperature startup technology, combined with NCM (Nickel-Cobalt-Manganese) cells, ensures the VOLTA battery operates reliably even at -20°C. Compared to LFP (Lithium Iron Phosphate) cells, NCM cells provide higher energy density and superior low-temperature performance, making the VOLTA battery the ideal choice for filming in freezing conditions where reliability is crucial.
Seamless Integration and Safety First
To enhance versatility, SWIT offers optional add-on battery units and specialized DC cables compatible with various lighting fixtures, enabling smooth integration into any production setup.
SWIT prioritizes safety and reparability with the VOLTA Modular Add-On Floor Battery. The system features a TI Battery Management System (BMS) that protects against overcharging, over-discharging, and short-circuiting, ensuring the safety of both equipment and personnel on set.
The modular design simplifies maintenance and repair, minimizing downtime and reducing costs associated with battery failures. This ensures peace of mind for professionals relying on continuous power for their productions.
