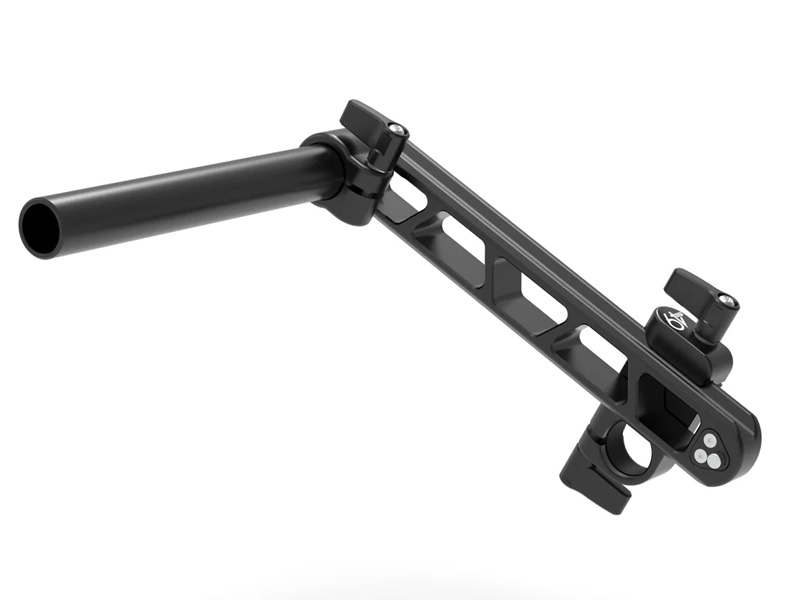

MID49 TWIST Mount EVF Kit with Knuckle

Code: M49/M49-EVF-KIT-0

$450.00

TWIST Mount EVF Kit with Knuckle includes the Double Sided NATO Rail to 15mm Rod, which can attach to a sideways 15mm rod clamp like the optional items Multi-Function Rod Bracket (MFRB 15mm LW), Single 15mm Rod Clamp (M4 x 20mm), or Canon 1/4-20 Striped Rosette 15mm Rod Clamp (sold separately).

Add to Cart

Found this item cheaper elsewhere? Let us know

ENQUIRE NOW

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when MID49 TWIST Mount EVF Kit with Knuckle is back in stock.

Overview

The NATO rail has built-in variable friction via the thumbscrew, and safety pins are on each end to prevent accidental accessory removal.

Included TWIST Mount EVF Knuckle has a NATO clamp on one end and a variable friction 15mm mount on the other. With the variable friction design, you can grab and twist the monitor without loosening the thumbscrew.

Choose your Kit:

TWIST Mount EVF Kit with Knuckle Only
- Includes the NATO rail and Knuckle described above
TWIST Mount EVF Kit for Canon C400, C300mkIII, C500mkII, LM-V2
- Includes the NATO rail, Knuckle, and Canon Monitor Spud
- Works with Canon C400, C300mkIII, C500mkII, and LM-V2
TWIST Mount EVF Kit with ARRI M6 Rosette
- Includes the NATO rail, Knuckle, and male ARRI M6 Rosette Spud
- Works with Zacuto Gratical, Gratical Eye, and Kameleon Pro EVF
- Works with Z CAM 2.89" EVF101
- Works with original PORTKEYS OEYE
TWIST Mount EVF Kit
- Includes the NATO rail, Knuckle, and male ARRI 1/4-20 Spud
- Works with Blackmagic Design PYXIS Monitor
- Works with recent SmallHD monitors like Indie 5, Cine 5, and Ultra 5
- Works with ARRI Camera Control Monitor CCM-1
TWIST Mount EVF Kit with ARRI 3/8-16
- Includes the NATO rail, Knuckle, and male ARRI 3/8-16 Spud
- Works with Atomos Shogun Ultra Monitor-Recorder (ATOMSHG002)
TWIST Mount EVF Kit with Sony / PortKeys 1/4-20
- Includes the NATO rail, Knuckle, and male Sony 1/4-20 Spud
- Works with Sony Burano directly and also the EVF Pivot Adapter
- Works with PORTKEYS LH7P (be careful, the monitor is plastic)
  Works with PORTKEYS 5” BM5 IV
TWIST Mount EVF Kit with L Bracket 1/4-20
- Includes the NATO rail, Knuckle, and L Bracket with 1/4-20 screws
- Works with PORTKEYS LEYE III (note their HDMI cable may conflict with NATO rail in certain positions
- Works with original RED DSMC1 EVF
TWIST Mount EVF Kit with Female ARRI 1/4-20
- Includes the NATO rail, Knuckle, and female ARRI 1/4-20 Spud
- Works with any 1/4-20 product, including those with ARRI spaced locating pins (3mm diameter pin on 10.4mm spacing center to center)
TWIST Mount EVF Kit with Female ARRI 3/8-16
- Includes the NATO rail, Knuckle, and female ARRI 1/4-20 Spud
- Works with any 3/8-16 product, including those with ARRI spaced locating pins (3mm diameter pin on 15mm spacing center to center)
TWIST Mount EVF Kit for 1/4-20 Rosette
- Includes the NATO rail, Knuckle, and 1/4-20 Rosette Spud
- Works with 1/4-20 Rosette on the Kinefinity EAGLE SDI (or HDMI) e-Viewfinder
- Works with Zacuto Gratical, Gratical Eye, and Kameleon Pro EVF
- This is NOT a regular ARRI rosette
TWIST Mount EVF Kit for ARRI Viewfinder Wedge
- Includes the NATO rail, Knuckle, and male ARRI M6 Rosette Spud
- Works with ARRI standard EVF wedge products like EVF-1, EVF-2, MVF-1, MVF-2
- Works with other ARRI wedge adapters like ARRI VFA-4, K2.0015520, etc.
- Works with 3rd party products that utilize ARRI-style mounting wedges.
TWIST Mount EVF Kit with Old-Style SmallHD 1/4-20
- Includes the NATO rail, Knuckle, and spud for older style SmallHD 1/4-20 with wide locating tabs
- Works with legacy 5" SmallHD monitors like 501, 502, Focus 5, Focus Bolt, Action 5
- Works with legacy 7" SmallHD monitors like 701, 702, Focus 7
TWIST Mount EVF Kit for Blackmagic Viewfinder Wedge
- Includes the NATO rail, Knuckle, and spud for Blackmagic Design dovetail wedges
- Works with URSA Cine EVF - CINEURSAB/EVF
- Works with URSA Cine EVF Extension - CINEURSAB/EVFEXT
- Works with PYXIS Monitor Kit - CINEURSABB/AMKIT
TWIST Mount Kit with Monitor Right Angle Adapter + Spud with Old-Style SmallHD 1/4-20
- Includes the NATO rail, Knuckle, Right Angle Spud Adapter, and spud for Old-Style SmallHD 1/4-20
- Works with SmallHD Focus 5, Focus Pro for RED, 502, 503, Action 5
TWIST Mount Kit with Monitor Right Angle Adapter + Spud with ARRI 1/4-20
- Includes the NATO rail, Knuckle, Right Angle Spud Adapter, and spud for ARRI 1/4-20
- Works with Blackmagic Video Assist (remove locating pins)
- Works with Atomos Shinobi, Ninja, Shogun (remove locating pins)
- Works with recent SmallHD monitors like Indie 5, Cine 5, and Ultra 5
- Works with TVLogic F-5A, F-7H, F-7HS (remove locating pins)
TWIST Mount Kit with Monitor Right Angle Adapter + Spud with ARRI 3/8-16
- Includes the NATO rail, Knuckle, Right Angle Spud Adapter, and spud for ARRI 3/8-16
- Works with Atomos Shogun Monitor-Recorder (ATOMSHG002)
TWIST Mount Kit with Monitor Right Angle Adapter + Spud with Sony / PortKeys 1/4-20
- Works with PORTKEYS BM5 IV, BM5 IV WR, LH5P II
- Works with PORTKEYS PT5 II, PT6
- Works with PORTKEYS LH7P, LH7H, HD7H
- Works with PORTKEYS BM7 II DS U, HS8
TWIST Mount EVF Combo Kit
- Includes the NATO rail, Knuckle, and ARRI M6 Rosette, ARRI 1/4-20, ARRI 3/8-16, L Bracket 1/4-20, Female ARRI 1/4-20, Female ARRI 3/8-16
- Note this does not include the specific Canon, Sony, Blackmagic, ARRI dovetail wedge, Kinefinity, and old SmallHD attachments
