Tilta Hydra Alien Pro Car Mounting System

Code:

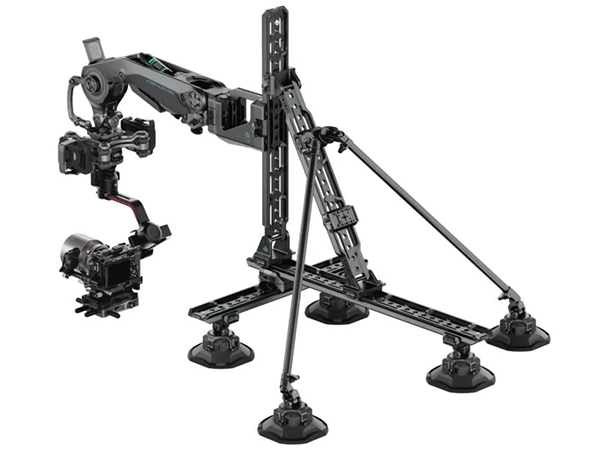

The Hydra Alien Pro Car Mounting System is a next generation gimbal support solution for car-mounted cinematography and is one of the most accessible and innovative Car Mounting Solutions for RS4 Pro to Ronin 2.

Product Options:

Code: TIL/HDA-T18-A-V
$5,430.00
Code: TIL/HDA-T18-B-V
$3,620.00
Code: TIL/HDA-T18-V
$5,070.00

ENQUIRE NOW

Got a question about this product?
Send us a message

The Hydra Alien Pro Car Mounting System is a next generation gimbal support solution for car-mounted cinematography and is one of the most accessible and innovative Car Mounting Solutions for RS4 Pro to Ronin 2, starting from $1799 for Pre Order.

The system utilizes a highly customizable combination of dovetail-like plates and suction cups that allows users to fine-tune the exact placement of their shot to achieve almost any angle possible when mounting to a vehicle. The newly designed dovetail plates feature retractable safety pins at every position which the arm can be mounted. This drastically improves the safety of the system, especially when adjusting the position of the arm via a new sliding design which makes small adjustments quick and easy.

The newly designed shock absorbing arm supports higher payloads up to 28.7lbs and features a motorized shock absorbing head which provides greater stability and uses motors to help stabilize the system similar to a gimbal.

When paired with the optional Nucleus Nano 2 Control Handle, the damping of the shock absorbing head can be adjusted remotely which makes this ideal for fast paced environments and provides the opportunity to fine tune damping settings as road conditions change in real time. When paired with a lightweight gimbal, this creates an incredibly smooth image while being more user friendly when compared to traditional systems. This innovative system greatly expands possibilities for both entry level and experienced users who may not have the full budget needed for more traditional vehicle mounted rigs.

Please note: when using larger gimbals like the Ronin 2, we recommend only rigging the Hydra Alien Pro with Speed Rail as other suction cup based options are not strong enough to reliably support the system.
Dimensions
Hydra Alien Pro Speed Rail Mounting Kit – V Mount (HDA-T18-B-V) Hydra Alien Pro Car Mounting System – V Mount (HDA-T18-V) Hydra Alien Pro Electronic Mounting Kit – V Mount (HDA-T18-A-V)
Case 1: 68 x 57 x 30cm /26.7 x 22.4 x 11.8 inches
Case 2: 48 x 37 x 27cm / 18.9 x 14.5 x 10.6 inches
Case 1: 68 x 57 x 30cm /26.7 x 22.4 x 11.8 inches
Case 2: 103 x 48 x 25cm / 40.5 x 18.9 x 9.8 inches
Case 1: 68 x 57 x 30cm /26.7 x 22.4 x 11.8 inches
Case 2: 103 x 48 x 25cm / 40.5 x 18.9 x 9.8 inches
Weight
Hydra Alien Pro Speed Rail Mounting Kit – V Mount (HDA-T18-B-V) Hydra Alien Pro Car Mounting System – V Mount (HDA-T18-V) Hydra Alien Pro Electronic Mounting Kit – V Mount (HDA-T18-A-V)
Case 1: 16kg / 35 lbs
Case 2: 4.5kg / 10 lbs
Case 1: 16kg / 35 lbs
Case 2: 17.3kg / 38 lbs
Case 1: 16kg / 35 lbs
Case 2: 17.3kg / 38 lbs
Materials
Aluminum alloy
Color
Grey
