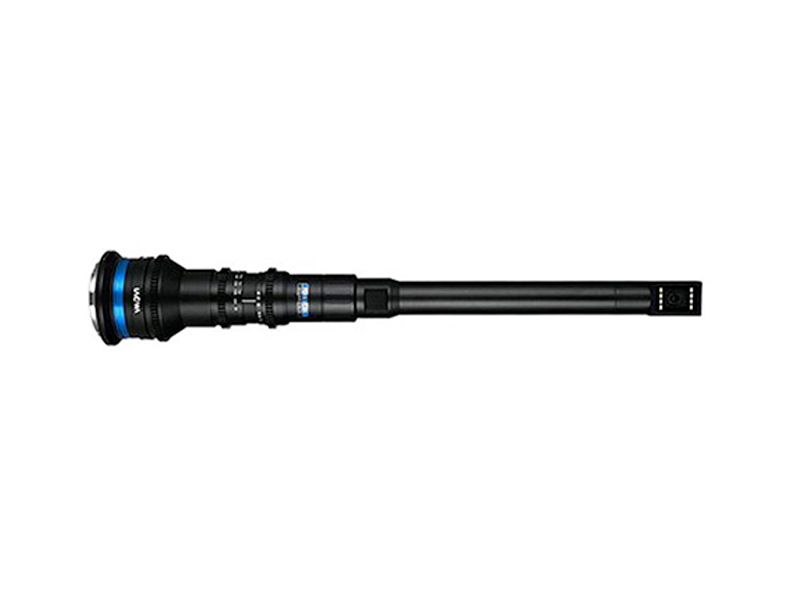

The Venus Optics LAOWA 24mm T14-40 Full Frame 2x PeriProbe Cine Lens captures sharp magnified shots with full frame camera sensors and has a focal length of 24mm. Its periscope-style lens tube with interchangeable ends features an aperture range of T14 to T40 for a deep or shallow depth of field. Use it underwater or in tight spaces, thanks to its waterproof front barrel and slim profile.
A lens construction of 28 elements in 19 groups creates a smooth, circular bokeh with minimal focus breathing. The lens can rotate 360° along the axis to unlock the orientation ring and create spinning shots. Both the focus and iris rings have 0.8 MOD cinema-standard gears for intuitive manual controls. A 1/4"-20 thread at the end of the 15.7" lens allows you to mount fill lights or other accessories. Built-in LEDs in the lens tips provide a ring-light effect to your shots.
Key Features
- Maximum T14 aperture for greater depth of field at close distances
- Cinema industry-standard 0.8 MOD focus and iris gears compatible with follow focus and iris controls
- Manually focus on objects only 0.8" away at 2x magnification
- Lens construction of 28 elements in 19 groups for smooth, circular bokeh
- A wide 85° perspective to create a "bug-eye" effect
- Long 15.7" lens barrel for access to tight spaces, stay a safe distance from subjects
- Waterproof front barrel for underwater shots without requiring a waterproof housing
- 360° rotation with a clutch mechanism to adjust the orientation ring
- Switch between 90° periscope to straight probe
- 1/4"-20 thread for mounting of fill lights
Lens Specs
Focal Length |
24mm |
Aperture Range |
T14-40 |
Angle of View |
85° |
Format Compatibility |
Full Frame |
Lens Structure |
28 elements in 19 groups |
Aperture Blades |
7 |
Min. working Distance |
2cm |
Max. Magnification |
2x |
Filter Thread |
NA |
Dimensions |
The part of largest diameter of the lens: Φ61.3mm×408mm
The front tube diameter of the lens: Φ29mm×408mm |
Weight |
around 770g (1.69lbs)
The interchangeable 0° barrel – around 248g (0.54lbs) |
