Change Router Crosspoints Visually

With a built in LCD, Blackmagic Videohub 12G can show you live video of all your router inputs! This means you can see all router inputs as live video before you change a route. There are also labels displayed below the live video to make it easy to identify the input you are viewing. What this means is you can scroll up and down the router sources in alphabetical order and see each input as live video, even if the inputs are different video standards. Imagine scrolling through your connections while viewing them as live video on the LCD! Plus in portable equipment racks where space is limited, the visual routing means you can see video inputs without adding an external SDI monitor.

Advanced 12G-SDI for SD, HD and Ultra HD Routing

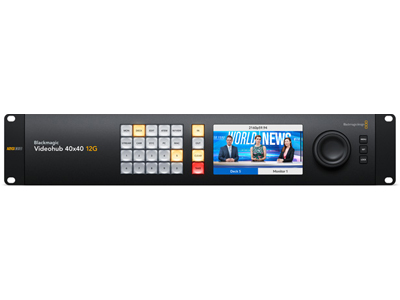

All models of Blackmagic Videohub 12G feature advanced 12G-SDI connections which are multi rate so they support any SD, HD and Ultra HD video format up to 2160p60 and will connect to any SD, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI equipment. Plus Blackmagic Videohub 12G also supports routing any video standard on the same router at the same time. That means on the 40x40 model you could route up to 40 different video standards at the same time! 12G-SDI gives you high frame rate Ultra HD via a single BNC connection that also plugs into all of your regular HD equipment! With 12G-SDI you get a future proof technology that connects to the equipment you have now and in the future!

SDI Re‑Clocking

Videohub includes built in SDI re-clocking on every 12G-SDI input. SDI re-clocking regenerates the video signal for maximum video quality. This is extremely important because longer video cables degrade the signal. Expensive premium "digital" cables can help a little, but still cannot eliminate signal integrity loss due to cable lengths getting longer. With SDI re-clocking all of the SDI devices in your studio receive a regenerated signal with improved jitter performance. That means longer cable lengths, and no drop outs in your video.

Add External Hardware Control Panels

All Blackmagic Videohub routers can be remotely controlled, which is vital in large broadcast studios where the equipment connected to the router is located in different areas of the building. There are 2 different types of hardware panel available. The Videohub Master Control Pro is similar to the front panel and has a spin knob, LCD and shortcut buttons. While the Videohub Smart Control Pro model features all buttons and is generally programmed so the panel controls a single router output with each button programmed to a router input. Then you can just cut along the panel buttons to change the router output instantly. It works best when you install a smart panel below each video monitor!

Router Control on Mac, Windows and iPad

If you need external router control that's affordable, then Videohub Software Control is perfect because it can be downloaded free! Videohub Software Control is available for both Mac and Windows, so you can run it on the computers you're already using for creative work. The software features large buttons that are easy to press. Each button can be customized to a router input, a router output, and has an icon assigned to help you identify it visually. The big buttons are great for use on a touchscreen PC, where the software becomes a large screen XY control panel! You can even download a version of the software for the Apple iPad!

Videohub Setup Utility

When you first purchase Blackmagic Videohub 12G, all the video inputs and outputs will have simple default labels, however you can customize them to match the equipment you have connected! That’s why the Blackmagic Videohub 12G installer includes Videohub Setup software, which lets you customize the router input and output labels. You can even enable the take button to be used when changing sources, plus the take button can be enabled for each specific video output. The Videohub Setup also lets you program the buttons on the front panel, update the router software, or configure external hardware panels. The software supports Mac and Windows and can be connected via Ethernet or USB.

Customize Router Control with the Developer SDK

Videohub includes a free software development kit so developers and system integrators can easily add protocol support for integration into broadcast automation systems. Plus all Videohub routers use a simple text based protocol thats easy to learn. This makes it very simple to create custom control solutions from all computer platforms and even embedded hardware such as Raspberry Pi and Arduino. The protocol can even be used with a Telnet app so you can experiment with controlling the router before you start coding! Plus the protocol is the same one used for the Videohub Software Control so it's well tested and includes all the features needed for complex control apps.

Localized for 13 Popular Languages

Blackmagic Videohub 12G supports multiple languages so you can customize it to the language you prefer. You get support for English, Chinese, Japanese, Korean, Spanish, German, French, Russian, Italian, Portuguese, Turkish, Polish and Ukrainian. Simply go into the setup menu to set the language, or you can change at any time in the future. Once a language is selected, the menus and the display on the LCD will change to the selected language. However, independent of the language you set, the input and output labels are always unicode so you can customize the labels to a mix of multiple languages! Multiple languages means you can work anywhere in the world and with any local crew!

Supports Multiple Formats

When you need to work on global events then you need to stay updated with the latest technology and television standards. Videohub gives you support for all 525SD and 625SD, 720HD and 1080HD, and the Ultra HD video standards. Plus you can connect multiple video standards simultaneously!

Supports Multiple Formats

The SDI standard includes up to 32 channels of embedded audio included with the SDI video signal. The advantage to embedded audio is that it all connects with a single BNC cable and all audio remains perfectly synchronized to the video. Plus all modern SDI equipment supports embedded SDI audio!

Embedded Audio for Audio and Video

Videohub is designed to support the highest quality video. 10-bit is the most commonly used standard as colors can be represented more accurately than 8-bit video. You can route 4:2:2 8-bit or 10-bit video in any standard, and it even works with 4:4:4 12-bit SDI up to 2160p30 for feature film!
