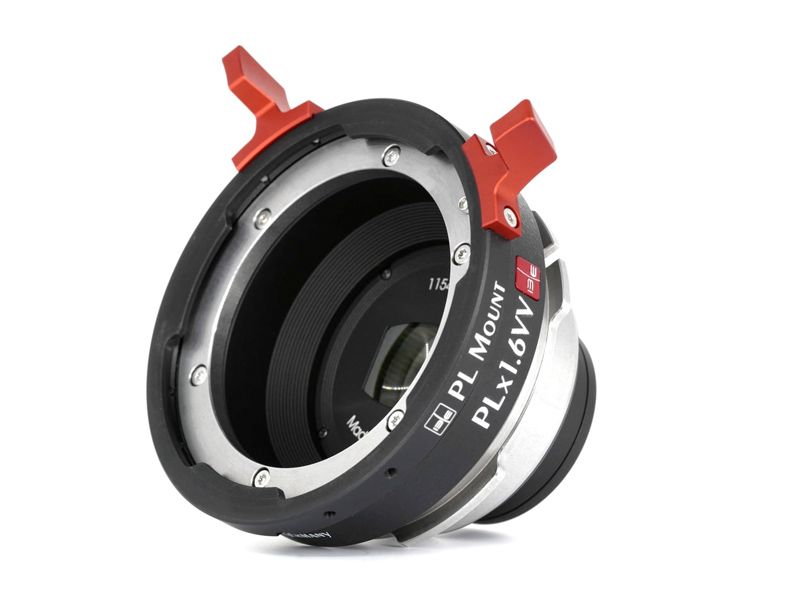

IB/E PLx1.6VV Expander

Code: SEC/500000012278
$11,285.00

The PLx1.6VV is the follow-up model to the S35xFF and increases the focal length by a factor of 1.66x. It allows the use of S35 lenses on large-format cameras up to 46.5 mm sensor diameter and supports a maximum aperture of T-Stop 2.0.

ENQUIRE NOW

Got a question about this product?
Send us a message

Special Order Item

Contact us for an ETA

Request ETA

The PLx1.6VV is the follow-up model to the S35xFF and increases the focal length by a factor of 1.66x. It allows the use of S35 lenses on large-format cameras up to 46.5 mm sensor diameter and supports a maximum aperture of T-Stop 2.0. The PLx1.6VV is characterized by a robust and durable mechanical design with stainless steel PL mounts and anodized aluminium as well as decorative surface outside and flair minimized surfaces inside.

Please Note: The PLx1.6VV is incompatible with mirror cameras but can be used with most S35 PL lenses.

The first wave of large format cameras is on the market and includes: the ARRI ALEXA LF, ARRI ALEXA 65, RED MONSTRO 8K VV, PANAVISION Millennium DXL2, SONY VENICE, CANON C700 and others. Larger sensors deliver a film-style look and interesting bokeh due to their very shallow depth of field. These new cameras require lenses that can cover larger sensor sizes or an expander that allows cinematographers to use their favorite S35 lenses.

Can be used with many PL mount S35 optics

UMS PL Mount System compatible

Specifications

Max. image diameter (mm): 46.5

Focal length extension: 1.66x

Max. input T-stop: 2.0

Light drop (stops): 1.46

Lens mount: PL Standard

Camera mount: PL UMS Mount*

Length PL to PL (mm): 22.9

Diameter (mm): 77.0

Weight (kg): 0.3

* without F and MFT Mount.
