Specifications

Supported Mobile Clients

• Android
  • Android 5.0 and above
• iOS
  • iOS 9.0 and above
• iPhone
  • iPhone 5s
  • iPhone SE
  • iPhone 6 / iPhone 6s / iPhone 6 Plus / iPhone 6s Plus
  • iPhone 7 / iPhone 7 Plus
  • iPhone 8 / iPhone 8 Plus
  • iPhone X
• iPod Touch
  • iPod Touch 5
  • iPod Touch 6

Supported Web Browser

• Microsoft Internet Explorer 11
• Microsoft Edge
• Mozilla Firefox version 61 and above
• Google Chrome version 49 and above
• Apple Safari 11.1 and above
• Opera 55.0.2994.44 and above

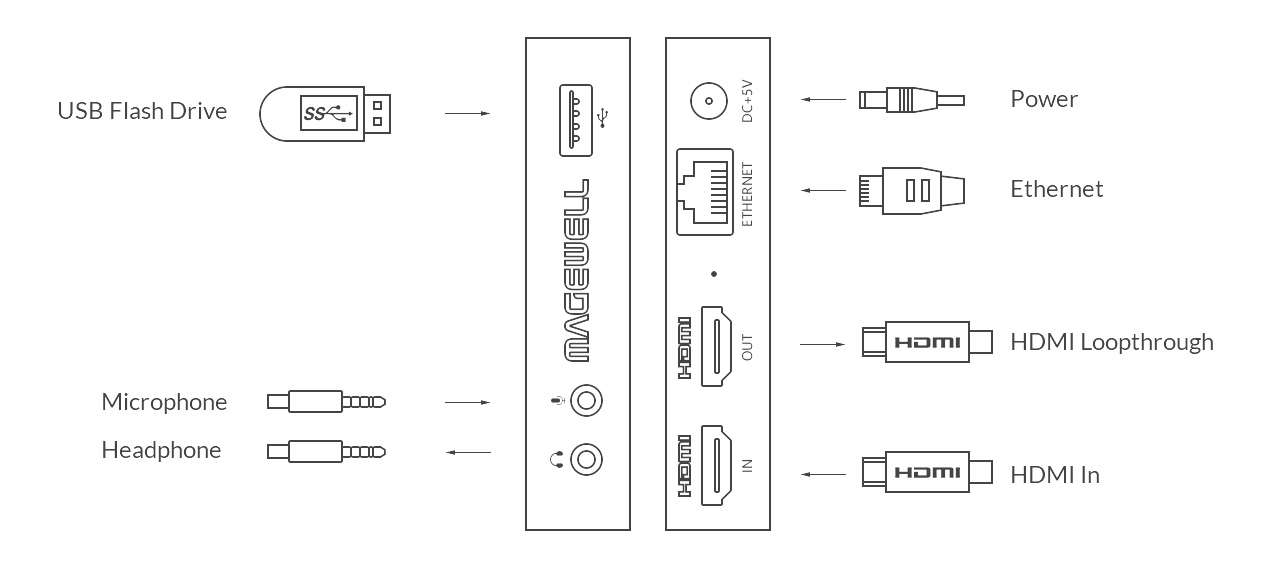

Input Interfaces

• HDMI
  • HDMI 1.4a
• 3.5mm audio jack
  • Microphone interface

Output Interfaces

• HDMI
  • HDMI loop-through
• USB
  • USB 2.0
• 3.5mm audio jack
  • Headphone interface

Network Interfaces

• Wired Ethernet
  • 10/100/1000Mbps Ethernet
• Wi-Fi
  • IEEE 802.11 a/b/g/n/ac
• USB
  • USB 3G/4G Modem (not included)

Bluetooth

• Bluetooth 4.0 BLE

HDMI Specific Features

• Support for up to 4096x2160 4:4:4/4:2:2 30fps or 4096x2160 4:2:0 60fps input and loopthrough signals
• Support for 8/10/12-bit color depths
• Support for 60p, 60i, 50p, 50i, 30p, 25p signal formats
• For 4:2:0 input signals, the horizontal and vertical resolution will be reduced to 1/2 for capturing
• For 4:4:4/4:2:2 input signal at more than 170MHz, the horizontal and vertical resolution will be reduced to 1/2 for capturing

Analog Audio Features

• Extraction of stereo embedded HDMI audio for recording and output via 3.5mm stereo mini-jack Line Out
• Recording and streaming analog audio via 3.5 mm microphone interface

Streaming Features

• Support for live streaming using RTMP protocol to software including Flash Media Server, Wowza, Red5 and Nginx server
• Streaming to Facebook, Twitch and YouTube platforms
• Support for streaming to 2 servers simultaneously

Recording Features (to USB Flash Drive)

• Support for H.264/HEVC (video) and AAC High Quality (audio) encoding
• Supports recording at input signal resolution up to 2048x1080
• Support for 1920x1080, 1600x1200, 1440x1080, 1440x900, 1280x1024, 1280x960, 1280x800, 1280x720, 1200x900, 1024x768, 960x540, 800x600, 768x576, 720x576, 720x480, 640x480, 640x360, 480x360 resolutions
• Support for 60fps, 50fps, 30fps, 25fps, 24fps, 15fps frame rates
• Support for recording as MP4 files
• USB Flash Drive file system format: FAT32, NTFS, exFAT, VFAT

Recording Features (to Mobile Device)

• Support for recording at up to 1280x720, 30fps
• Support for recording as MP4 files
• Take still image snapshots during recording
• Save recording files and screenshots to system album
• Input signal previewing
• Timer recording: 15s, 30s, 1min, 2min, 5min

Remote Control Features in App

• Remotely control recording and streaming
• Remotely check device status
• Support for setting volume, network, recording and live streaming parameters
• Support for checking and safely updating device firmware (can also reset to factory firmware version)
• Simultaneous main stream and sub stream encoding with customizable parameters
• The bitrate for main stream is up to 8 Mbps while for sub stream is 1 Mbps
• In-app online help
• Support for multiple users log-in simultaneously
• Support for device configuration using Web UI

LED Indicator

• Indicates the state of the input signal, Ethernet Network, Wi-Fi, USB flash drive
• Indicates the working state of the device: startup, recording, streaming, update

Form Factor

• 94.20mm x 94.20mm x 22.30mm

Accessories

• AC adapter

Power Supply and Consumption

• Power port
  • 5V/2A

• Max power consumption: ~6.0 W

Working Environment

• Operating temperature: 0 to 40 deg C
• Storage temperature: –20 to 70 deg C
• Relative humidity: 5% to 90% non-condensing
