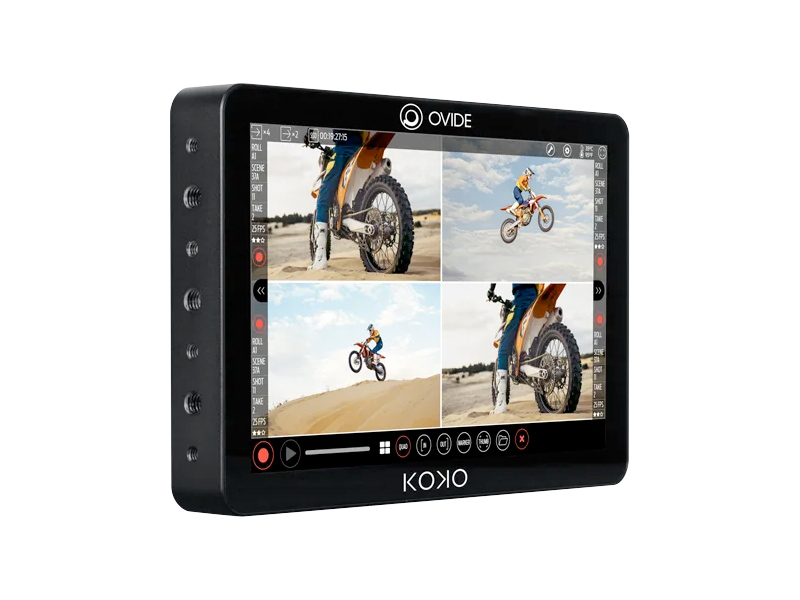

Ovide Koko 10" Video Assist Monitor

Code: OVI/PKOSSI001
$7,615.00

A recording monitor with video assist functions in your hand.

ENQUIRE NOW

Got a question about this product?
Send us a message

Low Stock

Limited Stock - Call for availability

Features

  • 10" HDR DCI-P3 Touchscreen
  • Records four 1080p60 cameras or one UHD camera
  • Records Apple ProRes in removable SSD
  • Digital cinema metadata workflow
  • 6× 12G-SDI in/out

Video assist functions

Rec-Stop-Play in/out, histogram, waveform, focus assist, zebra, false color, LUTs...

Automatic metadata

Digital cinema automatic metadata reading & recording: Focus, iris, zoom, balance, shutter, ISO, looks...

SSD recording

Records in removable SSD.

LUTs

Independent LUTs for each output.

No extra software

No additional software needed.

Integrations

All Ovide systems are 100% compatible with Koko.

Apple ProRes

Koko supports Apple ProRes.

Connections

Audio in/out and ethernet connection.

Camera batteries

Regular battery powered (V, Gold or B mount).

Specifications

Display type TFT LCD
Touchscreen Capacitive
Display siize 10.1”
Display resolution 1920×1200px / 8 bits / 16.7M colors
Display brightness 1000 nits
Display contrast 900:01:00
Recording Apple ProRes
Recording media Removable SSD disk (7mm thick)
Video inputs 4× 12G-SDI*
Video outputs 4× 12G-SDI*
TC SDI embedded i/o
Connect up to 4× 2K cameras or 1× 4K camera
Audio inputs SDI or analog XLR via break-out cable
Audio outputs SDI or analog XLR via break-out cable
USB USB-C
LAN Ethernet
Wifi -
Bluetooth -
Battery mount V-Lock / Gold / B
Power 12-17vdc
Consumption 25W
Battery hot swap -
UPS -
AC Power connection Lemo 2 Pin
Temperature range 32-104°F / 0-40°C
Dimensions 250×169×33mm
Weight 2.8 lb / 1.3 Kg
