14.4V/28.8V Bi-Voltage B-mount Battery

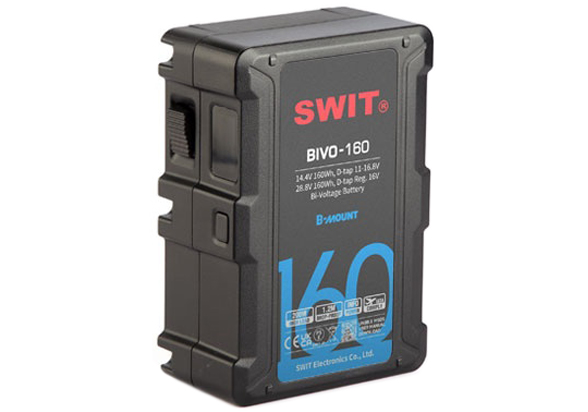

The BIVO-160 is a bi-voltage B-mount battery designed for ARRI cameras and various other compatible regular voltage cameras and cine gear. It offers 14.4V (10.8-16.8V) and 28.8V (22-33.6V) bi-voltage, and recognizes the ID pin resistor value of the B-mount plate to output 14.4V or 28.8V, without any misuse risks.
160Wh Capacity, 200W Load
The BIVO-160 battery has a 160Wh large capacity and can run for nearly 2 hours on the ARRI ALEXA 35 camera. Each passenger is allowed to carry up to 2 pieces to board an airplane. The battery can provide at least 200W constant high load for cine cameras and devices.
2x D-tap Power Output
The BIVO-160 provides 2x D-tap power sockets. When the battery works at 14.4V voltage, the D-tap outputs 11-16.8V. When the battery works at 28.8V voltage, the D-tap output is regulated at 16V, to power all kinds of camera-top devices.
BIVO Series Family
The BIVO series bi-voltage B-mount battery family has 98Wh, 160Wh, 196Wh, 290Wh in different sizes and capacities, for stabilizer handheld lightweight or long time power selection.
OLED Power Info Display
The BIVO-160 battery provides an OLED screen to display battery status and power information, including output voltage, power percentage, remaining running time, and protection warning code if any abnormality is detected.
100W Super Fast Charging
You can charge 4x BIVO-160 batteries simultaneously on the SWIT PC-P461B B-mount charger at 33.6V 3A, with 100W super-fast charging. The charger will take approximately 2 hours and 40 minutes to fully charge 4x BIVO-160 batteries.
LED Torch
You can double-press the Power Check button to switch on the LED torch on the rear side of the battery to help you find the B-mount plate in a dark production environment. Double-press the Power Check button again to switch the light off, and it will be automatically switched off after 30 seconds.
1.2 Meters Drop-off Proof
The BIVO-160 battery can survive a 1.2-meter drop-off at any angle, making it strong and reliable for filmmakers.
