The B-mount battery interface is a new industry standard endorsed by ARRI and the wider industry with high voltage support and reliable lock system.
28.8V for Cine Gears
The 28.8V (22-33.6V) high voltage power delivery is compatible with all ARRI cameras and lights, and high power cine equipment.
290Wh Large Capacity
The HB-A290B battery has 290Wh/10.05Ah (large capacity), and at least 250W/10A constant high load for cine cameras and devices.
D-tap, USB-A and USB-C
The HB-A290B provides:
- 2x D-tap regulated at 16V, 60W/3.8A load
- 1x USB-A 5V/2A
- 1x USB-C 60W input and 60W output.
USB-C 60W Power Output
You can power laptop via USB-C with the HB-A290B battery on set, supporting: 5V 3A, 9V 3A, 12V 3A, 15V 3A and Max 20V 3A, BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols. (For Macbook Air/13, Macbook Pro 13/15/16, Huawei Matebook E/12/X13/XPRO, Thinkpad, HP, ASUS, Dell and almost all laptops with USB-C ports).
USB-C 60W Charging Input
The HB-A290B battery can be charged by USB-C charger, supporting PD 15V 3A and 20V 3A, which can fully charge the 290Wh battery within 5.5 hours.
OLED Power Info Display
HB-A290B battery provides an OLED screen to display battery status and power information, includes power percentage, remaining running time, USB-A / USB-C status, and protection warning code if any abnormality detected.
100W Super Fast Charging
You can charge 4x HB-A290B simultaneously on SWIT PC-P461B B-mount charger, at 33.6V 3A, 100W super fast charging. The charger will take approx. 3 hours 50 minutes to fully charge 4x HB-A290B batteries.
LED Flash Light
You can double press the Power Check button to switch on LED flash light on the rear side of the battery, to help you to find B-mount plate in dark production environment. Double press the Power Check button again to switch the light off, and it will be automatically switched off after 30 seconds.
1.2 meters Drop-off Proof
HB-A290B battery can survive a drop from 1.2 meters at any angles, strong and reliable for filmmakers.
Key Features
- 28.8V ARRI Standard B-mount
- 290Wh/10.05Ah high capacity
- 250W, 10A constant high load
- 100W/3A fast charging
- D-tap 16V reg. output ×2
- USB-C 60W input and output
- USB-A 5V/2A output
- OLED power info display
- Built-in LED flash light
- Strong 1.2m drop off proof
- Multiple circuit protections

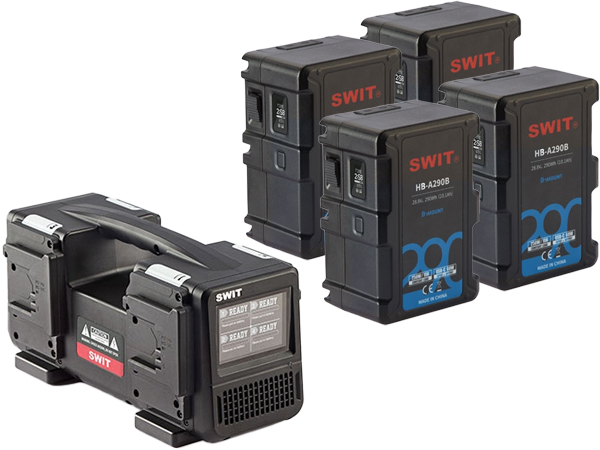

SWIT PC-P461B 33.6V 3A 4-Channel B-Mount Fast Charger
PC-P461B can charge 4x B-mount batteries simultaneously at 33.6V/3A, 100W per channel super fast charging. Save up to 60% charging time comparing to normal chargers.
Compatible with pure 28.8V B-mount batteries and 14.4V/28.8V bi-voltage B-mount batteries.
Charging Time
To charge 4x 290Wh B-mount batteries, the PC-P461B will take only 2 hours 30 minutes to charge to 80%, and 3 hours 50 minutes to fully charge.
3.5-inch Color LCD
PC-P461B provides a 3.5-inch color LCD panel to display charging progress, charging current & voltage, and battery cycle times of each channel.
Top Charging Indicators
Besides LCD screen info, you can check the charging status at a glance by the 4 large size indicators on the top of the charger.
Red on: 0-80%
Green flashing: 81%-99%
Green on: 100% fully charged
Red flashing: Charging error, check LCD info
Light Weight and Portable
The 4 channel fast charger PC-P461B has minimised the size and weight, and the new handle design makes the charger solid and easy to carry.
Key Features
- 4-ch simultaneous fast charging
- Charge pure 28.8V B-mount batteries
- Charge 14.4V/28.8V Bi-voltage B-mount batteries
- 33.6V/3A 100W super fast charging
- 3.5-inch colour LCD info display
- Battery cycle times display
- Top large charging indicators
