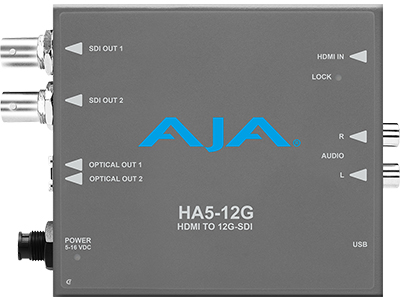

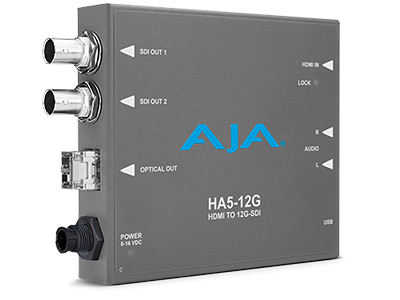

AJA HDMI to 12G-SDI Converters

Code: BLO/AJA-HA5-12G

AJA’s HA5-12G allows users to convert an HDMI 2.0 input to two 12G-SDI single link outputs. It includes two SDI DA outputs and transmits 12G-SDI on each SDI link, reducing cable runs when transporting 4K/UltraHD SDI. HA5-12G supports up to 8-Channels of audio from the HDMI source or 2-Channel analog audio (RCA), with eight or two channels of digital embedded audio on 12G-SDI.

For purchasing information

Overview

AJA’s HA5-12G allows users to convert an HDMI 2.0 input to two 12G-SDI single link outputs. It includes two SDI DA outputs and transmits 12G-SDI on each SDI link, reducing cable runs when transporting 4K/UltraHD SDI. HA5-12G supports up to 8-Channels of audio from the HDMI source or 2-Channel analog audio (RCA), with eight or two channels of digital embedded audio on 12G-SDI.

Features

Converts HDMI 2.0 to 12G-SDI, up to 4K 60p
Supports up to 60p input at 4:4:4/4:2:2/4:2:0
Supports 2SI (two sample interleave) 4K/UltraHD SDI mapping
Two 12G-SDI outputs
Embedded audio can be selected from the HDMI or Analog audio inputs
Fiber SFP models available
Configure via USB port and supplied Mini-Config software
Uses 5-20 VDC power (DWP-U-R1 universal power supply included)
Five year warranty
