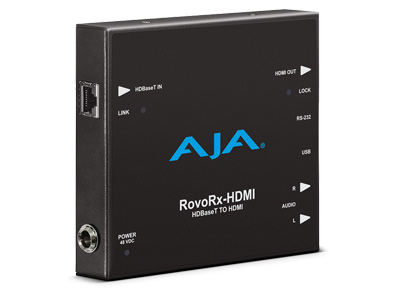

AJA Mini Converter - RovoRx-HDMI

Code: BLO/AJA-ROVORX-HDMI

RovoRx-HDMI is an UltraHD/HD HDBaseT receiver with integrated HDMI video and audio outputs specifically designed to receive RovoCam’s output. Receive the RovoCam’s video and audio up to 100m away from the camera, and output to HDMI TVs and devices, while also providing power back to the camera. RovoRX-HDMI is also suitable for use with compatible HDBaseT 3rd party devices providing support for uncompressed video, audio, power, and control, all over a single Cat 5e/6 cable, greatly simplifying cabling and systems integration.

For purchasing information

Enquire Now

Overview
Specifications

Features

1x UltraHD/HD HDMI output
1x RCA stereo audio output*
1x USB for signal extension
1x RS-232 for RovoCam control or VISCA support
1x HDBaseT connector (RJ-45)

_{*RovoCam Audio is not carried over to the HDMI output on
RovoRx-HDMI, it is only output via the RCA 2 channel connection.}

Flexible Connectivity

RovoRx-HDMI offers a lot of power for HDBaseT workflows, receiving uncompressed video and audio, offering bidirectional VISCA support and PoH for powering RovoCam, all across a single Cat 5e/6 cable. With an HDMI outpt, your options for distribution of RovoCam's UltraHD or HD imagery simplify any project's needs.

HDBaseT (RJ-45), Analog Video reference terminating Input
1x HDMI 1.4 Output
1x RCA Stereo Output
1x REF In/Out
1x 3.5mm TRS Input for RS-232 bidirectional signals
1x RS232 for RovoControl software

Compact and Portable

AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

RovoControl

RovoControl is free software from AJA for Mac, Windows or Linux, designed to be a simple application for controlling one or multiple RovoCams, offering easy control of all the main camera features like zoom, iris and focus. RovoControl uniquely offer electronic PTZ for moving an HD 1080p box around the UltraHD frame, allowing Pan and Tilt for HD output.

RovoControl v3.0 software features:

USB controller support for mapping RovoControl controls to a USB interface for game style controllers and USB joysticks
Exposure control for simpler camera control in the GUI
Improved preset command and control with global, camera and ePTZ preset control advancements
Import/Export of settings for sharing setups and con gurations
A high DPI UI mode for GUI on high rez displays
Crosshair selector for more refined Spot AE and Spot Focus control
Zoom control enhancements
A new summary line in the RovoControl UI provides an overview of basic settings for quick reference

Specifications

Video Formats

(UltraHD) 3840 x 2160p 25, 29.97
(HD) 1080p 50, 59.94
(HD) 1080i 50, 59.94
(HD) 720p 50, 59.94
(SD) 625i
(SD) 525i

Video Input

HDBaseT (RJ-45)

Video Output

HDMI 1.4b
*No embedded audio

Video Displays

HDBaseT Cable Run Performance for 4K/UltraHD/HD

W x H	Frame Rate	Color Sampling	Max. Cable Length		Max. Bit Depth
W x H	Frame Rate	Color Sampling	Cat 5e/6	Cat 6a/7	Max. Bit Depth
1920 x 1080	< 30 fps	4:2:2	100 meters	100 meters	16-bit
	> 30 fps	4:2:2	100 meters	100 meters	12-bit
	> 30 fps	4:2:2	70 meters	100 meters	16-bit
2048 x 1080	< 30 fps	4:2:2	100 meters	100 meters	16-bit
	> 30 fps	4:2:2	100 meters	100 meters	12-bit
	> 30 fps	4:2:2	70 meters	100 meters	16-bit
3840 x 2160	< 30 fps	4:4:4	70 meters	100 meters	8-bit
3840 x 2160	> 30 fps	4:2:0	70 meters	100 meters	8-bit
4096 x 2160	< 30 fps	4:4:4	70 meters	100 meters	8-bit
4096 x 2160	> 30 fps	4:2:0	70 meters	100 meters	8-bit

VESA Displays

VESA Display Resolutions and Performance

W x H	Frame Rate	Color Sampling	Max. Cable Length		Bits Per Pixel
W x H	Frame Rate	Color Sampling	Cat 5e/6	Cat 6a/7	Bits Per Pixel
640 x 480	to 85 fps	4:4:4	100 meters	100 meters	24-bits
800 x 600	to 120 fps	4:4:4	100 meters	100 meters	24-bits
1024 x 768	to 120 fps	4:4:4	100 meters	100 meters	24-bits
1152 x 768	-	4:4:4	100 meters	100 meters	24-bits
1280 x 768	to 120 fps	4:4:4	100 meters	100 meters	24-bits
1280 x 800	to 120 fps	4:4:4	100 meters	100 meters	24-bits
1280 x 1024	to 120 fps	4:4:4	100 meters	100 meters	24-bits
1360 x 768	to 120 fps	4:4:4	100 meters	100 meters	24-bits
1366 x 768	to 120 fps	4:4:4	100 meters	100 meters	24-bits
1400 x 1050	to 120 fps	4:4:4	100 meters	100 meters	24-bits
1440 x 900	to 120 fps	4:4:4	100 meters	100 meters	24-bits
1600 x 1200	to 75 fps	4:4:4	100 meters	100 meters	24-bits
1600 x 1200	85 to 120 fps	4:2:0	70 meters	100 meters	24-bits
1680 x 1050	to 85 fps	4:4:4	100 meters	100 meters	24-bits
1680 x 1050	120 fps	4:4:4	70 meters	100 meters	24-bits
1920 x 1200	to 120 fps	4:4:4	100 meters	100 meters	24-bits
1920 x 1440	to 60 fps	4:4:4	70 meters	100 meters	24-bits
2560 x 1600	60_RB	4:4:4	70 meters	100 meters	24-bits

Audio Output Analog*

1x RCA connector, 2-Channel unbalanced

*NOTE: This feature only works when used in conjunction with RovoCam

RS-232

1x 3.5mm TRS Input for RS-232/VISCA Bidirectional signals

User Interface

AJA RovoControl software (macOS and Windows)
Third party VISCA software or hardware controllers

USB

1x USB for firmware and additional control

Size (w x d x h)

4.03” x 5.2” x 0.94” (102.37 x 132.08 x 23.88 mm)

Weight

0.7 lbs (0.4 kg)

Power

RovoRx-HDMI only: 48V @ 125mA = 6W typical, 48V @ 156mA = 7.5W max
RovoRx-HDMI powering RovoCam: 48V @ 271mA = 13W typical, 48V @ 312mA = 15W max

Environment

Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
