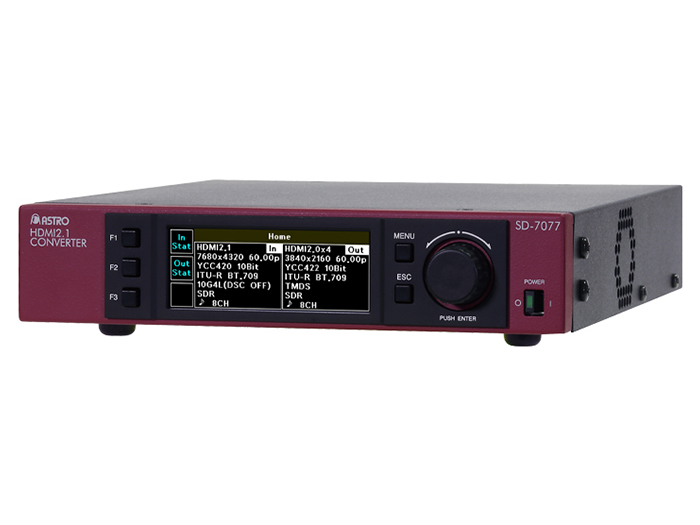

Astrodesign HDMI 2.1 - 2.0 (4Ch) Converter

Code: AST/SD-7077

This converter outputs 8K and 4K compatible HDMI 2.1 (FRL) signals converted into four HDMI 2.0 (TMDS) signals.

For purchasing information

Enquire Now

Overview
Specifications

This converter outputs 8K and 4K compatible HDMI 2.1 (FRL) signals converted into four HDMI 2.0 (TMDS) signals.

Useful for connecting to large LED screens and multi-display systems.

Key Features

HDMI 2.1(FRL)x1 to HDMI 2.0(TMDS) x4 output
Supports HDCP1.4 and 2.3
Compact and lightweight

Supports various formats

7680×4320 60p/59.94p/50p/30p/29.97p/25p/24p/23.98p
3840×2160 120p/119.88p/100p

HDMI2.1 input FRL10Gbps/ 4Lane, CTA-861-G, compliant, DSC non-compliant			HDMI 2.0 output (formats separated per cable) TMDS 18Gbps, CTA-861-G, HDCP compliant, DSC non-compliant
Format	Color Space	bit	Format	Color Space	bit
7680×4320 50p/59.94p/60p	YCBCR 4:2:0	8/10	3840×2160 60p/59.94p/50p	RGB/YCBCR 4:4:4	8
			3840×2160 60p/59.94p/50p	YCBCR 4:2:2	8/10/12
			3840×2160 30p/29.97p/25p/24p/23.98p	RGB/YCBCR 4:4:4	8/10/12
			3840×2160 30p/29.97p/25p/24p/23.98p	YCBCR 4:2:2	8/10/12
7680×4320 30p/29.97p/25p/24p/23.98p	RGB/YCBCR 4:4:4	8/10	3840×2160 60p/59.94p/50p	RGB/YCBCR 4:4:4	8
			3840×2160 60p/59.94p/50p	YCBCR 4:2:2	8/10/12
			3840×2160 30p/29.97p/25p/24p/23.98p	RGB/YCBCR 4:4:4	8/10/12
			3840×2160 30p/29.97p/25p/24p/23.98p	YCBCR 4:2:2	8/10/12
7680×4320 30p/29.97p/25p/24p/23.98p	YCBCR 4:2:2	8/10/12	3840×2160 60p/59.94p/50p	RGB/YCBCR 4:4:4	8
			3840×2160 60p/59.94p/50p	YCBCR 4:2:2	8/10/12
			3840×2160 30p/29.97p/25p/24p/23.98p	RGB/YCBCR 4:4:4	8/10/12
			3840×2160 30p/29.97p/25p/24p/23.98p	YCBCR 4:2:2	8/10/12
3840×2160 120p/119.88p/100p	RGB/YCBCR 4:4:4	8/10	1920×1080 120p/119.88p/100p	RGB/YCBCR 4:4:4	8/10/12
			1920×1080 120p/119.88p/100p	YCBCR 4:2:2	8/10/12
			1920×1080 60p/59.94p/50p	RGB/YCBCR 4:4:4	8/10/12
			1920×1080 60p/59.94p/50p	YCBCR 4:2:2	8/10/12
3840×2160 120p/119.88p/100p	YCBCR 4:2:2	8/10/12	1920×1080 120p/119.88p/100p	RGB/YCBCR 4:4:4	8/10/12
			1920×1080 120p/119.88p/100p	YCBCR 4:2:2	8/10/12
			1920×1080 60p/59.94p/50p	RGB/YCBCR 4:4:4	8/10/12
			1920×1080 60p/59.94p/50p	YCBCR 4:2:2	8/10/12
Audio Format
Sample Frequency	48kHz
Resolution	24bit
Number of Channels	Up to 8 channels
General Specifications
Power Requirements	DC 12V
Power Consumption	30W MAX
Operating Temperature Range	0～40℃
Operating Humidity Range	20～80％ RH (no condensation)
External Dimensions	210(W) × 44(H) × 210(D)mm (excluding protrusions)
Weight	2.0 kg
