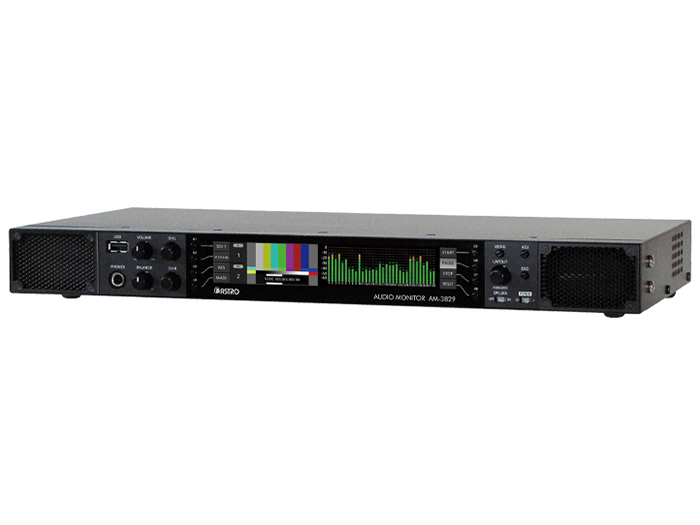

Astrodesign ST-2110 Audio Monitor

Code: AST/AM-3829

Audio monitor compliant with SMPTE ST 2110-30. Equipped with SDI, MADI, AES, and ANALOG interfaces, it can easily monitor audio signals in any scene.

For purchasing information

Enquire Now

Overview
Specifications

Audio monitor compliant with SMPTE ST 2110-30. Equipped with SDI, MADI, AES, and ANALOG interfaces, it can easily monitor audio signals in any scene.

Key Features

SMPTE ST 2110-30 compliant
Equipped with 12G-SDI, MADI, AES, and ANALOG input/output interfaces
Audio output remapping is available(Can be used as a gateway) *Excluding SDI output
Simultaneous audio monitoring of up to 32 channels
Audio level bar, loudness level bar, Lissajous,needle meter, spectrum analyzer, loudness measurement, loudness history, status, time code,two-screen multi, and video display function
Main unit preset and remapping set functions
User buttons that allow shortcut assignment
Downmix function
External control and alarm output via GPIO and LAN
Space-saving design

Interface
ST 2110		RJ-45×3 　1000Base-T Ethernet
	Supported Standards	SMPTE ST 2110-30 　Supports conformance Levels A/B/C SMPTE ST 2022-7 Class B SMPTE ST 2059-2
	Format	48kHz 24bit 64ch
	Control	AMWA NMOS IS-04:v1.2、-05:v1.0
SDI		12G/6G/3G/HD/SD-SDI×2 入出力
	Supported Standards	SMPTE ST 2082、2081、424M、292M、259M、272M Compliant
	Embedded Audio Format	48kHz 24bit 16ch×2
	Embedded Time Code	LTC、VITC
AES		BNC×4 Input/output 　Unbalanced AES, impedance: 75Ω
AES	Format	48kHz 24bit PCM 8ch
MADI		BNC×1 Input/output 　Impedance： 75Ω
MADI	Format	48kHz 24bit PCM 64ch
Analog		D-SUB25×1 Input/output 　8ch analog balance、YAMAHA,TASCAM interchange 　Input 　reference level: +4dBu, Max. non-clip level: +24dBu, 　Impedance: 600Ω, 100KΩ switching, A/D processing: 48kHz 24 bit 　Output 　measurement level: +4dBu *-20dBFS fixed, Max. non-slip level: +24dBu, 　Impedance: 150Ω, Adaptive load over 600Ω
DVI		DVI-D×1 　Single link, 1080p60Hz RGB fixed
DVI	Format	48kHz 24bit 8ch
Headphones		Large Ф6.3mm×1 　Max.output : 20mW（16Ω）
TIMECODE		BNC×2 Input
Contact　Control		D-SUB15×2 GPI×12、 GPO×12
LAN		RJ-45×1 　100Base-T Ethernet
General Specifications
Power Source	AC100-240V（50/60Hz）
Power Consumption	40W（MAX）
Operating Temperature	0～40℃
Operating Humidity	30～80％RH（Ambient temperature 0〜40℃ no condensation）
Dimensions	430（W）×44（H）×205（D）mm (Excluding protrusions) EIA 1U
Weight	3.6㎏
LCD Panel Specifications
LCD	a-Si TFT LCD
Display Color	1677 million colors
Contrast Comparison	800：1（typ）
Response Time	25ms（MAX: All White 90%→All Black 10%+MAX: All Black 10%→ All White 90%)
Viewing Angle	Up and Down 160°, Left and Right 160°
Maximum Brightness	900cd/㎡（typ）
Screen Size	6.6 inch
Resolution	1440（H）×240（V）Pixels
Pixel Pitch	0.114（H）×0.114（V）mm
