BirdDog Eyes P100 PTZ Camera with NDI

Code:
 ZOOM Compatible
Microsoft Teams Compatible

Built on BirdDog’s custom NDI silicon chip, the P100 PTZ camera is your entry into the world of full NDI. Featuring frame rates up to 1080p60, 10x optical zoom, and dual SDI and NDI outputs, P100 gives you professional level quality, performance, and total flexibility. 3.5mm audio connectors allow P100 to work with BirdDog Comms, the world’s first NDI audio intercom platform.

Product Options:

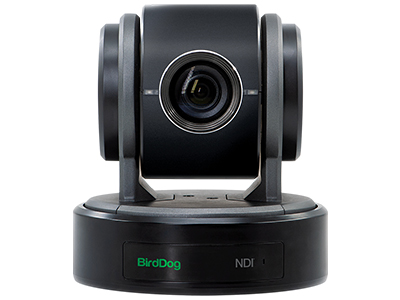

Code: BLO/BDP100B
$2,610.00

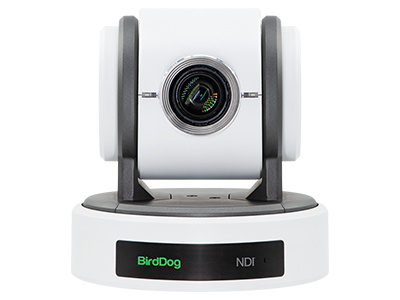

Code: BLO/BDP100W
$2,610.00

ENQUIRE NOW

Got a question about this product?
Send us a message

Only available while stocks last. Ends 31/12/2022. T&Cs apply.

Your entry into the world of NDI.

Built on BirdDog’s custom NDI silicon chip, the P100 PTZ camera is your entry into the world of full NDI. Featuring frame rates up to 1080p60, 10x optical zoom, and dual SDI and NDI outputs, P100 gives you professional level quality, performance, and total flexibility. 3.5mm audio connectors allow P100 to work with BirdDog Comms, the world’s first NDI audio intercom platform.

Broadcast Sensor. Incredible pictures.

P100 is teams up a true broadcast camera sensor with the BirdDog custom NDI chip to form a match made in silicon heaven. Champagne images on a beer budget because your productions deserve the best.

Extreme Speed. Optics done right.

Lightning auto focus. Insanely fast zoom. Precision optics. P100 has been engineered to meet the most demanding situations whether you are in a boardroom streaming your quarterly results, producing a live event for your church, or live streaming sports.

Dual output. NDI and SDI.

With NDI and SDI simultaneous outputs you can use the P100 is ready to go live with your full NDI workflow, or if you are still in an old school SDI workflow you can control via RS422, RS485, and RS232. Future proof your investment by using baseband video now and move to NDI when you are ready.

PTZ Keyboard. Take control.

Combine P100 with the BirdDog PTZ Keyboard and you have total control of all functions remotely. PTZ Keyboard is a full featured controller that can control up to 255 PTZ cameras on a single network and can scale to even the most complex installations. PTZ Keyboard can control P100 over NDI or by RS422 / RS232 when using in SDI mode.

Free Comms Lite. Upgrade to Comms Pro

P100 includes free Audio Intercom software, Comms Lite. Comms Lite supports four BirdDog devices and one Director. For more information on Comms Lite and how to get your free copy click here.

Need a more powerful Audio Intercom solution? Comms Pro gives you all the amazing features of Comms Lite plus allows you create you up to five groups, adds additional push to talk buttons for the director, ability to change groups on the fly, plus more. You can read more about it here.

Specifications

Camera
Image Sensor 1 / 2.86" CMOS 2.2MP
Lens 4.7-47mm
Optical Zoom 10x
Digital Zoom 2x
Horizontal Angle of View 60.9 degree (W) - 6.43 degree (T)
Aperture F1.6 (W) - F3.0 (T)
Min. Illumination 0.5 lux
Shutter Speed 1/1 - 1/30000s
Focus Auto, Push, Manual
White Balance Auto, Indoor, Outdoor, Manual, OPW, ATW
Exposure Auto, Manual, Shutter/Iris Priority
Backlight Comensation YES
Mechanical
Pan Movement Horizontal: +/-350 degrees continuous pan
(Zoom Adaptive Speed Range: 0.05 Degree -100 Degree /S )
Tilt Movement Vertical: +90 degrees to -30 degrees
(Zoom Adaptive Speed Range: 0.05 Degree -72 Degree /S)
Preset Positions 128 (Speed adjustable: Up to 150o/s)
Preset Speed 0-5 Level adjustable
Environmental Indoor
Video Interface
Video Output NDI/SDI
Video Formats 1080P 60, 59.94, 50, 29.97, 25
1080i 60, 59.94, 50
720p 60, 59.94, 50, 29.97, 25
Audio I/O 3.5mm Audio In (Stereo)
3.5mm Audio Out (Stereo)
Control Interface
IP PTZ Control NDI Control (auto configuring)
Serial PTZ Control 2x RJ45: RS232/RS422/RS485
Serial Control Protocol VISCA / Pelco D
Power & Dimensions
Operating Temperature 14 degree F - 122 degree F (-10 degree C - +50 degree C)
Operating Humidity =< 80%
Power Input 12vDC
Dimensions 145 x 145 x 154mm (5.70 x 5.70 x 6.0")
Weight 1.0kg (2.20 lb)
Network
Video Compression Full NDI - i-frame high quality low latency NDI for production
Network Protocol DI - Discovery, configuration and control
Web Control interface Full control via Web/Mobile UI including Scene presets
