DJI Focus Pro Motor

Code: CRK/DJIFOCUSPROMOTOR
$180.00

The motor speed has increased by 30% for more responsive control over focus, zoom, and aperture.

ENQUIRE NOW

Got a question about this product?
Send us a message

Special Order Item

Usually ships in 1-2 weeks

Request ETA

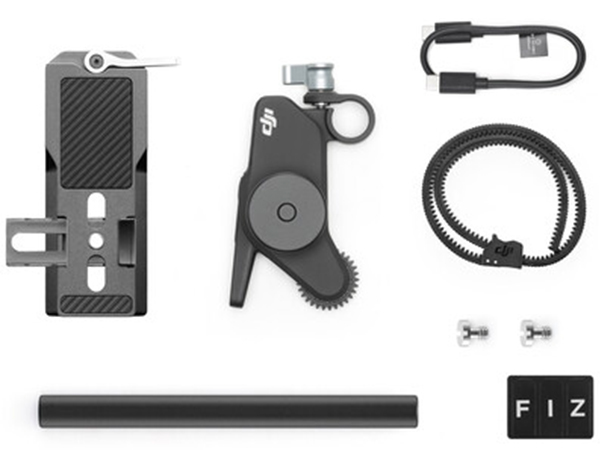

What's In The Box?

  • DJI Focus Pro Motor
  • Rod Mount Kit
  • Focus Gear Strip
  • Multicamera USB-C Control Cable (11.8")
  • 15mm Rod
  • 1/4"-20 Screw
  • FIZ Sticker
  • Limited 1-Year Manufacturer Warranty
  • The motor speed has increased by 30% for more responsive control over focus, zoom, and aperture. The motor is compatible with 15mm universal rods. The latency is as low as 10 milliseconds, ensuring swift control response when paired with the DJI Focus Pro Hand Unit. The motor features a built-in RF antenna that allows for linking with the DJI Focus Pro Hand Unit. When paired with the DJI Focus Pro Grip, the grip can power the motor via the USB-C port.

    Tips

    The motor can be powered through third-party devices. Do not use an extra device to power the DJI Focus Pro Motor when it is already powered (e.g., by the DJI Focus Pro Grip), as this may cause device damage.

    DJI RS 4 Pro can be used with up to two motors simultaneously, while DJI RS 4 only supports one motor.

    Specifications
    Compatibility DJI RS 3 Gimbal Stabilizer / RS 4 Gimbal Stabilizer / RS 3 Pro Gimbal Stabilizer / RS 4 Pro Gimbal Stabilizer / Focus Pro Grip / Focus Pro Hand Unit / Ronin 4D Flex
    Max Transmission Distance 524.9' / 160 m
    Gear Specs 30 Teeth, 0.8 MOD
    Max Torque 0.6 Nm
    Speed 300 rpm (Max)
    Inputs / Outputs
    USB I/O 1 x USB-C Female Input
    Wireless
    Wireless 2.4 GHz Radio/RF
    *Built-In
    Power
    Power Source USB
    DC Input Power 6.6 to 17.2 VDC
    Environmental
    Certifications CE, FCC
    Operating Temperature -4 to 113°F / -20 to 45°C
    Physical
    Mounting 1x 15mm Rod
    1x 1/4"-20 Screw
    1x Rod Mount Kit
    Cable Length> 11.8" / 30 cm
    Dimensions 3.9 x 2.4 x 1.3" / 100 x 61 x 34 mm
    Weight 4.3 oz / 123 g
    Packaging Info
    Package Weight 0.715 lb
    Box Dimensions (LxWxH) 8.2 x 3.6 x 1.7"
