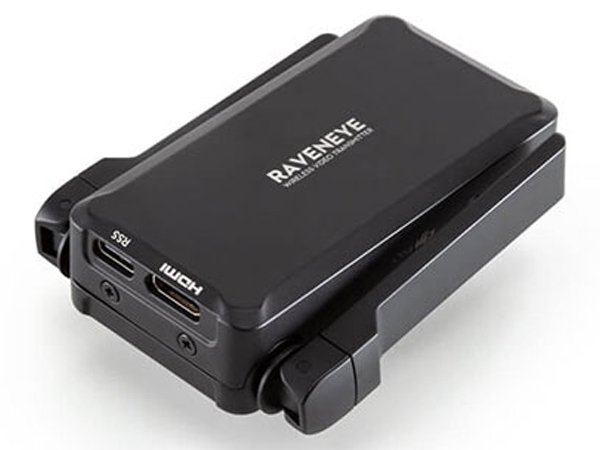

DJI Ronin Raveneye Image Transmission System

Code: CRK/DJIRONIN-S2PT1
$210.00

To use the ActiveTrack 3.0 the DJI RS2 will need this special RavenEye Image Transmission System.

ENQUIRE NOW

Got a question about this product?
Send us a message

Special Order Item

Usually ships in 1-2 weeks

Request ETA

What's In The Box?

  • 1x Image Transmitter
  • 1x Cold Shoe to 1/4''-20 Adapter
  • 1x USB-C Charging Cable
  • 1x USB-C Power Cable
  • 1x Mini-HDMI to HDMI Cable
  • 1x Mini-HDMI to Mini-HDMI Cable
  • 1x Mini-HDMI to Micro-HDMI Cable
  • 2x M4 Screw
  • 1x Allen Wrench (3 mm)

To use the ActiveTrack 3.0 the DJI RS2 will need this special RavenEye Image Transmission System. The DJI Ronin RavenEye Image Transmission System allows live camera view and enables ActiveTrack 3.0 on DJI RS2, transmitting the camera live view directly on the touchscreen and Ronin app. The system mounts to the gimbal and connects to the camera via HDMI cable and to the smartphone via Wi-Fi.

Compatibility

  • DJI RS3 Pro
  • DJI RS3
  • DJI RS2
  • DJI RSC2
Specifications
Working Frequency: 2.400-2.4835 GHz,5.725-5.850 GHz
Weight: 126 gDimensions: 82 mm x 63 mm x 24 mm
Transmission Power (EIRP): 2.400-2.4835 GHz:
<25dBm (FCC)
<20dBm (CE/SRRC/MIC)
5.725-5.850 GHz:
<25dBm (FCC/SRRC)
<14dBm(CE)
