Laowa Ranger Full Frame Cine Lenses

LAOWA Mega Sale

Save up to 25% on selected LAOWA cine lenses

Offer ends December 30

Code:

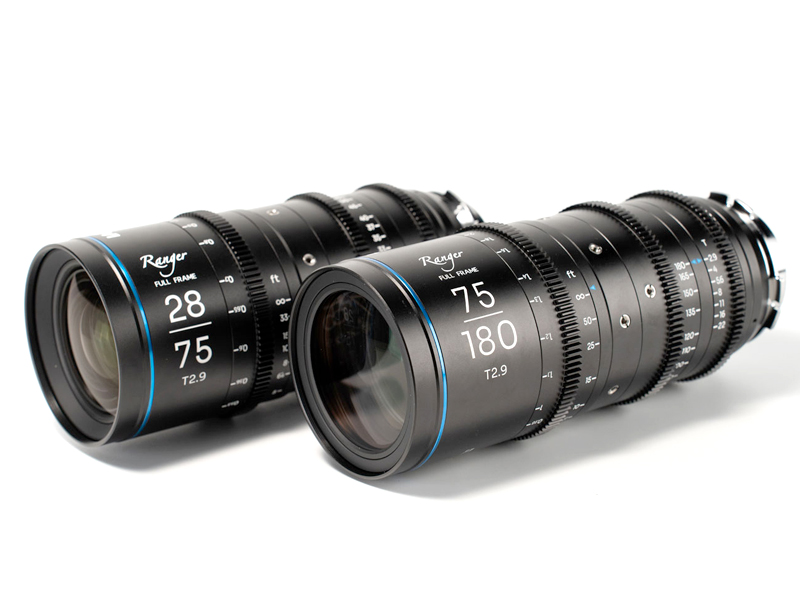

Laowa Ranger is the most affordable, compact & high-performance professional cine zoom lens for a Full Frame cine cameras.

Product Options:

Code: RAD/RAN2875PLEF
$5,500.00
Code: RAD/RAN75180PLEF
$5,500.00
Code: RAD/RAN2875BPLEF
$10,590.00

ENQUIRE NOW

Got a question about this product?
Send us a message


Laowa Ranger is the most affordable, compact & high-performance professional cine zoom lens for a Full Frame cine cameras.

The versatile and desirable 28-75mm lens captures spectacular wide-angle vistas to character-driven shots and dialogue-driven scenes.

The Long focal length 75-180mm is a popular range for portraits/ wildlife shooting where filmmakers would like to stay a distant from the subject.

These Versatile zoom lenses have a high level of optical capability to support professional productions.

Optional mirrorless mounts (Sony FE, Canon RF Nikon Z, and L Mount) are available for purchase.

Filter thread

77mm filter thread with 80mm dimension compatible with the matte box with a set-up ring

Focus throw and zoom

100° zoom throw for both focal lengths
270° long focus throw for precise focusing when the lens is wide open

Back focus adjustment

Simple and easy focus adjustment, shims also provided

Box kit

Single and dual rangers kits come in a dedicated hard case with EF and PL mounts. (single lens kit case only holds one lens and accessories)

Key Features

  • Full Frame Coverage
  • Light & Compact
  • Versatile Zoom Range
  • Constant T2.9
  • Excellent Parfocal Design
  • Extremely Close Focusing Distance
  • Invisible Focus Breathing
  • Professional Cine Housing

Specifications

Ranger 28-75mm T2.9 FF Ranger 75-180mm T2.9 FF
Focal Length 28-75mm 75-180mm
Aperture Range T2.9-T22
Image Circle Diameter ø 43.2mm
Zoom Ratio 2.7x 2.4x
Format Full Frame
Lens Structure 22 elements in 18 groups 14 elements in 14 groups
Aperture Blades 11 blades
Flange Distance Arri PL: 52mm / Canon EF: 44mm
Focus Throw 270˚
Aperture Throw 100˚
Focus Indicator Imperial/Metric
Min. Focusing Distance .49mm (1' 7.33") .89m (2'7.5")
In-Focus Driving Mode Manual (MF)
Filter Thread ø 77mm
Dimensions ~ø 80x179,3mm ~ø 80x189.5mm
Weight ~1.4kg ~1.4kg
Mount Default Arri PL / Canon EF
Add on: Sony E / Nikon Z / Canon RF
