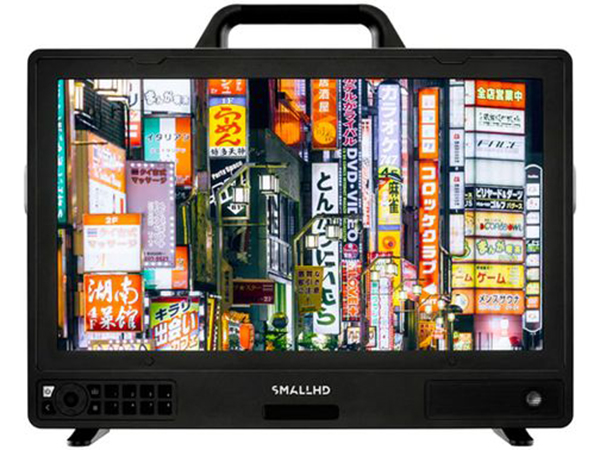

Add a professional UHD 4K monitor to your DIT station, video village, or studio with the Cine 18"" 4K High-Bright Production Monitor. Featuring the updated SmallHD OS4.1, the monitor provides a crisp 4K image with 3840 x 2160 resolution, 10-bit (8+2 FRC) colour intelligence, 1300:1 contrast ratio, and 1100 cd/m² brightness for use outdoors.
The edge-lit display features four 12G/6G/3G/HD-SDI inputs and four 12G/6G/3G/HD-SDI outputs, as well as one HDMI 2.0 input. All functionality of the monitor is accessed via the innovative Page Builder in OS4.1, which features a full-featured UI, pre-configured pages, and page tabs. Other monitoring features include a calibration wizard, false colour overlays, waveform, pixel zoom, focus assist, peaking, and improved function buttons.
The monitor can be mounted using the VESA pattern on the back or by 1/4""-20 threads around the top and sides of the monitor. You can power the monitor using a 4-pin XLR input or via a separately available dual V-mount or Gold mount battery plate, and they are hot-swappable. Data inputs and output can be performed using the SD card slot to load 3D LUTs, and the monitor also features an RJ45 Ethernet port and an RJ45 GPI port for additional data and configuration. There is a 3.5mm headphone output to monitor the embedded audio.
Key Features:
- High-Bright 4K Monitor for any production scenario
- 3840 x 2160 Resolution
- 1000:1 contrast
- 1100 nits Brightness
- Inputs: 4x 12G-SDI , 1x HDMI 2.0
- Outputs: 4x 12G-SDI, 1x HDMI 2.0
- 4K HDR waveform and scopes
- Dual & Quad-View
- Monitor Calibration Wizard
- Hot-swappable dual inputs
