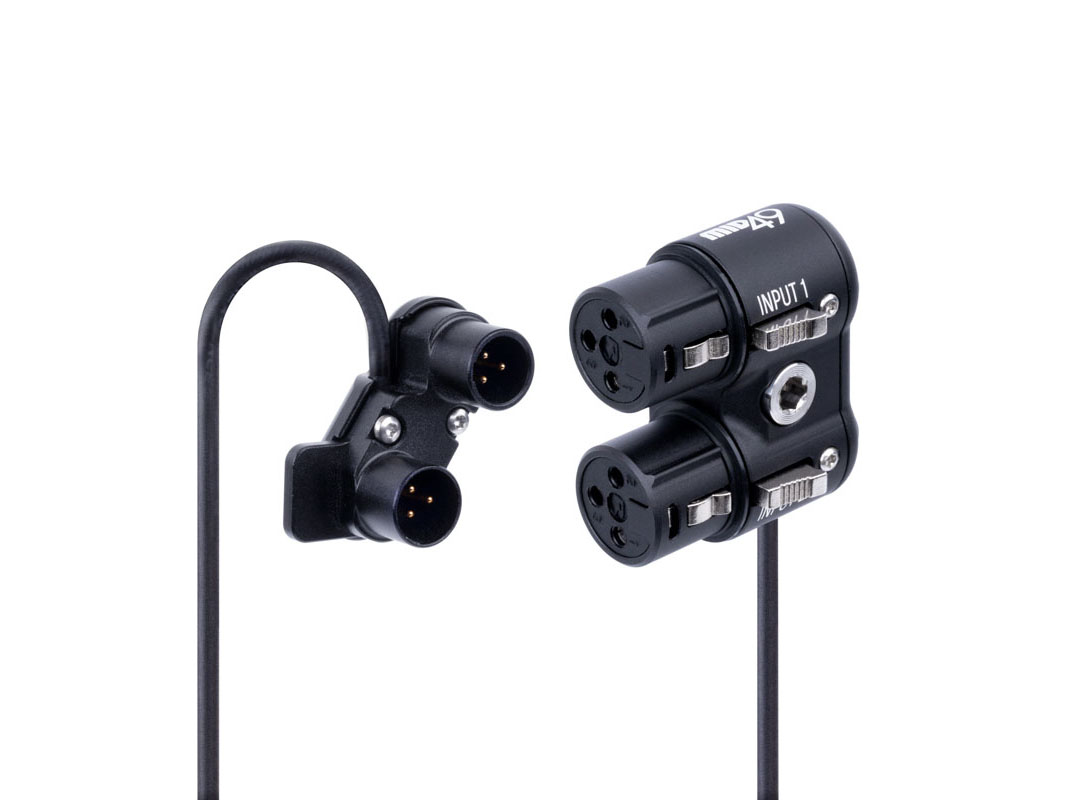

Audio Breakout Audio Breakout AB-6 (Blackmagic 6K Full Frame, Pocket Pro, Pocket G2) is a passive adapter that converts the camera's two mini XLRs to two standard, full-size XLRs. Attaches by a captive 1/4-20 screw and rubber pad to the camera body or 3rd party cages.
Two M4 threaded holes in 20mm ARRI spacing are available to add Breakout Box Side Mounting Bracket (ARRI 3/8-16) (sold separately), which allows AB-6 to attach using a 3/8-16 screw with ARRI locating pins.Attaches easily to rods using the Single 15mm Rod Clamp or Single 19mm Rod Clamp (sold separately).
12 inch (30.5 cm) cable length with custom low profile right angle mini XLR connector.
Compatible with the Blackmagic Design 6K Full Frame (CINECAM60KLFL), Cinema Camera 6K Pro (CINECAMPOCHDEF06P) and Pocket Cinema Camera 6K G2 (CINECAMPOCHDEF6K2).
Product Weight: 2.00oz (56g)Product Dimensions (WxLxH): 1.36 x 14.25 x 1.09in (35 x 362 x 28mm)
