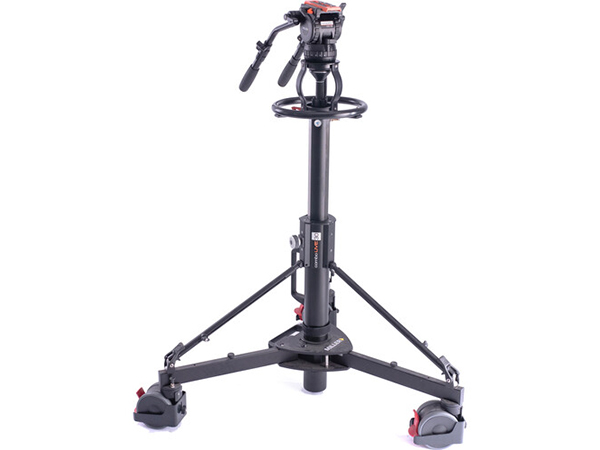

The CXV14 Combo Live 30 Pedestal System with Versa Plate from Miller combines the CXV 14 fluid head with the 100mm ball Combo Live 30 pedestal. This live-broadcast pedestal system supports rigs weighing up to 30.9 lb and provides a 17.7" elevation stroke on a pneumatic column extending from 38.3 to 60.5". System features include the side-loading Versa plate with 3.9" travel, an 11.6" steering wheel, locking 4.9" wheels, 16 counterbalance settings, and both linear and radius dolly tracking.

Miller Versa CXV14 Fluid Head with Pan Handle

The Versa CXV14 Fluid Head with Pan Handle from Miller is designed to accommodate a wide payload range, 16 steps of counterbalance with CB Plus for fine adjustments, as well as five selectable pan/drag settings. Pan, tilt, and counterbalance can all be set to zero, enabling even the lightest of cameras to be supported. Maxed out, this head is rated to support camera setups up to 30.9 lb, adequate for a DSLR or mirrorless camera, a cinema camera, or a ENG camcorder. Securing your camera or rig is easy. The sideload quick release plate design enables you to simply drop in your camera without the alignment issues posed by rear-loading variations. The plate offers 3.9" of sliding range to balance your rig.

To survive fast-paced shooting environments, the CXV14 is die-cast from a lightweight, yet durable metal alloy with composite polymers and precision ball bearings for smooth mechanical operation. Even in harsh conditions, the CXV14 will perform reliably. The base of the CXV14 is a 100mm ball for mounting to compatible tripods and grip equipment. An illuminated bubble level makes it easy to level the CXV14 in dark environments. A fixed-length pan handle is included, and a second rosette is available for attaching an optional second pan handle.

Miller Telescopic Pan Handle for ArrowX Heads

This Telescopic Pan Handle from Miller is compatible with ArrowX series video heads. The black alloy handle extends from 15.4 to 23.2" in length, offering 7.9" of adjustment. Handle features include a long locking lever for a secure connection and a comfortable rubber grip.

Compatibility

• Miller ArrowX series heads

Miller Combo Live 30 Pedestal System for 100mm Fluid Heads (66 lb Payload)

The Combo Live 30 Pedestal System from Miller is a lightweight pedestal and floor dolly system for 100mm ball fluid heads. With an adjustable air column system for quick payload balancing, the pedestal features a 31.8 to 54.1" height adjustment and a load capacity of 66 lb. Dual ball bearing wheels individually fitted with axial brakes deliver even and smooth movement, with multiple wheel locking positions for linear or radius dolly tracking. The Combo Live 30 is simple and easy to set up and use with a drag control knob pressure column and a lock lever pressure column. It is also compact and portable with a carry handle for the column and dolly.

• Precise, smooth, and low noise in-shot column with 17.7" stroke
• Air adjustable column system for quick payload balancing
• Independent dolly wheel axle brake system eliminates wheel tire indents
• 4.9" dual ball bearing wheels for quick swivel-turn action
• Center hub locking column with adjustable spider arm supports
• Sturdy adjustable cable guards
• Portable hand pump with pressure gauge
• In the Box
• Miller Versa CXV14 Fluid Head with Pan Handle
• Quick Release Sideload Plate
• Pan Handle
• Limited 3-Year Manufacturer Warranty
• Miller Telescopic Pan Handle for ArrowX Heads
• Limited 3-Year Manufacturer Warranty
• Miller Combo Live 30 Pedestal System for 100mm Fluid Heads (66 lb Payload)
• Limited 3-Year Manufacturer Warranty
