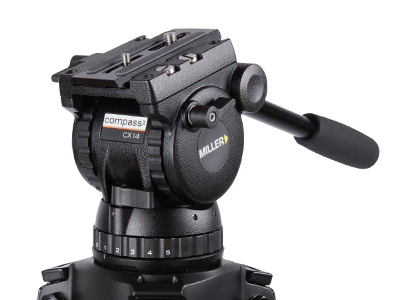

Miller CompassX CX14 Fluid Head

Code: MIL/1097
$3,310.00

The CX14 designed for the creative professionals needing a stable, higher capacity solution, it is capable of balancing from a broadcast down to a DSLR camera, thanks to CB Plus technology and Miller's precision fluid drag system.

ENQUIRE NOW

Got a question about this product?
Send us a message

Special Order Item

Usually ships in 1-2 weeks

Request ETA

The CX14 is designed for the creative professionals needing a stable, higher capacity solution, it is capable of balancing from a broadcast down to a DSLR camera, thanks to CB Plus technology and Miller's precision fluid drag system.

The CX14 employs CB PlusTM technology providing 16 positions of counterbalance, 5 selectable fluid drag positions + 0 settings of Miller's fluid pan and tilt drag with 60mm of camera plate travel, enabling you to match your camera configuration to any shot.

Constructed of lightweight high-strength die-cast alloy and tough composite polymers and featuring precision ball bearings Miller have combined robust engineering with silk smooth pan and tilt camera movements. Built for extreme conditions the CX14 performs consistently over a wide range of temperatures and environments giving you confidence when out on a shoot.

Key Features

  • Compact, lightweight and versatile.
  • 5 selectable drag positions (pan and tilt) + 0.
  • 16 selectable counterbalance positions, with CB Plus for precise counterbalance.
  • Perfect for payloads to 0 - 14.0 kg (0 - 30.9 lbs).
  • Fluid drag system with smooth start and soft stop technology & balanced diagonal transition.
  • Slim inline radial ring controls.
  • Illuminated bubble level.
  • Removable ball level stud for flat base mounting (sliders) with 3/8” screw hole.
  • Precise floating pan-tilt caliper locks ensure bounce free on-off performance.
  • Side loading camera plate with 60mm travel.
  • Robust construction for rugged outdoor shooting conditions.
  • Optional second pan handle mount.
  • 2 side mounts for accessory blocks.
  • 3 year warranty.

Specification

Payload Range 0-14.0 kg (0-30.9 lbs)
Weight 2.5kg (5.5lbs)
Counterbalance Positions 16 selectable positions
Pan Tilt Drag 5 selectable fluid drag positions + 0
Pan Tilt Locks Positive lock calliper brake system
Tilt Range +90° / -75°
Pan Range 360°
Camera Platform Quick release camera plate (Euro)
Sliding Range 60mm (2.4")
Mounting Base Ø100mm (3.9") ball levelling with 3 x M5 holes for flat base mounting
Height Above Bowl 150mm (6.0")
Illuminated Controls Bubble level, pan-tilt drag controls
Pan Handle Fixed 390 mm (15.4”)
Attachment -40° to +65°C (-40° to +150°F)
