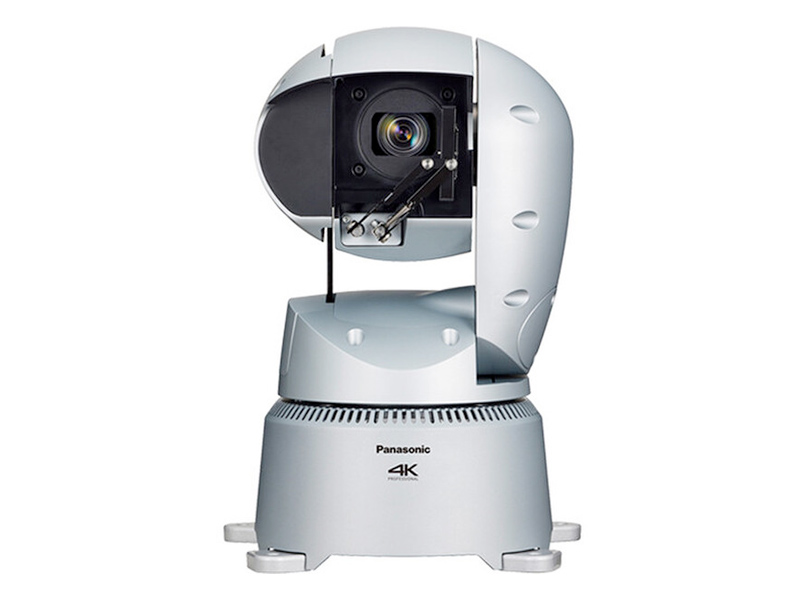

Panasonic AW-UR100 4K Outdoor Integrated Camera

Code: GEC/AW-UR100GJ

$25,155.00

The AW-UR100 is a 4K PTZ camera that captures high-precision images in 4K/60p supported by D.I.S.S (Dynamic Image Stabilizing System).

Add to Cart

Found this item cheaper elsewhere? Let us know

ENQUIRE NOW

Special Order Item

Usually ships in 1-2 weeks

Request ETA

Overview
Specifications

Now You Can Remotely Capture Images in All Kinds of Outdoor Environments. Outdoor-ready Integrated 4K PTZ Camera That Captures Crucial Moments.

Watching live broadcasts of outdoor sports and live performances through streamed video has become a popular form of entertainment. As the use of video for a variety of different business activities and daily life has become common, the capability to produce and utilize video with limited resources is becoming more important.

The AW-UR100 is a 4K PTZ camera that captures high-precision images in 4K/60p supported by D.I.S.S (Dynamic Image Stabilizing System). It is durable enough to withstand harsh outdoor environments for on-site management such as airports and warehouses in coastal regions, on ships, as well as for live broadcasts during heavy snowstorms or typhoons. A wide range of protocols and I/Fs enable flexible and efficient system construction and reduce the risk of missing shots and mistakes, providing peace of mind for video producers.

Features

High-precision Image Capture That Never Misses Those Crucial Moments

Industry's first IP65-compliant, outdoor-ready integrated remote camera for 4K60p shooting
24x optical zoom / 74.1° horizontal wide-angle images
Equipped with three types of image stabilizing systems: OIS, EIS, and D.I.S.S. (Dynamic Image Stabilizing System)
Cropping (+ Zoom) Function

Durability for Continuous Shooting Even in Harsh Environments

Passing Six Rigorous Durability Tests
Equipped with a Defroster (-15°C)
Equipped with a Wiper on the Lens
Compatible with free Panasonic software

Flexibility in System Construction

Various I/F and Supported Protocols
Compatible with FreeD, enabling construction of AR/VR systems

Specifications

General
Power Requirements	DC 12 V to 21.8 V ±10 % (10.8 to 24.0 V)
PoE++	IEEE802.3bt compliant: DC42-57V (camera end) (Compatible with software authentication (LLDP communication))
Current Consumption	3.1 A to 5.5 A (DC IN connector), 1.2 A (PoE++ power supply)
Ambient Operating Temperature	-15 °C to 45 °C (5 °F to 113 °F)*1
Allowable Humidity Ranges	10% to 100%*2
Storage Temperature	-20 °C to 55 °C (-4 °F to 131 °F)
Mass	Approx. 9.0 kg (19.84 lb)
Dimensions (W x H x D)	258.0 mm x 367.0 mm x 392.0 mm (10.16 inches x 14.45 inches x 15.43inches) (including protrusions and cable cover)
Finish	Silver, salt resistant coating
Waterproof and Dust Proof	IP65 compliant
Maximum Permissible Wind Speed	15 m/sec: Operates normally, 50 m/sec: Operation possible, 60 m/sec: No damage
Wiper	Installed as standard
Heater	Installed as standard
Defroster	Installed as standard
Controller Supported	AW-RP150GJ, AW-RP60GJ, AK-HRP1010GJ, AK-HRP1000GJ, AK-HRP1015GJ (Not available in some areas), AK-HRP250GJ
Camera Unit
Imaging Sensors	1/2.5-type 4K MOS x 1
Effective Pixels	Approx. 8,290,000 pixel
Lens	Motorized Optical 24x zoom, F1.8 to F4.0 [f=4.12 mm (5/32 inches) to 98.9 mm (3‑29/32 inches); 35 mm (1‑3/8 inches) equivalent: 25.0 mm (31/32 inches) to 600.0 mm (23‑5/8 inches)]
Zoom	• Optical zoom: 24x • i.Zoom UHD 28x, FHD 36x • Digital extender: 1.4x, 2x • Digital zoom: 10x
Conversion Lens	Not supported
Angle of view range	Horizontal: 74.1° (wide) - 3.3° (tele) Vertical: 46.0° (wide) - 1.9° (tele) Diagonal: 81.8° (wide) - 3.8° (tele)
Optical Filter	Through, 1/4, 1/16, 1/64, IR through (IR through is used as "night mode")
Focus	Switching between auto and manual
Focus Distance	Entire zooming range: 1200 mm (3.9 ft), wide end: 100 mm (0.33 ft)
Color Separation Optical System	1MOS
Minimum Illumination	3 lx (F1.8, 59.94p, 50 IRE, 42 dB, without accumulation)
Horizontal Resolution	1,500 TV Typ (Center area, UHD mode, wide)
Gain Selection	Auto, 0 dB to 36 dB*3(Super Gain function equipped : 37 dB to 42 dB)
Frame Mix	Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB*4
Electronic Shutter Speed	59.94p/59.94i	1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
	29.97p	1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
	23.98p/24p	1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
	50p/50i	1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
	25p	1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Synchro Scan	59.94p/59.94i	60.0 Hz to 7200 Hz
	29.97p	30.0 Hz to 7200 Hz
	23.98p/24p	24.0 Hz to 7200 Hz
	50p/50i	50.0 Hz to 7200 Hz
	25p	25.0 Hz to 7200 Hz
Gamma	HD / NORMAL / CINEMA1 / CINEMA2 / STILL LIKE * Black Gamma is not supported
White Balance	• ATW: 3200 K, 5600 K (ATW Speed 3-stage variables.) • AWB: AWB-A / AWB-B • VAR (selectable between 2000 K and 15000 K by designating a value)
Chroma Amount Variability	OFF, -99 % to 99 %
Scene File	Full Auto, Scene1, Scene2, Scene3
Output format	4K	2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Native), 2160/23.98p (Native)
Output format	HD	1080/59.94p, 1080/50p, 1080/29.97p (Native), 1080/29.97PsF, 1080/25p (Native), 1080/25PsF, 1080/23.98p over 59.94i, 1080/24p (Native), 1080/23.98p (Native), 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
Synchronization System
	Internal/External synchronization (BBS/Tri-level sync)
Input
Input Connector	DC IN	DC 12 V IN
Input Connector	G/L IN	BBS (Black Burst Sync), tri-level sync supported
Output
Video Output	Optical	SFP+ compliant (Single Fiber)*5 Please use MSA (INF-8074) standard compatible product.
	12G SDI OUT	SMPTE2082-1, SMPTE424M, SMPTE292M compliant/75Ω (BNC x 1)*6
	3G SDI OUT	SMPTE424M, SMPTE292M / 75Ω (BNC x 1)*6
Input/Output
Input/Output Connector	LAN	LAN terminal for IP control (RJ-45)
	RS-422	CONTROL IN RS422A (RJ-45)
	D-sub 9 pin	External washer control terminals (#1: Washer_HOT, #6: Washer_COLD)
	D-sub 9 pin	MIC/LINE Input terminals (#5: CH1-HOT, #4: CH1-COLD, #3:CH1-GND, #9: CH2-HOT, #8: CH2-COLD, #7:CH2-GND) MIC/LINE Input Compatible (SDI/IP) AAC compatible (compatible with IP only) Balanced input 2ch • During MIC input Input level: -40 dBu Input impedance: Approx. 10 kΩ Phantom power compatible, supply voltage: 47 V ± 2 V • During LINE input Input level: 0 dBu Input impedance: Approx. 10 kΩ • Input volume variable range: -30 dB to 20 dB (1 dB step) • Embedded audio output level: -12 dBFS • Sampling frequency: 48 kHz • Quantization bit rate: 24bit (SDI), 16bit (IP)
Pan-tilt Head Control
IP Connecting Cable	LAN cable78(category 5e or above, straight cable) Max. 100 m
AW Protocol Connecting Cable	LAN cable*7(category 5e or above, straight cable) Max. 100 m
Pan-tilt Head Unit
Installation Method	Stand-alone (Desktop) or suspended (Hanging)
Pan/tilt Operation Speed	Speed range: 0.08°/s ～60°/s (Normal mode) • 3 speed modes installed Normal: 60°/s, Fast1: 90°/s, Fast2: 180°/s
Panning Range	±175°
Tilting Range	-30° to 210°
Quietness	NC45 or less
Vibration Correction	D.I.S.S. (Dynamic Image Stabilizing System)
Supported Operating Systems and Web Browsers
Supported Operating Systems and Web Browsers	Windows	Windows®10 Microsoft Edge Google Chrome
	Mac	MacOS 13 MacOS 12 MacOS 11 Safari Google Chrome
	iPhone / iPad / iPod touch	iOS, Safari, iPadOS
	Android	Android OS Google Chrome
IP Streaming
Image Streaming Mode	JPEG (MJPEG), H.264, H.265, High Bandwidth NDI®
Image Resolution	3840x2160, 1920x1080, 1280x720, 640x360, 320x180
Image Transmission Setting (JPEG)	Frame Rate: Maximum 30 fps Image quality (Fine / Normal)
Image Transmission Setting (H.264)	Transmission Type	Unicast port (AUTO) Unicast port (MANUAL) Multicast port
	Transmission mode (Excluding UHD)	Constant bit rate Frame rate Best effort
	Frame Rate	[60Hz] 5fps / 15fps / 30fps / 60fps (UHD: 30fps, 60fps) [50Hz] 5fps / 12.5fps / 25fps / 50fps (UHD: 25fps, 50fps)
	Max Bit Rate	512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps / 32768kbps / 40960kbps / 51200kbps / 76800kbps
Image Transmission Setting (H.265)	Transmission Type	Unicast port (AUTO) Unicast port (MANUAL) Multicast port
	Frame Rate	[60Hz] 30fps [50Hz] 25fps
	Max Bit Rate	8192kbps / 12800kbps / 25600kbps / 51200kbps / 76800kbps
Audio Compression Type	AAC-LC, 48 kHz / 16 bit / 2ch
Supported Protocols	Network Protocol	ICMP, ARP, GARP, MLD
	Transmission Protocol	TCP/IP, UDP/IP
	Applocation Protocol	[IPv4] HTTP, HTTPS, DNS, NTP, DHCPv4, MDNS, SNMP, 802.1X [IPv6] HTTP, HTTPS, DNS, NTP, DHCPv6, MDNS, SNMP, 802.1X
	Video Streaming Protocol	RTP/RTCP over RTSP, RTMP, RTMPS, SRT, MPEG2-TS over UDP, NDI®\|HX version 2, High bandwidth NDI®
	External Device Cooperation Protocol	FreeD, TSL5.0, SNMP
NDI®Support
NDI Support	High Bandwidth NDI®, NDI®\|HX version 2
Output format (High Bandwidth NDI®)	4K	2160/59.94p, 2160/50p, 2160/29.97p, 2160/25p, 2160/24p, 2160/23.98p
Output format (High Bandwidth NDI®)	HD	1080/59.94p, 1080/50p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p, 720/59.94p, 720/50p
Image Resolution (NDI®\|HX version 2)	1920x1080, 1280x720
Image Transmission Setting (High Bandwidth NDI®)	Transmission Type	TCP/UDP Multicast
Image Transmission Setting (High Bandwidth NDI®)	Max Bit Rate	250 Mbps
Image Transmission Setting (NDI®\|HX version 2)	Transmission Type	Unicast port (AUTO) Unicast port (MANUAL) Multicast port
	Flame rate	[60Hz] 5fps / 15fps / 30fps / 60fps (UHD: 30fps, 60fps) [50Hz] 5fps / 12.5fps / 25fps / 50fps (UHD: 25fps, 50fps)
	Max bit rate	512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps
Audio Compression Type (High Bandwidth NDI®)	AAC, 48 kHz, 2 ch
Audio Compression Type (NDI®\|HX version 2)	AAC-LC, 48 kHz, 16 bit, 2 ch
New function
F Number Display	Displayed on the AW-RP150GJ and WEB screen (next to IRIS slide bar, only for MANU IRIS)
NDI	High Bandwidth NDI®, NDI®\|HX included as standard
IP menu display	Supported*9
VR (FreeD) (IP/RS422)	Supported
Image Stabilization	OIS 2-axis + Hybrid method of roll direction correction MENU switching：select between OFF/OIS/Hybrid (Stable)/Hybrid (Pan/Tilt) and ON/OFF of D.I.S.S
Horizontal display function	Check with OSD_MENU or select ON/OFF with Web GUI
Privacy Mode	The lens surface faces backward when standing by (ON/OFF)

*1: Preheating required for temperatures below -5°C (1H).
*2: Storage humidity: 10% to 95% (no condensation).
*3: Can be set in 1 dB step increments.
*4: If format is set in 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p、1080/25p, it cannot be set.
*5: The signal to be sent out is the same as 12G SDI OUT. Optical signal input is not supported.
*6: Compatible with Level-A/Level-B.
*7: STP (Shielded Twisted Pair) is recommended.
*8: Category 6 or above is used for 4K video transmission.
*9: Non-synchronous with SDI-OUT.
