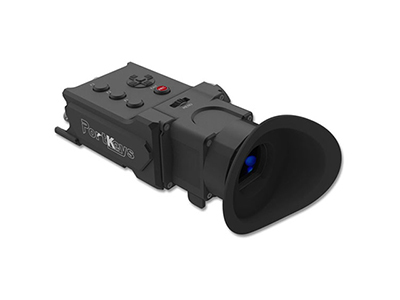

PortKeys OEYE-RED EVF

Code: BLO/PK-OEYE-RED
$2,765.00

The OEYE electronic viewfinder offers a bright, sharp OLED micro-display with a comfortable eyepiece to view your camera video, and it also allows you to view and control the menu navigation and overlays on your RED DSMC2 camera right from the EVF.

Add to Cart

Found this item cheaper elsewhere? Let us know

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when PortKeys OEYE-RED EVF is back in stock.

What's In The Box?

  • 1x Power Cable
  • 1x Camera Connection Cable
  • 1x Control Cable
  • 1x OLED-RED Hub
  • 1x L-type Inner Allen Key Diameter 4.7mm
  • 1x 7-inch Safety Plastic Box
  • 1x SDI Cable
  • 1x Pipe Clamp
  • 1x Warm Prompt
  • 1x U Disk(Manual, 3D LUTs, Firmware Inside)

    • The OEYE electronic viewfinder offers a bright, sharp OLED micro-display with a comfortable eyepiece to view your camera video, and it also allows you to view and control the menu navigation and overlays on your RED DSMC2 camera right from the EVF.

    Video connectors include HDMI input and loop output that support resolutions up to DCI 4K24, and 3G-SDI input and loop output that support resolutions up to 1080p60, so you can preview your cinema video in high-resolution as well as send it to external displays. The OEYE connects to the camera control port using one of the included LEMO-type control cables, and it uses RCP (REDLINK Command Protocol) for communication.

    The durable aluminum chassis is lightweight at only 14 oz, and it features mounting threads on the bottom and an ARRI-style rosette on the side that offer multiple mounting options and 360° rotation. The unit also features cooling fans that synchronize with the RED camera fan mute feature when silence is required on set.

    Key Features

    • 0.71″, 1920 x 1080 micro-OLED EVF display with comfortable eyecup
    • 200 cd/m² brightness, 100,000:1 contrast ratio, 8-bit color
    • HDMI input and output support resolutions up to DCI 4K24
    • 3G-SDI input and output support resolutions up to 1080p60
    • 5-pin LEMO-type remote control output port
    • Built-in adjustable +8 to -3 diopter
    • Fan Synchronization Mute in Rec mode when work with RED camera
    • Rosette mount on the side
    • Durable aluminum construction
    Specifications
    Color/Monochrome Color
    Display Size 0.71″ / 1.8 cm
    Screen Resolution 1920 x 1080
    Aspect Ratio 16:09
    Touchscreen No
    Maximum Brightness 200nit
    Contrast Ratio 100,000:1
    Bit Depth / Color Support 8-Bit (16.7 Million Colors)
    Pixels Per Inch (ppi) 3102 ppi
    Image Controls Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, H/V Delay, Image Flip, Image Rotate, OSD Flip, Pixel Zoom, Pixel-to-Pixel Zoom, Screen Markers, Underscan, Waveform, Zebra
    I / O
    Video 1 x BNC (3G-SDI) Input
    1 x BNC (3G-SDI) Loop Output
    1 x HDMI Type A Input
    1 x HDMI Type A Loop Output
    Video Format HDMI
    DCI 4K: 24
    UHD 4K: 30 / 29.97 / 25/24 / 23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080PsF: 30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    576p: 50
    576i: 50
    480p: 60/59.94
    480i: 60 / 59.94
    SDI (8-Bit 4:2:2 YUV)
    1080p: 60/59.94/50
    SDI (8-Bit 4:4:4/4:2:2 RGB, YUV)
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    720p: 60/59.94/50
    Camera Connection 5-pin Aviation Connector
    Power Cable 1 x D-TAP to 4-pin Aviation Connector
    Optics
    Diopter Correction -3.0 to +8.0
    Power
    DC Input Power 7 to 24 VDC
    Power Consumption 10 W
    General
    Mounting 1 x Rosette
    Material of Construction Aluminum
    Dimensions 7.1 x 2.9 x 2.7″ / 180 x 72.4 x 69.7 mm, Including
    Weight 14.1 oz / 385g
