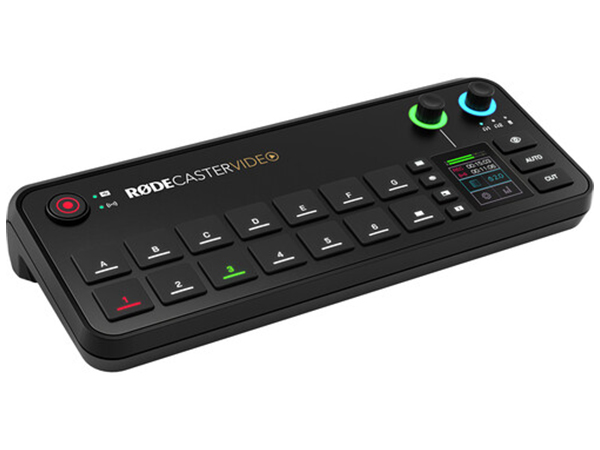

RODE RØDECaster Video All-in-One Production Console

Code: ROD/RCV-I
$1,525.00

The RØDECaster Video is a revolutionary video and audio production console that combines powerful video switching, recording and production capabilities with a fully integrated professional audio studio.

ENQUIRE NOW

Got a question about this product?
Send us a message

Special Order Item

Usually ships in 1-2 weeks

Request ETA

What's In The Box?

  • 1x RØDECaster Video
  • 1x SuperSpeed USB-C to USB-C Cable
  • 2x External Antenna
  • 1x Power Supply
  • The ultimate all-in-one content creation tool, the RØDECaster Video is the first in its class to seamlessly blend comprehensive video and audio production into a single, compact device. Offering unmatched flexibility in switching, mixing, processing, recording and streaming multiple video and audio sources at once, it is the perfect centrepiece for any content creation setup.

    For Anyone and Everyone

    With its wide array of connectivity options and its completely customisable architecture, the RØDECaster Video can be tailored to meet your exact needs, no matter what kind of video production you do.

    Professional Production Made Simple

    It’s never been easier to create professional productions with incredible video and audio. The RØDECaster Video’s intuitive interface and dynamic touchscreen give you hands-on control of every element of your show, from switching video and configuring complex multi-source layouts to mixing and processing your audio.

    Key Features

    1) Input and Scene Buttons

    Switch between video sources or fully customised scenes with the touch of a button.


    2) Function Buttons

    Quickly and simply access media playback, graphic overlays, multi-source layouts and chroma keying.


    3) Touchscreen and Encoders

    Control and configure your production with the intuitive touchscreen and versatile encoder.


    4) Inspect Button

    Preview and configure any input or scene on-the-fly with the innovative Inspect button.

    5) USB Video and Audio

    Connect up to two webcams or RØDE USB microphones via USB 4 and 5 for additional video and audio options.

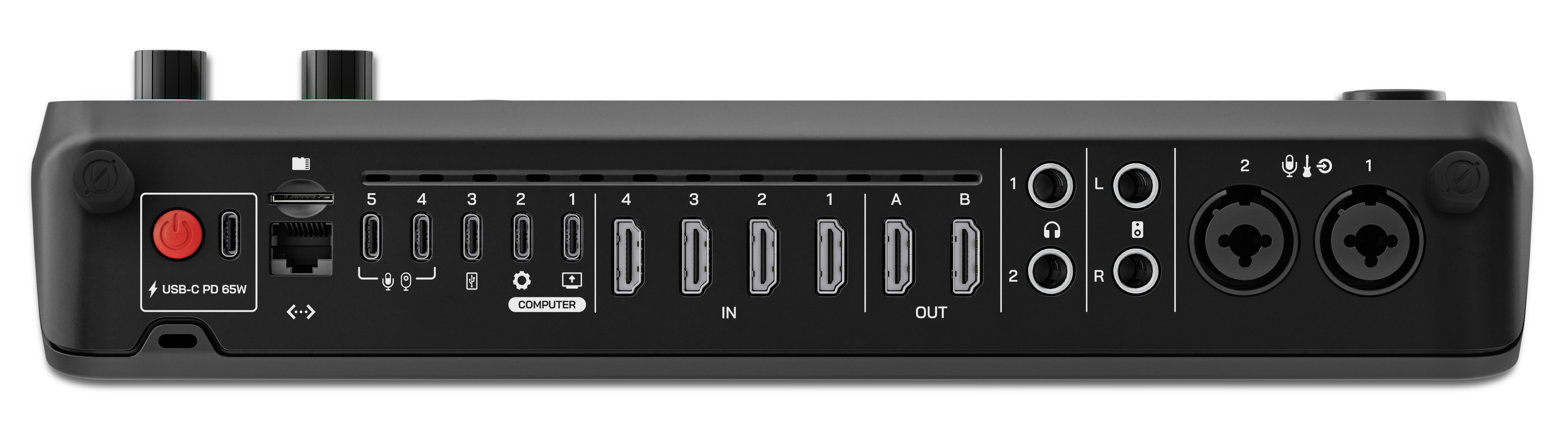

    6) HDMI Inputs and Outputs

    Capture up to four HDMI video sources and monitor your production with preview, multiview or program feeds.


    7) Headphone and Speaker Outputs

    Monitor your audio with speakers or two pairs of headphones, each with custom mixes and levels.


    8) Revolution Preamps™

    Record XLR and 1/4-inch equipment in stunning detail with the ultra-low-noise, high-gain Revolution Preamps™.

    Switch it Up

    With simultaneous control over six different video feeds, the RØDECaster Video allows you to seamlessly switch between cameras, consoles and other visual inputs to fully immerse your audience in your show. Cut between your shots instantly or apply tasteful fades, dips and wipes with fully customisable transitions – you can even sequence your show with live previews of each feed before you make the switch.

    Set the Scene

    The RØDECaster Video is the first of its kind to offer an intuitive scene-based switching architecture, making it easier than ever to customise and configure complex video arrangements and switch to them at the press of a button.

    Integrated Professional Audio

    With the ability to mix, process and route up to nine audio sources at once, the RØDECaster Video sets a new standard for power and flexibility in audio production. Each channel has access to a full suite of studio-grade effects and processors powered by APHEX®, allowing you to sculpt your dream sound and deliver polished, professional results every time.

    Expanded USB Inputs

    The RØDECaster Video features two flexible USB-C ports for expanding your production with extra video and audio devices. You can connect USB webcams, capture cards and other UVC video devices, as well as RØDE USB microphones and even the RØDECaster Pro II and RØDECaster Duo!

    Hands-free Auto-Switching

    Don’t have a producer? Intelligent auto-switching technology will automatically switch your camera angles depending on who’s talking – perfect for video podcasts, panel discussions, and other live discussions.

    Comprehensive Multiview

    The RØDECaster Video’s multiview display provides a comprehensive overview of all your production’s critical information in one screen. With previews of every input, scene and feed, alongside recording, streaming and audio information, you can be confident you have complete control of your show.

    Form Follows Function

    The RØDECaster Video provides immediate access to a wide range of creative tools with its four function buttons, giving you unprecedented hands-on control over advanced video techniques and quick access to your graphics and media.

    Graphics Overlays

    Access and arrange custom logos, watermarks, lower-thirds and other graphic assets.


    Media Player

    Integrate video files, images and sounds into your production with ease.

    Multi-source Layouts

    Configure multiple video sources into arrangements such as picture-in-picture, split screen and more.


    Automatic Keying

    Apply an automatic chroma key to your input – it’s never been easier to set up a green screen.



    Video
    Video Input Feeds6 simultaneous
    HDMI Inputs4 type-A (HDMI 1.4b)
    USB (UVC) Inputs2 multi-function USB-C for UVC video
    HDMI Outputs

    2 configurable –

    preview, program, multiview
    Video Input Frame Rates

    1920x1080p:

    23.97, 24, 25, 29.97, 30, 50, 59.94, 60

    (HDMI only) 1920x1080i: 25, 29.97, 30

    Video Output Frame Rates

    1920x1080p:

    24, 25, 30, 50, 60

    Video Streaming Standards

    1920x1080p:

    23.97, 24, 25, 29.97, 30, 50, 59.94, 60

    Video Engine Colour Space / Bit Depth4:4:4 RGB / 8-bit
    HDMI Input Colour Space / Bit Depth4:4:4 RGB, 4:4:4 YUV, 4:2:2 YUV / 8, 10, 12-bit
    USB Input Colour Space4:2:2 YUV, 4:2:0 YUV (NV12)
    HDMI Output Colour Space / Bit Depth4:4:4 RGB, 4:4:4 YUV / 8-bit
    USB Output Colour Space / Bit Depth4:2:2 YUV / 8-bit
    Format and Frame Rate ConvertersOn all HDMI and USB inputs
    Power and Mechanical
    Power Supply RequirementsUSB-C PD 60W, 20V 3A
    Weight (grams)1257
    Dimensions (millimetres)

    Length: 132.5

    Width: 305.9

    Height: 61.4

    Streaming, Recording and Software
    Direct StreamingReal Time Messaging Protocol (RTMP/RTMP) over Ethernet or Wi-Fi
    Supported Platforms
    • Youtube Live
    • Twitch Live
    • Facebook Live
    • Twitter/X Live
    • Custom server
    NetworkEthernet (10/100/1000 BaseT) and Wi-Fi 6 (2.4 and 5GHz) for streaming, configuration, remote control with computer and over-theair updates
    Storage MediaExternal USB mass storage device (exFAT format) for recordings
    Video RecordingProgram feed as H.264/AVC MP4 file with embedded AAC stereo mix
    Isolated (ISO) Video Recording6 video inputs and 1 Program feed as independent H.264/AVC files (up to 1080p30)
    Audio RecordingStereo mix WAV audio file
    Multitrack Audio Recording9 independent stereo WAV audio files
    RØDE Central Companion Software

    Scene builder: advanced construction of scenes and remote control of device

    Auto-switching: configuration of automatic switching based on audio input

    Audio mixer: advanced configuration and control of audio sources, processing and routing

    Stream profiles: configuration for streaming settings and profiles

    Device configuration: advanced settings and customisations

    Compatible Operating Systems

    macOS 10.15 or later

    Windows 10 Version 1803 or later,

    Windows 11

    Audio
    Analog Audio Inputs2 combo jacks (microphone, line or instrument) with Revolution Preamps™
    Wireless Audio Inputs2 Series IV wireless receivers
    Digital Audio Inputs

    USB 1:

    2-in/2-out or multichannel (20-in) output

    USB 1 Chat (uses USB 1 port):

    2-in/2-out with mix-minus

    USB 2:

    2-in/2-out with MFi support

    USB 4 & 5:

    compatible with RØDE USB microphones and RØDECaster Pro II and Duo

    Analog Audio Outputs

    2 headphone outputs (1/4-inch)

    2 balanced line outputs (1/4-inch, L/R)

    Audio Mixer

    20 possible audio sources (9 stereo channels simultaneously): combo 1 and 2 (can be combined for stereo), wireless 1 and 2, video clips, sounds, HDMI 1, 2, 3 and 4 (each can be split for two mono), Bluetooth,3 USB audio interfaces (computers), 2 hosting USB audio devices (microphones)

    12 Outputs with Custom Routing: live mix, headphone 1, headphone 2, recording, monitors, USB Main, USB Chat, USB 1, 2, 4 and 5, Bluetooth

    Note: Each output can be independently configured with custom level, mute status and level offset settings for each of the 9 inputs

    Audio Processing

    APHEX® VoxLab™ Processing: per channel

    Advanced APHEX® granular processing on each channel: Compressor, Equaliser (EQ), De-esser, Panning, Noise Gate, High-pass Filter, Aural Exciter™, Big Bottom™

    Preamps

    Frequency range: 20Hz – 20kHz

    Input gain: up to 76dB Input

    Equivalent Input Noise:

    -131.5dBV (A-weighted)

    Switching
    Total Number of Layers9 simultaneous in Preview and Program
    Downstream Keyers2 (overlays and logo)
    Chroma Keyers (Green and Blue)2
    Media Players2 simultaneous
    TransitionsSMPTE wipes, dip and fade
    True PreviewDisplay complete scenes and overlays simultaneously in preview and program
    Generated BordersAll scenes
    Multiview
    • Program and preview
    • Live inputs, scene and media thumbnails
    • Audio mixer and channel status
    • Recording, network and storage status
    • Run time, date and time information
    Media Player

    Expandable microSD card storage

    Videos: MP4

    Images: PNG, JPG

    Audio: WAV

    Bluetooth5.3 (for stereo audio input or phone calls)
