The smallest 140Wh V-mount battery you’ve ever seen! MINO-S140 is a pocket fit size large capacity battery with 65W USB-C socket, for cameras, monitors, accessories, tablets, laptops and all kinds of devices in the filmset.
150W/12A High Load
MINO-S140 consists of 8 high capacity cells, with 140Wh/9.7Ah high capacity, and support at least 150W/12A constant high load output, for high power cine cameras and lights.
A Little Bigger, Much More Capacity
Comparing with the hot selling SWIT 98Wh Pocket V-mount battery, the new MINO-S140 provides 43% more capacity, but still with tiny size for convenient carrying.
D-tap, USB-A and USB-C
The tiny size MINO-S140 didn't compromise on DC sockets.
- D-tap x1 - 150W/12A high load (Support charging input)
- USB-A x1 - 5V/2A output
- USB-C x1 - 65W output and 48W charging input
USB-C 48W Charging Input
MINO-S140 battery can be charged by USB-C charger, supports PD 5V 2.4A, 9V 2.4A, 12V 2.4A, 15V 2.4A and Max 20V 2.4A, which means you can fully charge the 140Wh battery within 3.5 hours.
USB-C 65W Power Output
You can power laptop via USB-C by MINO-S140 battery on the filmset. Supports 5V 3.25A, 9V 3.25A, 12V 3.25A, 15V 3.25A and Max 20V 3.25A, BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols. (For Macbook Air/13, Macbook Pro 13/15/16, Huawei Matebook E/12/X13/XPRO, Thinkpad, HP, ASUS, Dell and almost all laptops with USB-C ports).

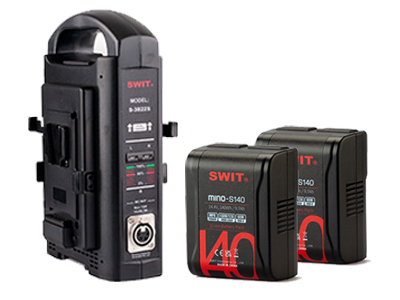

SWIT S-3822S V-Lock Charger/AC Adaptor
S-3822S is a portable 2-channel simultaneous (up to 2 batteries at a time) charger for V-Lock batteries
AC-DC Adapting Output
The S-3822S can also be used as an AC-DC adaptor with an output of 14.4V DC, 5A, 72W through its 4-pin XLR DC output.
Please note: the AC-DC adapting output will not work when battery is charging.
Key Features
- V-Lock battery charger
- 2-ch simultaneous charging
- 3A charging current per channel
- LED charging indicators
- Support AC to 4-pin XLR output
- Light weight and portable
