Note: Lemac recommends using Swit Chargers with genuine Swit batteries. If you are unsure about compatibility please get in touch and our sales team can help.
The new SWIT PB-M98S battery is a pocket V-Lock with 98WH fly friendly capacity including D-tap out and USB out.
This battery is specifically designed to be compact, durable and convenient.
The PB-M98S is the ideal size for monitors, wireless or portable panel lights.
Tiny V-Lock battery
Pocket sized fit
Brick-sized V-Lock batteries are always too big and heavy for field shootings, especially for gimbals, the focus puller's monitor, portable LED panels, or small cameras. The PB-M98S Pocket V-Lock battery is designed for those applications! Featuring high capacity cells, 98Wh / 8A, in a compact form and all without any compromise on the DC sockets!
Built-in D-tap and USB
The pocket size PB-M98S still has D-tap and USB sockets built-in.
The D-tap socket share 100W/8A load DC output with the V-Lock pins, and support charging input by SWIT PC-U130B2 dual D-tap charger.
The USB socket outputs 5V/2A for smart phone fast charging.
5-LED Power Indicator
Low battery warning
PB-M98S has 5-LEDs to indicator remaining power percentage. When remaining power is less than 10%, the last LED will flash automatically to remind changing battery.
SONY & RED Communication
PB-M98S can communicate with both SONY and RED cameras and display digital power info on camera viewfinder.
DV battery size, pocket fit
98Wh Fly Friendly
Max 100W/8A constant load
PB-M98S consists of 12pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 98Wh / 6.6Ah high capacity. You can take this battery in carry-on luggage to board airplane. The Max constant load is 100W, 8A.
3A Fast Charging
PB-M98S can be charged by all standard V-Lock chargers and D-tap chargers. The max charging current is 3A.
The following chargers are recommended:

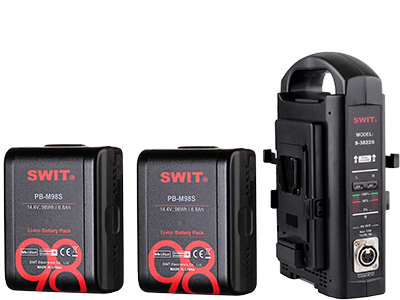

- S-3822S. Charge 2x PB-M98S: Approx. 3 hours
- PC-U130B2. Charge 2x PB-M98S: Approx. 5 hours and 15 minutes
Wire-Free Internal Tech
PB-M98S has innovative “Wire-Free” internal technic. All the cells, D-tap, USB, power indicator devices are directly soldered onto PCB, no connecting wires, to reduce internal resistance effectively, and make the circuit stable, safe, and reliable.
Wire-free internal technical
