The SWIT PB-H290S is a great solution for the ARRI Alexa LF and Alexa 65 cameras, which require a higher voltage than the standard 14.4V (11-16.8V). Using the SWIT Intelligent Bi-voltage Battery System, the PB-H290S can output both 11-16.8V normal voltage and 22-33.6V high voltage, with auto recognition and switching by the dedicated V-mount plate, compatible with Alexa LF/65 and all other normal cameras and devices, with no risk of misusing.
Key Features
- 14.4V/28.8V Bi-voltage auto switch
- For ALEXA LF/65 high voltage cameras
- For all normal voltage cameras
- For high voltage cine lights
- Compatible with normal voltage chargers
- 290Wh capacity, Max 200W high load
- 6A fast charging support
- 8-LED remaining time indicators
- D-tap power output socket
- Normal V-mount connection
- Strong 1.5m drop-off proof
- Multiple circuit protections
14.4V/28.8V Bi-Voltage
For ALEXA LF/65 and all normal cameras The ARRI Alexa LF / 65 require on-board battery input voltage 19.5-34V only, and the normal 14.4V (11-16.8V) batteries are no longer compatible.
The existing 26-28.8V high voltage batteries can power Alexa LF/65, but the high voltage with the same physical connectors will surely damage other normal cameras.
A better solution is to use normal 14.4V battery with a DC boost plate, but the current between battery and V-plate will get quite high with 160W load and 14.4V voltage, and will melt the battery pins.
Now you will have a great solution for Alexa LF/65: the SWIT Intelligent Bi-voltage Battery, can output both 11-16.8V normal voltage and 22-33.6V high voltage, with auto recognition and switching by the dedicated V-mount plate, compatible with Alexa LF/65 and all other normal cameras and devices, with no risk of misusing.
14.4V/28.8V Auto Switching
By “Magic Sticker” on normal V-plates Beside ALEXA cameras, many Cine Lights are also designed high voltage input, to reduce current effectively, and protect power pins and ensure the reliability.
You can easily put on a “Magic Sticker” on the particular position of all standard V-mount plates, then PB-H290S battery can recognize and auto switch on 22-33.6V output mode.
290Wh Capacity
200W High Load PB-H290S consists of 24pcs high class 18650 battery cells, and reaches 290Wh high capacity. PB-H290S supports Max 200W constant power output, can drive ALEXA LF (160W) more on-camera monitors or wireless simultaneously.
The high load battery will have longer life time than normal battery if always under full load power.
14.4V/28.8V Auto Switching
By Alexa dedicated plate KA-A20S The Bi-voltage battery PB-H290S output normal 11-16.8V voltage as default, you can attach to any normal V-mount cameras or other devices, and any normal voltage chargers.
Use the ARRI ALEXA dedicated V-mount plate KA-A20S, PB-H290S battery can recognize and auto switch on 22-33.6V, to power Alexa LF/65/SXT/AMIRA.
6A Fast Charging
Using SWIT S-3812S fast charger PB-H290S supports 6A fast charging by SWIT S-3812S fast charger, to save more than 50% charging time, can be charged from 0 to 80% after 2 and half hours, and fully charged within 4 hours 15 minutes.
D-tap Socket
A D-tap DC output socket is equipped on the top side of the battery pack, to power the other on-camera equipment together.
Under 14.4V (11-16.8V) output mode, D-tap output 11-16.8V and Max load 120W/10A;
Under 28.8V (22-33.6V) output mode, D-tap output constant 16V and Max load 50W/3A;
Strong 1.5m Drop-off Proof
Dual housing + Robber cover PB-H290S has innovative dual housing structure: the inner cell cage and outer anti-shock housing with rubber covers. The new structure makes the battery quite strong, anti-shock. The battery can survive from 1.5 meters any angles drop-off.

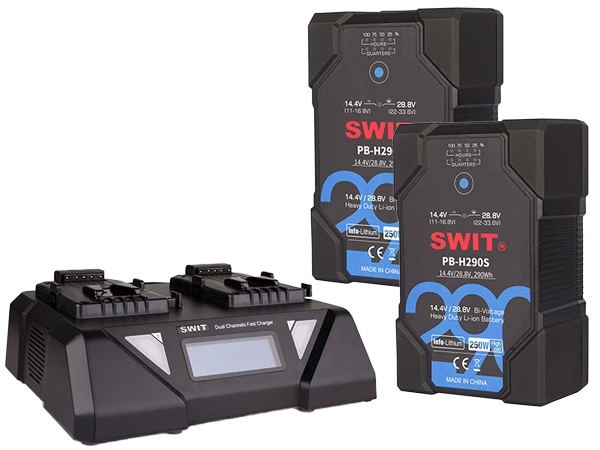

SWIT S-3812S V-Lock Fast Charger
Key Features
- 2-ch simultaneous charging
- Identify battery type and adjust charging method
- 6A fast charging for SWIT particular batteries
- 3A charging for normal batteries
- Support AC to 4-pin XLR output
- Support battery to 4-pin XLR output
- LCD display charging/adapting info
Battery Charging + DC Output
The S-3812S also outputs DC power via 4-pin XLR port, while simultaneously charging batteries*. Via a 4-pin XLR female to male cable (sold seperately), it can supply 16.8V DC power with a max load of 200W/12A.
*2 batteries sequential, when AC load is less than 100W
