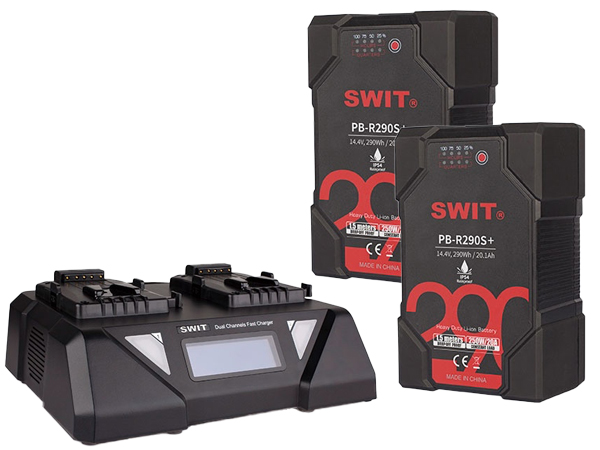

The PB-R290S+ is a 290Wh V-mount battery, for Cine and ENG cameras, with dual housing heavy duty sealed structure, IP54 rainproof, 1.5m drop-off proof. The battery supports high load, fast charging and digital power info display, for field applications.
IP54 Waterproof
1.5 meters drop-off proof PB-R290S+ has dual housing sealed structure to support IP54 waterproof in rain, snow and other inclement weather. The dual housing with rubber cover is also strong enough to survive from 1.5 meters any angles drop-off.
290Wh / 20.1Ah Capacity
The PB-R290S+ consists of 24 high class 18650 battery cells, and can reach 290Wh / 20.1Ah high capacity.
The battery can run approx 11 hours for normal ENG cameras, and approx 3.5 hours for ARRI ALEXA.
High Load for Cinema Cameras
250W / 20A constant load The PB-R290S provides at least 250W/20A high load even at 1% capacity (Peak load up to 305W), perfect for driving high power digital cinema cameras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries over long time full load output. Over current protection: 24A
6A Fast Charging
Using SWIT S-3812S fast charger The PB-R290S+ supports 6A fast charging by SWIT S-3812S fast charger, to save more than 50% charging time. The 290Wh PB-R290S+ battery can be charged from 0 to 80% after 3.4 hours, and fully charged within 4.8 hours.
Digital Power Info
8-LED + SONY & RED viewfinder info The PB-R290S+ has innovative 8-LED power indicators. When free or charging, the LEDs will indicate current capacity percentage, and when battery is discharging, the LEDs will display the remaining running time at the current discharging power, accurate to 15 minutes. Meanwhile, the battery pack adopts intelligent SMBUS that compatible with both SONY and RED camera info system, and can display remaining minutes on camera viewfinder.
D-tap Socket
A D-tap DC output socket is equipped on the top side of the battery pack, to power the other on-camera equipments together. The Max output current of D-tap is 10A.
SWIT S-3812S V-Lock Fast Charger
Key Features
- 2-ch simultaneous charging
- Identify battery type and adjust charging method
- 6A fast charging for SWIT particular batteries
- 3A charging for normal batteries
- Support AC to 4-pin XLR output
- Support battery to 4-pin XLR output
- LCD display charging/adapting info
Battery Charging + DC Output
The S-3812S also outputs DC power via 4-pin XLR port, while simultaneously charging batteries*. Via a 4-pin XLR female to male cable (sold seperately), it can supply 16.8V DC power with a max load of 200W/12A.
*2 batteries sequential, when AC load is less than 100W
