Sennheiser EW 500 G4 Location Portable Wireless System (GBw: 606 - 678 MHz)

Code: SEN/509880

NO LONGER AVAILABLE

Overview
Specifications

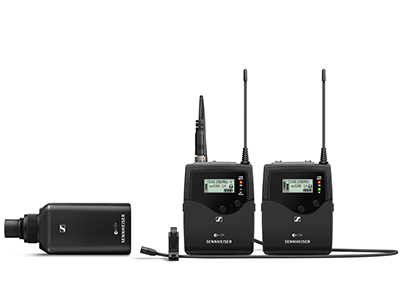

The EW 500 Film G4 kit is a wireless system that includes an EK 500 G4 camera mount receiver, SK 500 G4 bodypack transmitter, SKP 500 G4 pro plug-on transmitter, and an MKE 2 Gold clip-on microphone. The 48V phantom-power equipped SKP 500 turns all wired mics into a wireless transmitter for a wide range of wireless applications, while the MKE 2 is a state-of-the-art professional clip-on microphone offering the highest speech intelligibility. Each transmitter and receiver is enclosed in a rugged metal housing that will operate for up to 8 hours.

Combined, this wireless system provides flexibility for your video sound and field recording applications in a robust wireless package that offers ultimate sound quality, simple mounting and an ease of use.

Features

Highly versatile solution for professional film sound: Rugged all-in-one wireless system for professional interviews and recording
Professional sound and excellent construction quality
Easy to use and fast setup time
Easy and flexible wireless synchronisation between transmitter and receiver via infrared
Up to 88 MHz bandwidth, up to 32 channels
Range: up to 100 meters / 330 feet
Increased RF output power (10/30/50 mW)
Up to 8 hours of operation time
With 48 V phantom powering

Specifications

EK 500 G4

Frequency range	GBw: 606 - 678 MHz
Dimensions	Approx. 82 x 64 x 24 mm
Compander	Sennheiser HDX
THD, total harmonic distortion	≤ 0.9 %
Weight	(incl. batteries) approx. 130 g
Audio output	3.5 mm jack socket: +17 dBu (mono, unbalanced)
Signal-to-noise ratio	Line: ≥ 110 dBA, Phones: approx. 90 dBA
Switching bandwidth	up to 88 MHz
Peak deviation	±48 kHz
Nominal deviation	±24 kHz
Operating time	Typically 8 h
Modulation	Wideband FM
Power supply	2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption	at nominal voltage: typ. 140 mA with receiver switched off: ≤ 25 µA
Adjacent channel rejection	Typically ≥ 65 dB
Intermodulation attenuation	Typically ≥ 65 dB
Powering	3 V battery / 2.4 V rechargeable battery
Receiving frequency	Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
RF sensitivity	< 1.6 μV for 52 dBA eff S/N
Squelch	low: 5 dBµV, middle: 15 dBµV, high: 25 dBμV
Temperature Range	-10 °C to +55 °C
Receiver Principle	Adaptive diversity
Blocking	≥ 70 dB

SK 500 G4

Dimensions	Approx. 82 x 64 x 24 mm
Compander	Sennheiser HDX
THD, total harmonic distortion	≤ 0.9 %
Weight	(incl. batteries) approx. 160 g
Signal-to-noise ratio	≥ 115 dBA
RF output power	switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
Switching bandwidth	up to 88 MHz
Peak deviation	±48 kHz
Nominal deviation	±24 kHz
Operating time	Typically 8 h
Modulation	Wideband FM
Power supply	2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption	at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 µA
Input impedance	40 kΩ, unbalanced / 1 MΩ
Max. Input voltage	3 Veff
Powering	3 V battery / 2.4 V rechargeable battery
Transmission frequency	Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
AF frequency response	Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz
Temperature Range	-10 °C to +55 °C
Frequency stability	≤ ±15 ppm

SKP 500 G4

Dimensions	Approx. 105 x 43 x 43 mm
Compander	Sennheiser HDX
THD, total harmonic distortion	≤ 0.9 %
Weight	(incl. batteries) approx. 195 g
Signal-to-noise ratio	≥ 120 dBA
RF output power	switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
Switching bandwidth	up to 88 MHz
Peak deviation	±48 kHz
Nominal deviation	±24 kHz
Operating time	Typically 8 h
Modulation	Wideband FM
Power supply	2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption	at nominal voltage: typ. 210 mA with transmitter switched off: ≤ 25 µA
Input impedance	68 kΩ, unbalanced
Max. Input voltage	6 Veff
Powering	3 V battery / 2.4 V rechargeable battery
Transmission frequency	Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
AF frequency response	80 – 18,000 Hz
Temperature Range	-10 °C to +55 °C
Frequency stability	≤ ±15 ppm

MKE 2

Connector	3.5 mm jack
Frequency response	20 to 20.000 Hz ± 3 dB
Max. sound pressure level	142 dB
Cable length	approx. 1.60 m
Transducer principle	pre-polarized condensor microphone
Pick-up pattern	omni-directional
Sensitivity in free field, no load (1kHz)	5 mV/Pa, ± 3 dB
Equivalent noise level	26 dB
Equivalent noise level weighted as per CCIR 468-3	39 dB
