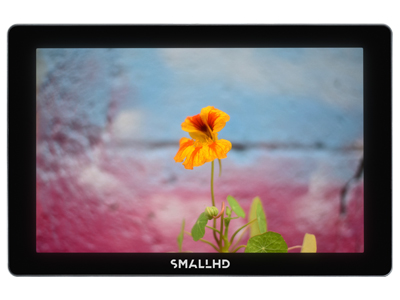

| Item Weight (oz)
|
18.9
|
| Package Weight (oz)
|
26
|
| Height (in)
|
4.67
|
| Width (in)
|
1.32
|
| Length/Depth (in)
|
7.09
|
| Compliance
|
FCC, IC, CE, RoHS
|
| Operating Temperature
|
30F to 100F
|
| Storage Temperature
|
0F to 120F
|
| Mount Points
|
Four ¼-20 Mount Points (Left, Right, Bottom, and Back)
|
| Construction
|
Anodized aluminium chassis
|
| Panel Type
|
IPS LCD Touchscreen
|
| Diagonal Size
|
7.02
|
| Resolution
|
1920x1200
|
| Pixel Density
|
323
|
| Aspect Ratio
|
0.6736111111111112
|
| Active Area
|
5.95 x 3.72
|
| Brightness
|
1000 Nits
|
| Contrast
|
1000:1
|
| Gamut
|
100% rec709
|
| Color Depth
|
10-bit Processing (8-bit panel)
|
| Viewing Angle
|
160
|
| Backlight Type
|
LED
|
| Adjustable Backlight
|
Yes
|
| 3G-SDI Input Types
|
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
|
| HD-SDI Input Types
|
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
|
| SD-SDI Input Types
|
YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
|
| HDMI Input Types
|
YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 3840x2160 30p, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
|
| Audio Input Types
|
HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels
|
| 3G-SDI Output Types
|
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
|
| HD-SDI Output Types
|
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
|
| SD-SDI Output Types
|
YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
|
| HDMI Output Types
|
YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200
|
| Audio Output Types
|
HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection
|
| SDI
|
1x BNC 3G input and 1x BNC 3G selectable input/output
|
| HDMI
|
1 input and 1 output: HDMI Type-D Receptacles (full size)
|
| Audio
|
1x 3.5mm 3-pin Stereo Headphone Jack
|
| Power In
|
Barrel, 2.0mm ID, 5.5mm OD (center pin positive)
|
| USB
|
1x USB 2.0 Micro-B receptacle
|
| Primary
|
Touch Screen
|
| Record Capture
|
Image Capture Tool
|
| Connector
|
Barrel, 2.0mm ID, 5.5mm OD (center pin positive)
|
| Voltage
|
DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max
|
| Consumption
|
17.3 watts (2160p30, 100% bright, tools enabled), (2.4A @7.2V battery, 1.4A @12V barrel, 0.7A at 24V barrel)
|
| Batter Plate Included
|
L-Series standard (V Mount or Gold Mount optional accessories)
|
| Power Supply
|
Recommend DC 12~15V at ~2.5 amp or greater
|
| Battery Types
|
L-Series, V Mount, Gold Mount
|
| Overload Protection
|
DC input: Reverse polarity
|
| Battery Chemistry
|
Li-ion
|
| Battery Charging Time
|
Monitor does not support the charging of batteries
|
| Pixel Zoom
|
1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
|
| Frame Guides
|
Preset Aspect Ratios & Customizable
|
| DSLR Scale
|
Canon 5DMkii & Canon 7D
|
| Custom Scale
|
Yes (Underscan Only)
|
| Anamorphic De-Squeeze
|
0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
|
| Image Rotate
|
Automatic or Manual Control
|
| Image Flip
|
Automatic or Manual Control
|
| Cross Conversion
|
Yes: HDMI → SDI & SDI → HDMI
|
| Focus Assist
|
User Adjustable Color Style and Intensity
|
| Peaking
|
User Adjustable Intensity
|
| False Color
|
Rainbow, Arri Style, Custom with up to 10 nodes
|
| Zebra
|
Dual - User Configurable
|
| Waveform
|
Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
|
| Vectorscope
|
Yes
|
| RGB Parade
|
Fully User Customizable
|
| Histogram
|
Luma & RGB Style
|
| Image Capture
|
Yes
|
| Custom LUTS
|
Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
|
| LUT Downstream
|
Available on SDI or HDMI Out. Applied on Output Preview Page.
|
| LUT Import
|
via SD Card or USB Storage Device
|
| Overlay
|
With Opacity Slider and Blink Setting
|
| Audio Meters
|
HDMI & SDI up to 8 channel
|
