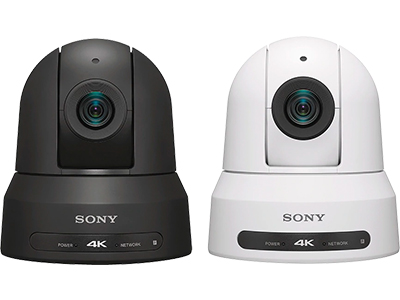

Sony BRC-X400 IP 4K PTZ Camera with NDI

Code: SOC/BRCX400

The versatile BRC-X400 PTZ camera is ideal for use in a wide range of environments - from broadcast studios and remote on-air suites to sports stadiums, arenas, houses of worship and lecture halls.

For purchasing information

Enquire Now

Overview
Specifications

Capture every point of view in 4K with excellent picture quality and efficient IP production workflow

The versatile BRC-X400 PTZ camera is ideal for use in a wide range of environments - from broadcast studios and remote on-air suites to sports stadiums, arenas, houses of worship and lecture halls.

The camera's 1/2.5-type Exmor R™ sensor captures broadcast quality 4K images with excellent sensitivity, very low noise and rich, natural colour reproduction. It's complemented by the integrated high-resolution lens that offers a powerful zoom capability of up to 80x in Full HD (30x in 4K), with an expansive approx. 70° wide angle coverage to capture every point of view.

Efficient IP-based live production is augmented with support for NDI®|HX (via optional license), allowing flexible configuration with other networked NDI-enabled devices.

Images also can be reviewing remotely via a web browser, with support for RTSP (Real Time Streaming Protocol) ensuring smooth, stable streaming of video plus audio (from an optional microphone, available separately) over an IP network.

Installation and set-up is easy, with a new Picture Setting File allowing the same settings to be applied to multiple cameras through a web interface from a laptop or PC. Convenient integration in multi-camera live events is also simplified with genlock support and an 'on-air' tally lamp.

Features

Excellent 4K images, even in low light

The sensitive 1/2.5-type Exmor R sensor captures high-quality 4K images with very low noise, even in dimly-lit environments.

Up to 80x zoom

Powerful zoom up to 80x (in FHD) allows frame-filling close-ups with fine details seen clearly. Responsive autofocus ensures that images stay clear and sharp, even at high zoom settings.

Wide viewing angle

Cover the whole scene in sports arenas and lecture theatres with a horizontal viewing angle of approx. 70°.

Support for NDI®|HX

NDI®|HX compatibility (via optional license) supports efficient IP-based live production, allowing flexible configuration with other networked NDI-enabled devices.

Multiple control protocols

PTZ and other camera functions can be controlled remotely via S700PTP, CGI and VISCA protocols.

Remote viewing

View pictures remotely over the Internet from a web browser, with support for RTSP.

Simpler installation, lower costs

A single IP cable carries camera power, video image, audio output and control signals to simplify installation and reduce cabling costs.

Ideal for live production

Genlock allows seamless multi-camera switching in live events. The camera's inbuilt tally lamp is ideal for live productions and reality shows. PTZ Trace Memory makes it even easier to film programs by recalling the usual camera works.

Image Sensor	1-Chip 1/2.5" CMOS Sensor
Horizontal Resolution (TV Lines)	1700 TV Lines
Sensor Resolution	3840 x 2160 (8.3 MP)
Gain	0 to 48 dB
Minimum Illumination	1.6 Lux at 1/30 Shutter Speed
Shutter Speed	1/1 to 1/10,000 sec
Max Digital Zoom	80x ( in 1080p)
Flip / Mirror Support	Image Flip
Optical Zoom Ratio	20x
Focal Length	4.4 to 88mm
Field of View	Horizontal: 70°
Maximum Aperture	f/2 to 3.8
Minimum Focusing Distance	Wide: 3.1" / 8.0 cm Telephoto: 31.5" / 80.0 cm
Focus Control	Autofocus Manual Focus
Output Formats	HDMI, RJ45: 3840 x 2160p at 23.98, 25, 29.97 fps 1920 x 1080p at 23.98, 25, 29.97, 50, 59.94 fps 1920 x 1080i at 50 fps 1280 x 720p at 50, 59.94 fps SDI: 1920 x 1080p at 23.98, 25, 29.97, 50, 59.94 fps 1920 x 1080i at 50, 59.94 fps 1280 x 720p at 50, 59.94 fps
Embedded Audio	SDI: 2-Channel HDMI: 2-Channel
Presets	256 via IP 100 via VISCA
Move Speed	Pan: 0.5 to 300°/sec Tilt: 0.5 to 126°/sec
Movement Range	Pan: 340° (-170 to 170°) Tilt: 110° (-20 to 90°)
Tally Light	Yes
Supported Control Protocols	IP RS-422 VISCA
Video Output Connectors	1 x BNC (3G-SDI) Female 1 x HDMI Type A Female 1 x RJ45 Female
Audio I/O	2 x 1/8" / 3.5 mm Stereo Mic/Line Level Input
Control Interface	1 x RJ45 (RS-422, VISCA) Input 1 x RJ45 (RS-422, VISCA) Output
Other I/O	1 x BNC (Sync) Input
PoE Support	PoE+ 802.3at
Power Connectors	1 x JEITA (10.8 to 13.2 VDC)
Power Consumption	25.5 W
Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Tripod Mounting Thread	1 x 1/4"-20 Female
Dimensions	7.88 x 6.99 x 6.24" / 200.2 x 177.5 x 158.4 mm
Weight	3.97 lb / 1.8 kg
