Sony CBK-55K ENG/EFP Build Up Kit for F5/55

Code: SOC/CBK-55K

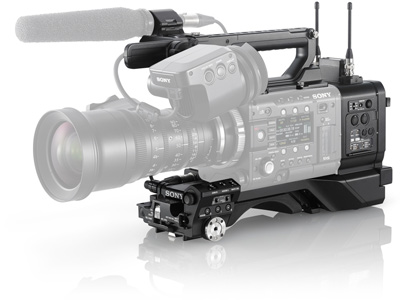

The CBK-55BK or "Doc-Dock" build up kit enables the F55 and F5 to expand into an EFP/ENG style camcorder. This system is designed for a single operator and provides conventional EFP/ENG operation similar to Sony XDCAM series camcorders.

For purchasing information

Enquire Now

Overview
Media

Greater flexibility of shooting style for applications such as documentaries, sports and news

The CBK-55BK build-up kit enables one-person operation of the PMW-F55 and PMW–F5 CineAlta cameras, making it easy to achieve a shooting style to suit a variety of needs while maintaining the familiar, easy-to-use interface features of traditional shoulder camcorders.

Good weight balance

Ergonomic design usable with any lenses and featuring an adjustable shoulder pad and front block control.

Two adjustable blocks for good weight balance

Shoulder pad has 33m adjustable range. Front block with all control buttons has 37mm adjustable range.

RAW recording functionality

The build-up kit also supports the AXS-R5 for 2K/4K 16bit RAW recording up to 240 fps in 2K.

Battery adaptor*

Battery adaptor includes DC input, Hirose 1.8A DC output and D-TAP 4.17A (50W) DC output*.
* D-TAP DC output not available when using AXS-R5.

Easy to attach/detach mechanism

The build-up kit features an easy to attach/detach mechanism that allows you to use the PMW-F55/F5 as a full shoulder camera or in the original style, giving you more flexibility in your style of shooting.

Support of wireless audio receiver

The build-up kit includes an audio section and input/output section at the rear side, offering support for wireless audio, with a familiar design common to main broadcast camcorders.

Lens support

Using standard PL lenses or common B4 2/3-inch broadcast lenses with the LA-FZB1 or LA-FZB2* will suit a wide variety of applications.
* When using the LA-FZB2, the original handle supplied with the camera needs to be used.

Supplied top handle

The new improved top handle comes with a microphone holder and viewfinder cable protection. It also provides cover for the fan input on the top of the body to protect against rain or dust. The handle is also able to attach the CBK-WA100 wireless adaptor without needing a USB connection.
