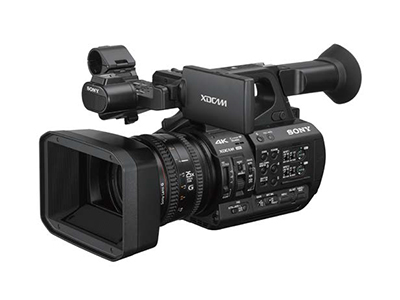

Sony’s PXW-Z190 is a 4K compact camcorder with enhanced usability to achieve various video expressions, making it ideal for independent operators shooting corporate material, event production and education. The camcorder’s newly developed three 1/3-type Exmor R CMOS image sensors capture RGB light independently and deliver 4K 50p/60p imagery with high resolution and a wide range of gradation. 4:2:2 10-bit ensures vivid and rich color content in High Definition (HD).
Easy To Use
The new model incorporates a 25x optical zoom lens to cover a wide focal range for multiple shooting requirements, with three independent lens rings to support intuitive operation. Using optical zoom lens with Digital Extender in an HD mode, a 50x zoom equivalent image without any picture degradation can be captured thanks to its 4K resolution sensor. Advanced Face Detection Autofocus (AF) includes the “Face Priority AF” and newly added “Face Only AF” functions. Combining with registration of the face, it helps to ensure a specific person within a group automatically stay in pin-sharp focus, extremely helpful in shooting an interview or lecture.
Sony’s Electronic Variable ND filter ensures greater exposure control by smoothly varying the density of the ND filter during shooting while maintaining resolution and depth of field.
Advanced Usability
The PXW-Z190 combines advanced usability and network solutions for enhanced workflow efficiency. The PXW-Z190 is HLG compatible to support Sony’s Instant HDR workflow, delivering beautiful HDR content quickly without the need for additional color grading. In addition, “Content Browser Mobile” software allows the camera to be operated remotely via a smartphone. With an optional license, the camcorder can be used with Sony’s cloud-based ENG service, “XDCAM air”. The new camcorder utilizes Sony’s Quality of Service (QoS) for live distribution of high-quality broadcast content using a Dual Link connection, multiplexing two cellular networks. File transfer and streaming are also possible using a wired or wireless LAN or LTE modem connection, allowing immediate editing and live monitoring.
Dual MI shoe enables the use of a wireless microphone1 and video light at the same time to achieve further flexibility. When using Sony’s UWP-D series wireless microphone, audio signals can be delivered without cabling – eliminating the risk of accidental disconnection and battery loss of the wireless audio receiver. Enhanced four-channel audio recording is supported by a combination of 2 XLR inputs and audio input via an MI shoe.
The camera records to most SD memory cards widely available, with dual card slots for simultaneous, relay and back-up recording.
The PXW-Z190 covers a wide range of main formats including XAVC-Long and DVCAM. In addition to these formats, MPEG HD 422 and MPEG HD are available with an optional license. Proxy 1080i up to 9Mbps can be utilized for 4K and HD simultaneous recording. Other features include 3G-SDI output and a remote terminal for compact multi-camera operation using Sony’s MCX-500 production switcher and RM-30BP controller.
