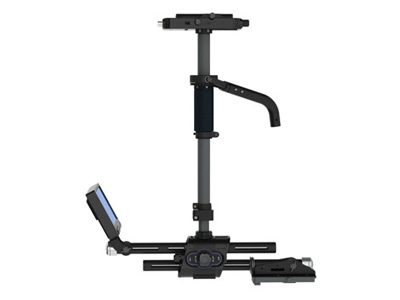

Steadicam Zephyr

Code:

NO LONGER AVAILABLE

Main Features

9 to 23lbs.(4 to 10.4kg) net camera weight
Adjustable Iso-Elastic Arm™
Telescopic carbon fiber post
Connector rich base and stage
Dual axis vernier adjustable stage
Unparalleled Inertial control and dynamically adjustable base

The Zephyr vest design incorporates adjustable and pivoting shoulder buckles to assure a new comfort level for extended use. Vest and pad covers are easily removed for cleaning or replacement offering extended durability.

The tools-free patented Iso-Elastic™ stabilizer Zephyr Arm supports 23lbs (10.4kg) of payload weight. The no-tools Arm /Vest interface allows for quick customization to the individual operator. “On the fly” weight adjustment frees the operator from dismounting the system to make changes. The open design of the arm has freedom of movement unknown in this weight class. The Zephyr adjustable and interchangeable arm post assembly is a feature usually found on more expensive systems.

The Steadicam Zephyr comes standard with a 7” Multi standard HD/SDI LCD 800 nit monitor that features enhanced image quality and a wide viewing angle, even under bright sunlight making it ideal for field production use. Input configurations include: Analog NTSC/PAL Composite Component/RGB with active loop through.

The Zephyr camera mounting stage was designed for enhanced mounting stability with standard HD and composite BNC video connectors, 2 x standard 3-pin LEMO power connectors and expandability ports for future accessories. The stage comes complete with a dual axis vernier adjustable mounting platform and extended camera mounting dovetail plate.

The Zephyr Sled Base features extendable rigid aluminum monitor and battery mounting rods, easily removable for compact storage or transport. A single mounting rod release allows for quick set-ups and ease of dynamic and inertial adjustments.

Other features

Tilting and rotationally indexed monitor mount
Inertial control and adjustability via standard Steadicam balance weights
Balance control via standard ¼-20 mounting hole at the base of the sled and additional balance weights
Standard dovetail base for mounting of future options or accessories
Standard HD BNC video connectors
Standard 3-pin LEMO power connectors for additional power output or input via optional 2nd battery mount
Optional 2nd battery mount for parallel 12V capability or 24V capability
Anton Bauer or V-lock battery compatible
Telescopic, indexed carbon fiber main post with internal safety line
No tools post clamp
7” HD/SDI Multi-standard LCD Monitor supplied as standard
No tools adjustable knurled gimbal handle with ergonomic handle
Standard Steadicam TANGO compatibility.

System Package Includes: (Specs Subject to Change)

Camera Mounting Chassis (Sled)
New X-Y Vernier Stage
Drop-in Dovetail Camera Mount
2x Lemo Power Connector on stage
2x BNC Connector on Stage (Composite and HD)
12/24V Via 1x 3-Pin Lemo
HD Capable Via 1x BNC
2-Section CF Post
AB Battery Mount (12/24V) (optional)
V-Lock Battery Mount (12/24V) (optional)
Dual Rod mounts for independent monitor and battery movement
Coiled Post Cable
24V Capability (via after sales battery mount)
1/4-20 Mounting for Base Weights
Inertial/Balance Control via Merlin weights
9 to 23lbs. (4 to 10.4kg) net camera weight
Lightweight Vest (Compact Vest optional)
Battery Mount (IDX V- mount, Anton Bauer)
Docking Bracket
12V Power Cable
3 ft. light weight BNC video cable
Dovetail Plate
Rolling Hard Case
BNC to RCA Adaptor
RCA to BNC Adaptor
2x Mounting screws
2x Locating Pin
2x Start Weight
2x Middle Weight
No-tools Gimbal Clamp
Tango Compatible
Warranty Card
EFP/SK Instructional DVD
Owner’s Manual

Video

Specifications

Arm	Frictionless, silky smooth Iso-Elastic™ Stabilizer Arm Huge 28″ (71cm) double-section lifting range Tool-free, one-touch lift adjustment for each section New spring design with rounded arm sections 9 to 23lbs. (4 to 10.4kg) net camera weight Two-section arm with quick release New Post assembly permists different size post length
Sled Stage:	Pre-loaded light-weight aluminum dovetail frame design for camera mounting stability Dual axis backlash compensated vernier adjustable stage Positive action camera plate clamp Drop in camera plate with safety stops and coarse fore-aft position adjustability Standard HD and composite BNC video connectors 2 x standard 3-pin LEMO power connectors 2 x standard connector expandability ports for future options or accessories Universal mounting design for future options and accessories Standard extended camera mounting dovetail plate
Sled Base	Extendable rigid aluminum monitor and battery mounting rods easily removable for compact storage or transport Single knob rod release for quick set-up’s Independently adjustable battery and monitor mounts for dynamic balance adjustability Tilting and rotationally indexed monitor mount Inertial control and adjustability via standard Steadicam Merlin type balance weights -Balance control via standard ¼-20 mounting hole at the base of the sled and additional balance weights Standard dovetail base for mounting of future options or accessories Standard HD BNC video connector and interchangeable monitor harness Standard 3-pin LEMO power connector for additional power output or input via optional 2nd battery mount Optional 2nd battery mount for parallel 12V capability or 24V capability Anton Bauer or V-lock battery compatible Telescopic, index carbon fiber main post with internal safety line No tools post clamp 7” HD/Composite LCD as standard
Gimbal	No tools adjustable knurled gimbal handle with ergonomic handle Standard Steadicam TANGO compatibility
Vest	New ergonomic lightweight design New removable vest and pad covers Proprietary arm/vest connector Stiff front spar Vertical adjustment of socket block for extended lens height, especially useful in low-mode Socket block mounts left or right Two basic vest sizes to fit any operator
