What's In The Box?
-
CM-S75F Monitor
- Cold shoe to 1/4" ball head monitor mount
- D-tap DC cable
- AC-DC power adaptor
With it's simple, single-joystick operation and a super bright 3,000nit screen the CM-S75F 7 inch monitor is the perfect on-board monitor for outdoor shooting. It also features SDI & 4K-HDMI input/output and the same host of professional monitoring tools found in SWIT's other CM Series monitors.
Key Features:
- Screen diagonal 7''
- Resolution 1920 x 1200
- Brightness 3000 cm/m²
- Supports 4K signals
- SDI Input/Output
- 4K HDMI Input/Output
- Waveform
- 3D LUTs
7-inch 3000nit Super Bright
Sunlight visible, PQ/HLG HDR
The CM-S75F adopts a 7-inch super high bright LCD, with a max brightness of 3000nit making it easily visible in bright sunlight.
The native resolution is Full HD 1920×1200 with a contrast ratio of 1200:1.
Input/Output Interfaces
3G-SDI & 4K-HDMI
The CM-S75F supports:
- 3G/HD-SDI input × 1
- 3G/HD-SDI loop output × 1
- HDMI 1.4 (4K30p) input × 1
- HDMI 1.4 (4K30p) loop output × 1
- 3.5mm embedded audio output
- SD card input for 3DLUT upload and Firmware upgrade
Single Joystick Operation
Simple single joystick operation makes operating the monitor a breeze:
- Up: Quick Zoom-in mode
- Down: Quick adjust backlight
- Long Down: Delete current scene
- Left/Right: Preset Scenes switching
- Long Left: Enter Menu system
- Long Right: Add a new scene
- Press down: Edit tools shortcuts / Confirm settings
Quick Zoom-in and Pan
Scroll the joystick up to zoom-in the image by 2x or 4x; and during zoom-in mode, press the joystick to easily pan the image up/down/left/right.
Anamorphic De-Squeeze
Enables de-squeeze of the image when shooting with anamorphic lenses,
Aspect Formats:
- 16x9
- 4x3
- x1.3 Anamorphic De-Squeeze
- x2.0 Anamorphic De-Squeeze
- x2.0 MAG Anamorphic De-Squeeze
Scene Layout Edit and Switch
Different from the traditional multi-buttons monitors, the CM-S75F adopts preset feature layouts and switching operations. You can add up to 8 layout scenes, then add 8 function shortcuts to each scene. Scroll the joystick left / right to switch between the layout scenes easily, instead of struggling with complex menu button operations.
Built-in De-log 3DLUT
CM-S75F has built-in HLG, PQ3000, PQ10000 HDR 3DLUTs and 30 different Rec709 De-log 3DLUT presets, including S-log2/3, V-log, C-log1/2/3, Log-C, J-log1, RedLog, BMD, FujiFilm, GoPro, DJI etc, to convert log mode to REC709 for viewing.
User 3DLUT upload
User 3DLUT cubes or calibration 3DLUT cubes can be uploaded to the monitor by SD card. Supports 17^3, 33^3 and 65^3 cubes. Max 16 user 3DLUTs can be stored.
Super False Color Exposure Assist
Besides normal false color assist, the CM-S75F supports more powerful Super False Color modes, including under-exposure / Over-exposure / 18 degree grey / Skin tone indications, to help you to get a correct exposure easily.
The exposure indicators are calculated for a variety of different cameras.
You can select the following log curves:
| SONY LC709A |
SONY S-Log2 |
| SONY LC709 |
SONY S-Log3 |
| Panasonic V709 |
Panasonic V-Log |
| BMD |
Canon C-Log2 |
| BMD 4K |
Canon C-Log3 |
| ARRI REC709 |
ARRI Log-C |
| RED RG3 |
RED LOGFILM |
| RED RG4 |
RED RL3G10 |
Power Input

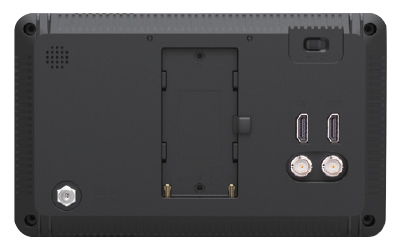

CM-S75F has a built-in NP-F DV battery slot, supports 11-17V DC-IN (5.5/2.1mm pole-tap), and provides an optional V-mount plate to install V-mount batteries.
The max power consumption is 18.8W while using the backlight at 3000nit.
