What's In The Box?
1x Power Pass-through Plate for DJI RS 4 1x Battery Plate – V Mount

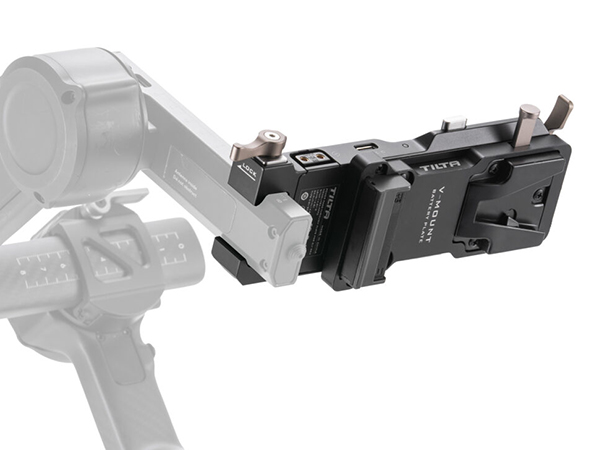

This Pass-through Plate replaces the original sled of the DJI RS2, RS3, RS3 Pro, RS4 and RS4 Pro in order to expand power options for cameras and accessories. Users can remove the original Ronin Plate by unlocking the height adjustment lever and sliding the plate off, then securing this accessory in the same fashion.
The V-Mount Battery Plate can then be connected in order to mount batteries underneath the plate.
The Plate features (2) P-Tap output ports, (1) 2 Pin Lemo Port, and (1) USB-C (45W 20V/2.25A), perfect for powering your camera via dummy battery cables or accessories like wireless follow focus motors. The 2 Pin Lemo port can also function as a power input, allowing users to power the plate via an external source with a 2 Pin Power Cable (not included).
This Plates improves camera balance and leads to better gimbal performance overall via a more optimized center of gravity which is especially useful when using longer lenses.
The Manfrotto Receiver on the top and Cold Shoe Receiver on the bottom are identical to the original which means DJI accessories, like their Manfrotto Quick Release Plate or Raven Eye Wireless Video Transmitter, are still compatible.
