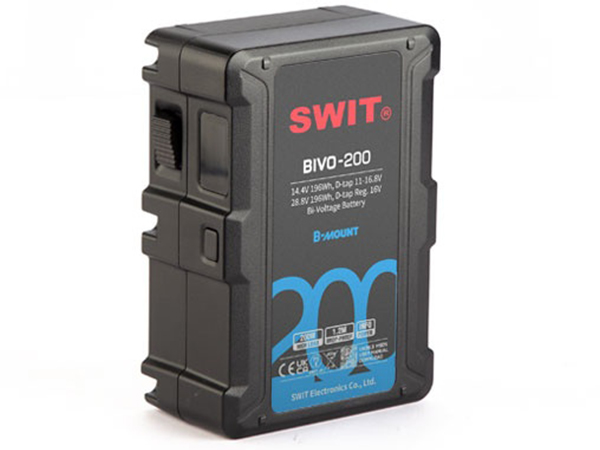

The Swit BIVO-200 is a 14.4V (10.8-16.8V) and 28.8V (22-33.6V) bi-voltage B-mount battery, designed for ARRI cameras and other devices compatible with standard voltage cameras and cine gear. The battery recognizes the ID pin resistor value of the B-mount plate and automatically outputs either 14.4V or 28.8V, eliminating any risk of misuse.
196Wh Capacity, 200W Load
The BIVO-200 battery has a large capacity of 196Wh, allowing it to run for more than 2 hours on an ARRI ALEXA 35 camera. It provides at least 200W of constant high load power for cine cameras and devices.
2x D-tap Power Outputs
The BIVO-200 features 2 D-tap power sockets. When the battery operates at 14.4V, the D-tap outputs 11-16.8V; when operating at 28.8V, the D-tap provides a regulated 16V, powering a variety of camera-top devices.
BIVO Series Family
The BIVO series of bi-voltage B-mount batteries includes 98Wh, 160Wh, 196Wh, and 290Wh models, offering different sizes and capacities for stabilizer-handheld lightweight or long-duration power needs.
OLED Power Info Display
The BIVO-200 battery is equipped with an OLED screen that displays battery status and power information, including output voltage, power percentage, remaining runtime, and protection warning codes if any abnormalities are detected.
100W Super Fast Charging
You can charge four BIVO-200 batteries simultaneously on the SWIT PC-P461B B-mount charger at 33.6V 3A, enabling 100W super-fast charging. The charger will fully charge four BIVO-200 batteries in approximately 3 hours.
LED Torch
Double-press the Power Check button to activate the LED torch on the rear of the battery, making it easier to locate the B-mount plate in dark production environments. Double-press the button again to turn off the light, or it will automatically switch off after 30 seconds.
1.2-meter Drop Protection
The BIVO-200 battery is designed to withstand drops from heights of up to 1.2 meters at any angle, ensuring strength and reliability for filmmakers.
