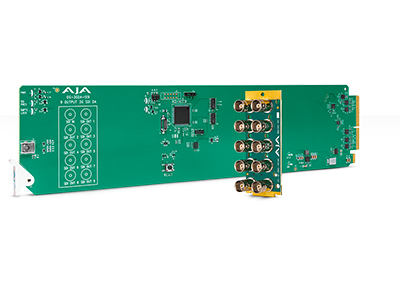

AJA 1x9 3G-SDI Reclocking DA openGear Card
Code: BLO/AJA-OG-3GDA-1x9
The OG-3GDA-1x9 is a state of the art, openGear compatible, 3G-SDI distribution amplifier. The incoming 3G-SDI signal is reclocked and distributed to each of the nine 3G-SDI outputs, allowing the same signal to be sent to multiple destinations simultaneously.
For purchasing information
Enquire Now
Key Features
- Video Formats: 150 Mbps - 3 Gbps, format agnostic
- Input: 1x 3G-SDI BNC
- Outputs: 9x 3G-SDI BNC
- Support for HDR – High Dynamic Range video
- Monitor via openGear DashBoard
- Passes embedded audio, all ancillary data including closed caption and time code
- Input Present and Input SMPTE Lock LEDs
- Automatic input equalization and output reclocking
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
- Power: 2.5 watts max per card
- Hot swappable
- Compatible with OGX, OG3 and DFR-8321 openGear frames
The OG-3GDA-1x9 is a state of the art, openGear compatible, 3G-SDI distribution amplifier. The incoming 3G-SDI signal is reclocked and distributed to each of the nine 3G-SDI outputs, allowing the same signal to be sent to multiple destinations simultaneously.
Designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, new DashBoard software support on Windows, macOS and Linux offers remote control and monitoring of the openGear architecture and provides convenient and industry standard configuration, monitoring and control options over a PC or local network.
openGear Overview
For critical broadcast applications, AJA openGear compatible converter cards provide the highest levels of quality and reliability for use in openGear frames including the new AJA OG-X-FR. AJA offers cards for infrastructure, HDMI/SDI conversion, Fiber conversion and scaling. All new AJA openGear are DashBoard software compatible, allowing easy configuration and control.
openGear Compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.
