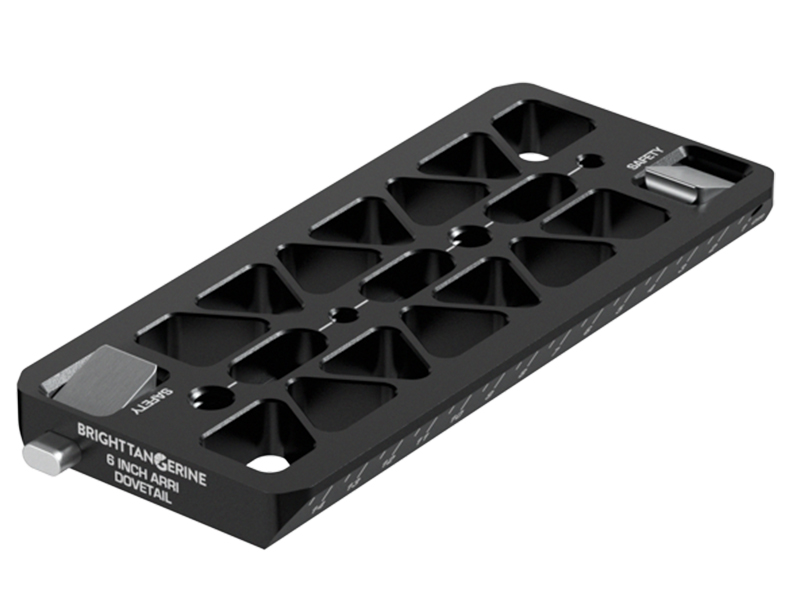

Delivering reliable dovetail compatibility for nearly any camera system, this ultra-compact 6” ARRI Standard Dovetail is perfect for setups requiring a smaller footprint. It integrates seamlessly with any ARRI-standard dovetail clamp or baseplate, offering exceptional performance while maintaining a low profile.

Its compact design makes it ideal for rigs mounted on carts, car mounts, and stabilisers like Steadicam, gimbals, or other camera stabilisation systems.

Equipped with 3/8”-16 and 1/4”-20 threads, as well as the option to use UNC screws for mounting to non-standard surfaces, it offers unmatched versatility for creative setups.

Compact ARRI Compatibility

This 6” dovetail is fully compatible with all ARRI-standard baseplates, bridgeplates, and clamps, making it an essential addition to your kit. Whether transitioning between gimbals, tripods, or other support systems, the Create ARRI Standard Dovetail ensures dependable performance and ease of use across your rigging components.

Smooth Balancing with Precise Travel

With 110mm of travel between safety stops, the 6” dovetail provides ample space for balancing your camera setup, even in more compact configurations. Perfect for users who require precision in tight setups without unnecessary bulk.

Versatile Mounting Options

Equipped with 3x 3/8″-16 and 2x 1/4″-20 threaded mounting points, this dovetail supports various accessory configurations. Additionally, the non-threaded inner channels can be used with standard 1/4″-20 UNC screws to mount the dovetail securely to surfaces like wood or cheese plates, offering unmatched adaptability.

Durable, Lightweight Build

Manufactured from CNC-machined aluminium, this dovetail balances strength and portability. The weight-reducing cut-outs and hard anodised finish provide durability while keeping the rig lightweight and easy to handle.

Built-In Safety Features

The front and rear safety stops are designed for quick press-release operation, ensuring your camera stays firmly in place during use. This feature enhances security and makes adjustments faster and stress-free.

Instructions

The Create ARRI Standard Dovetail (6”) ships as a standalone unit, with no assembly required.

Attaching the Dovetail to a Tripod Plate, Gimbal Plate, or Other Camera Support

1. Align the dovetail’s mounting holes with the corresponding threaded holes on your tripod plate, gimbal plate, or other support.

2. Use the appropriate screws (3/8″-16 or 1/4″-20, as required by your support equipment) to secure the dovetail.

3. Tighten the screws firmly with a compatible tool (such as a hex key or screwdriver) to ensure the dovetail is securely attached.

Attaching a Camera with Baseplate to the Dovetail

1. Slide the ARRI standard baseplate attached to your camera onto the dovetail.

2. Once the baseplate is in position, tighten the locking mechanism on the baseplate to secure it to the dovetail.

3. To remove your camera, slide to the end of the dovetail before pressing the safety stop and releasing the camera.

Mounting the Dovetail onto Wood or Other Surfaces

1. Position the dovetail’s non-threaded channels over the desired surface.

2. Use 1/4″-20 UNC screws (or compatible screws) to secure the dovetail through the channels. If necessary, use washers to compensate for the channel’s thickness.

3. Tighten the screws securely, ensuring the dovetail is firmly mounted to the surface.

4. Check the stability of the installation before attaching any camera or equipment.

Channel Dimensions:

Hole Width: 6.4mm

Outer Width: 10mm

Thickness: 3mm

Compatibility

By using universal camera mounting threads, the 6” ARRI standard dovetail is compatible with a broad range of camera systems; as well as standard-issue dovetail bridgeplates, baseplates and clamps.
